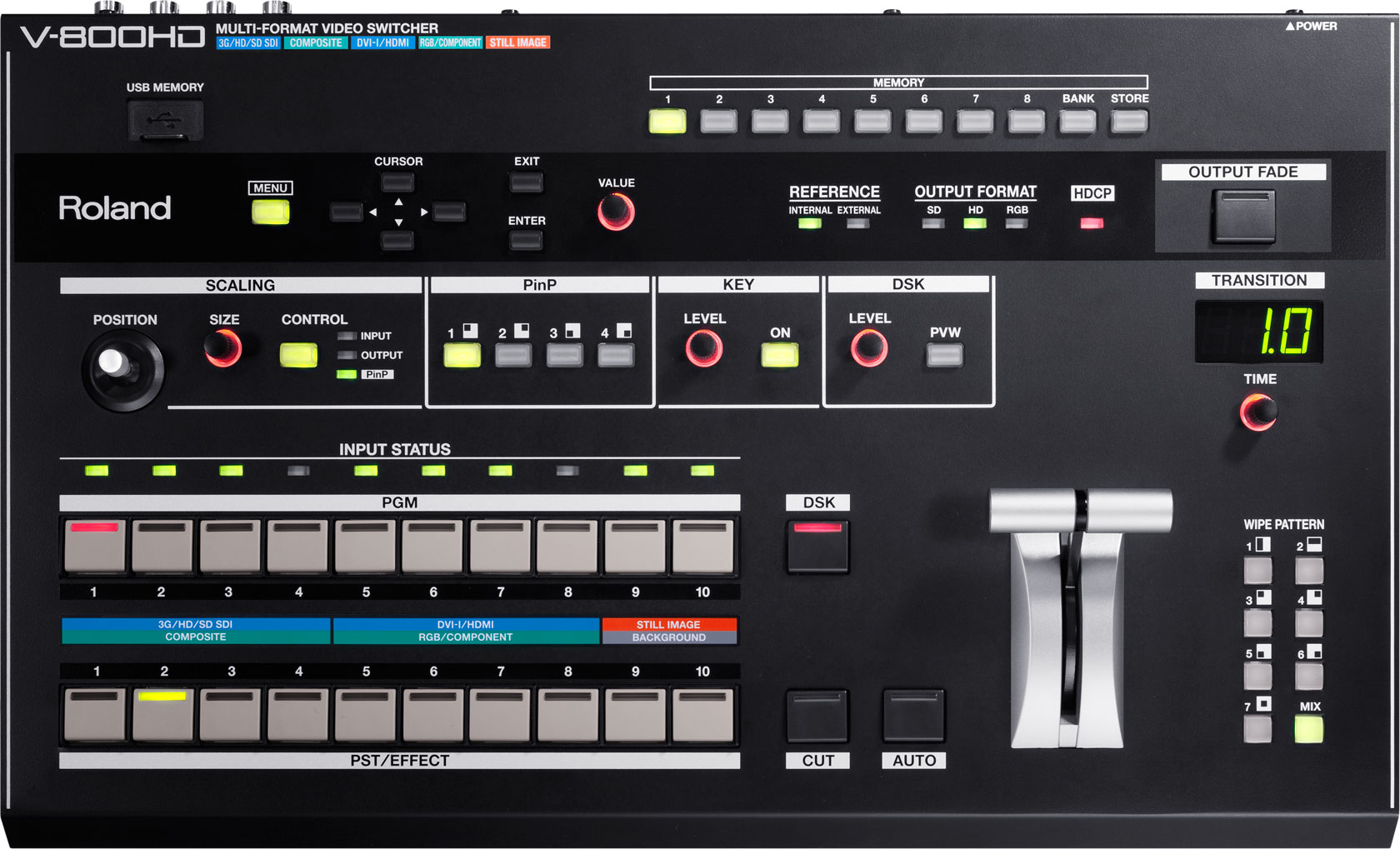

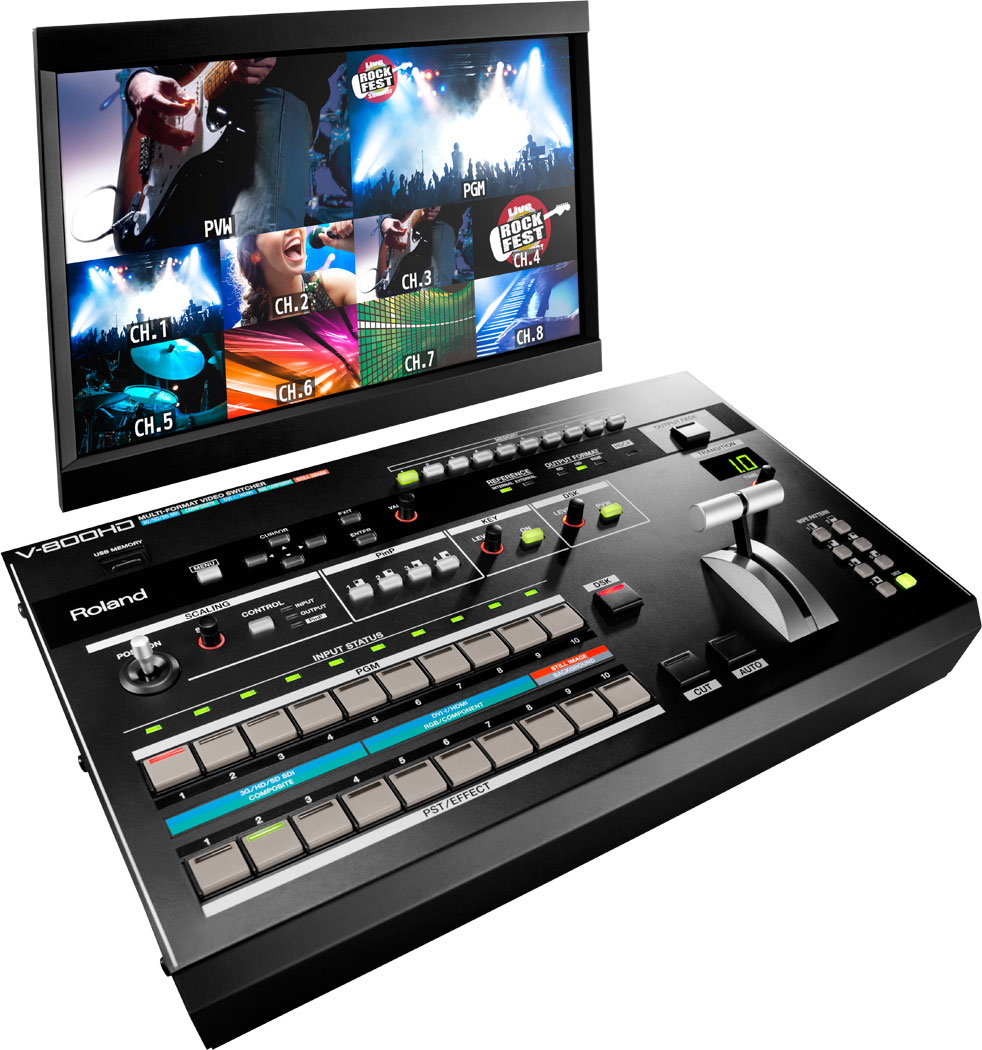

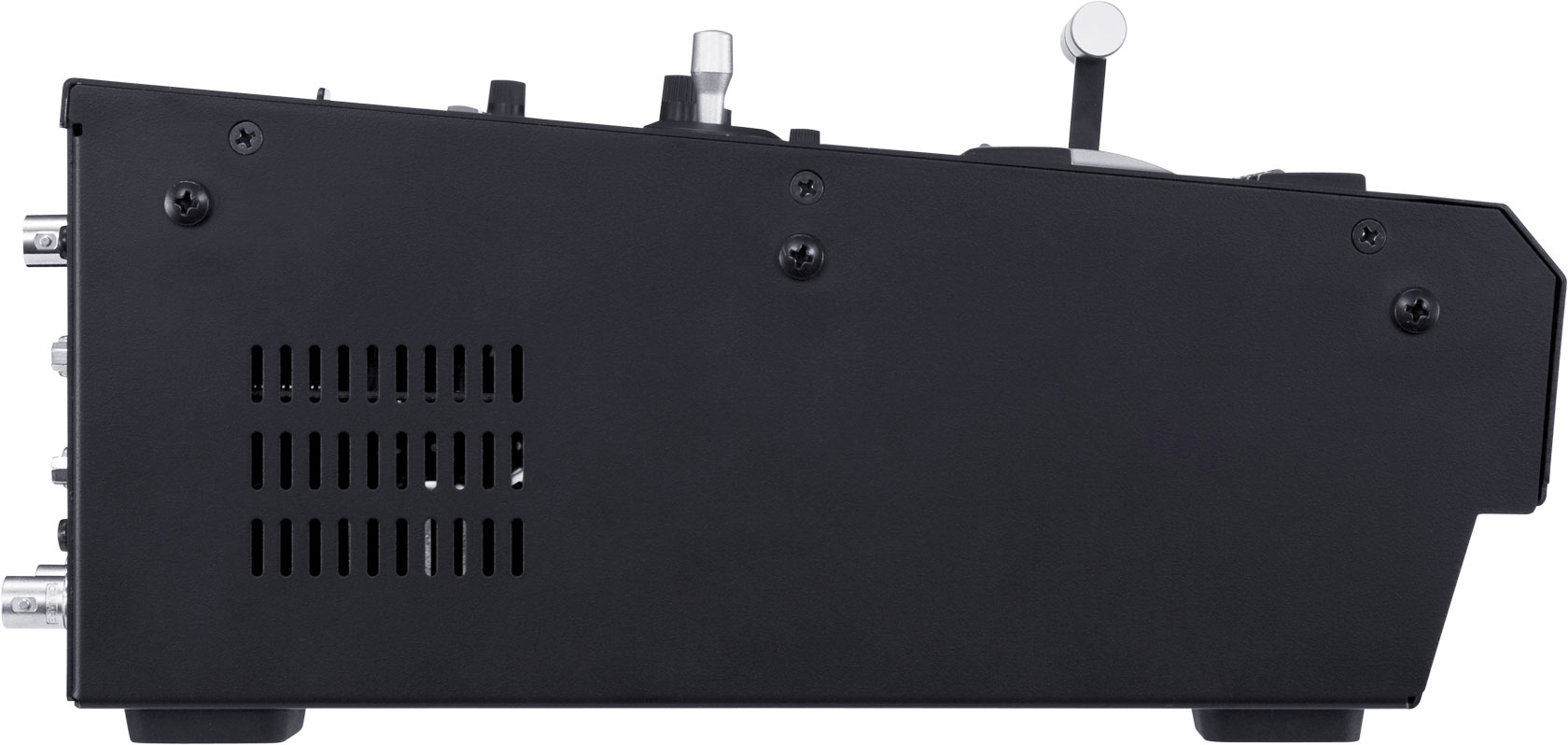

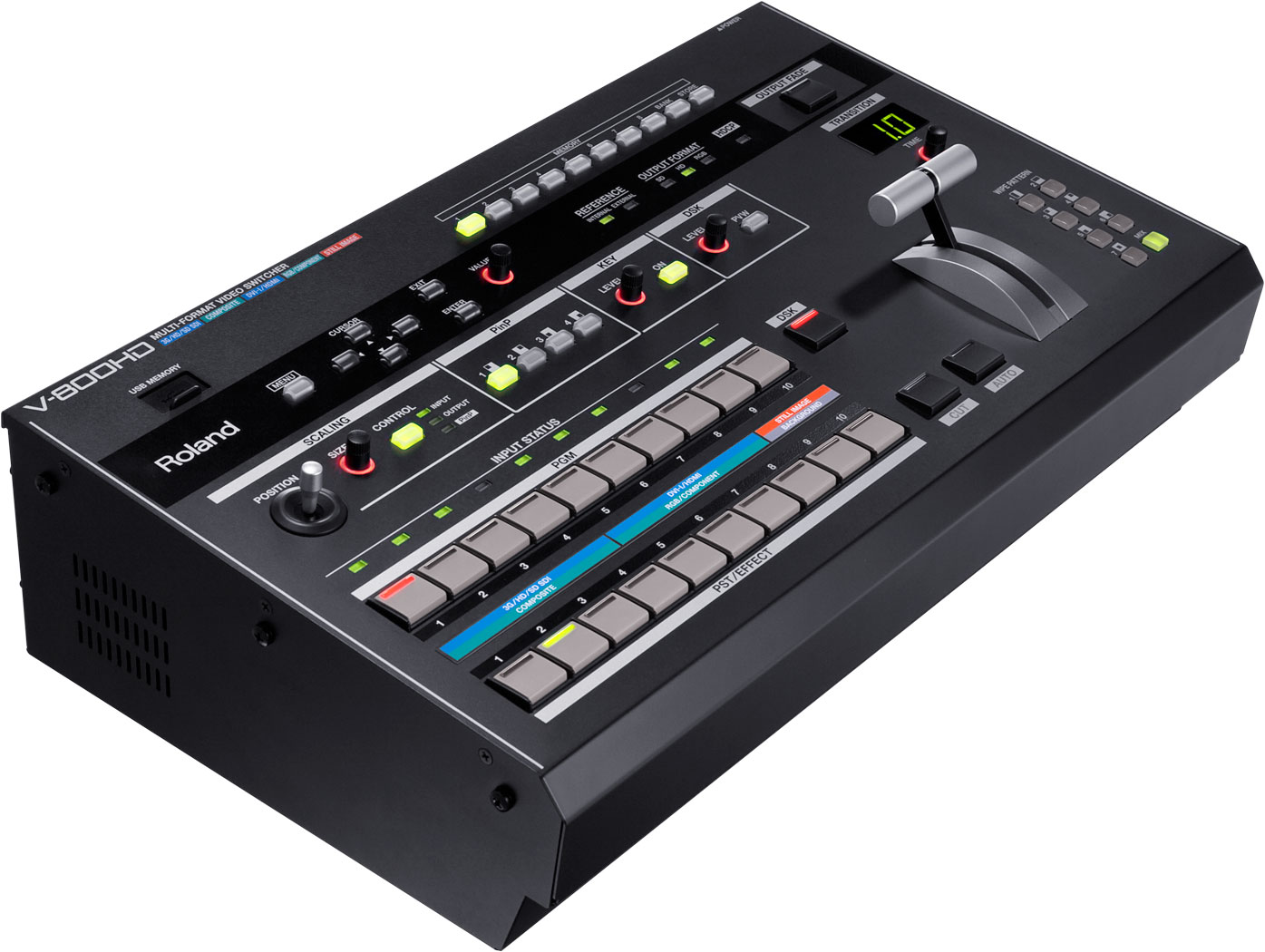

Roland V-800HD Multi-format Video Switcher

Roland V-800HD Multi-format Video Switcher

features

 - 8 Channel, 16 Input (4 SDI, 4 Composite, 4 DVI-I/HDMI, 4RGB/Component)
 - 6 Output (2 SDI + 2 DVI-D/HDMI + RGB/Component + Composite)
 - 4:4:4/10-bit Internal Processing
 - 1 M/E (Key, PinP) + DSK
 - Built-in frame synchronizers and scalers on all inputs
 - SDI support: 3G, HD, and SD
 - DVI-D / RGB / HDMI support
 - Input status LEDs
 - HDCP support
 - Live access to two still-image sources
 - 10 assignable cross-points
 - Multiviewer monitor output (Switch between Y/Cr/Cb and RGB modes)

TECH SPECS

VIDEO PROCESSINGProcessing

Y:Pb:Pr, 4:4:4, 10-bit

SUPPORTED FORMATSVideo

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p * The SDI input can input the same frame rate as a setup menu setting.

PC

640 x 480/60Hz *1, 800 x 600/60Hz *1 *3, 1024 x 768/60Hz *1, 1280 x 768/60Hz *1, 1280 x 1024/60Hz *1, 1366 x 768/60Hz *1, 1400 x 1050/60Hz *1, 1600 x 1200/60Hz, 1920x1080/60 Hz, 1920 x 1200/60Hz *2* Conforms to VESA DMT Version 1.0 Revision 10*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz *2 Reduced blanking*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation.

Still Image

Windows® Bitmap File (.bmp) * Maximum 1920 x 1200 pixels, 24 bit per pixel, uncompressed

INPUT/OUTPUT LEVEL AND IMPEDANCEComposite

1.0 Vp-p, 75 ohms

Analog HD/RGB

0.7 Vp-p, 75 ohms (H, V : 5 VTTL)

INPUT CONNECTORSSDI (3G/HD/SD)

BNC type x 4 * Conforms to SMPTE 424M (Level-A), 292M, 259M-C

DVI-I/HDMI

DVI-I type x 4 * Select DVI-A or DVI-D/HDMI using menu per channel

Analog Video HD

Component (Mini D-Sub 15 pin type) x 4 * Combined use with Analog RGB

Analog Video SD

Composite (BNC type) x 4 * Select Composite or SDI using menu per channel

Analog RGB

Mini D-Sub 15 pin type x 4 * Combined use with Analog HD (Component) * Select DVI-D/HDMI or Analog RGB using menu per channel

OUTPUT CONNECTORSSDI (3G/HD/SD)

BNC type x 2 * Conforms to SMPTE 424M (Level-A), 292M, 259M-C

DVI-D/HDMI

DVI-D type x 2 HDMI x 1 (for multi-view monitor)

Analog Video HD

Component (Mini D-Sub 15 pin type) x 4 * Combined use with Analog RGB

Analog Video SD

Composite (BNC type) x 1

Analog RGB

Mini D-Sub 15 pin type x 1 * Combined use with Analog HD (Component)

OTHER CONNECTORSTally

Mini D-Sub 15 pin type x 2 * Input (max): 12V, 200 mA Open collector Type

Reference

BNC type (IN, THRU) * Black Burst (Sync to frames), Bi-Level, Tri-Level

MIDI

5 pin DIN type (IN, OUT/THRU)

RS-232C

D-Sub 9 pin type x 1

USB port (host)

A type x 1 (for USB memory)

EFFECTSTransition

Cut, Mix, Wipe (9 patterns)

Composition

PinP, DSK, Chroma Key, Luminance Key, External Key

Others

Output Fade, Output Freeze

OTHERSPower Supply

AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)

Power Consumption

75 W

Accessories

Power Cord, Rack Mount Angle (2), Input Template, Owner’s Manual

SIZE AND WEIGHTWidth

482 mm19 inches

Depth

274.6 mm10-13/16 inches

Height

115.9 mm4-10/16 inches

Weight

5.5 kg12 lbs. 3 oz.
