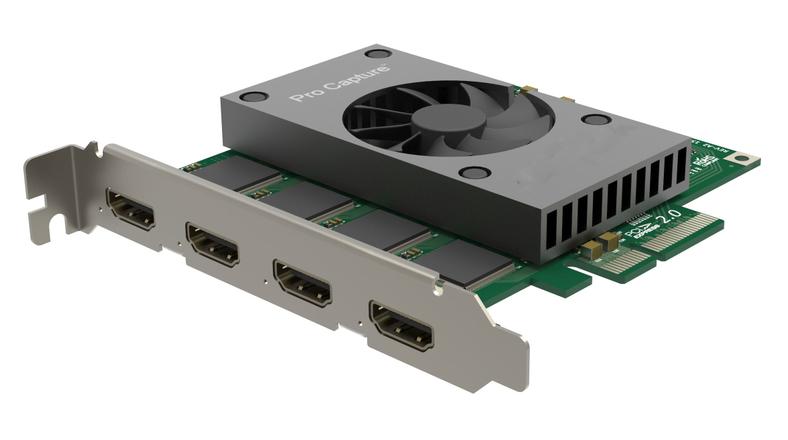

HD400Pro 4 Channels HDMI Capture Card

MINE 4 Channels HDMI Capture Card

TECH SPECS

Input Features

·         Support for input video resolutions up to 2048×2048 pixels

HDMI Specific Features

·         225MHz HDMI receiver

·         Adaptive HDMI equalizer support for cables lengths up to 30M

·         Support for customized EDID

·         Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames

·         Full colorimetry support

·         Support for8/10/12-bit color depths

·         Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling

·         Support for up to 8-channel IEC60958/IEC61937 audio streams

·         Support for extraction of audio formation information & channel status data

·         Support for extraction of video timing information

·         Support for extraction of 3D format information

·         Support for extraction of Sony/Canon DSLR time code

Video Output Formats

·         Support for output image resolutions up to 2048×2048 pixels

·         Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )

·         Support for 4:2:0 8-bit output formats: NV12, I420, YV12

·         Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY

·         Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32

·         Support for 4:4:4 10-bit output formats: V410, Y410

·         More output formats are supported via Pro Capture SDK for DirectKS

Video Processing Features

·         Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one

·         Full 10-bit video processing

·         Video cropping

·         Video scaling

·         Video de-interlacing

·         Wave

·         Blend top & bottom field

·         Top field only

·         Bottom field only

·         Video aspect ratio conversion

·         Auto or manual selection of input aspect ratio

·         Auto or manual selection of output aspect ratio

·         Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

·         Video color format conversion

·         Auto or manual selection of input color format & quantization range

·         Auto or manual selection of output color format, quantization range & saturation range

·         Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats

·         Support for Limited or Full quantization range

·         Support for Limited, Full & ‘Extended gamut’ saturation range

·         Video frame rate conversion

·         Video OSD composition

·         Support for PNG OSD image (up to 2048×2048)

·         Support for dynamic loading of RGBA OSD image via SDK

Input Interfaces

·         4x HDMI type A

·         DVI 1.0

·         HDMI 1.4a

Output Interfaces

·         PCIe Gen2 x4

Multiple Cards per System

·         Support for multiple cards plugged to one system

·         On-board rotary switch to set card number, with 16 positions from 0 to F

·         System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on

·         The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Output Streams

·         Unlimited output streams for any one input channel

·         Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

Ultra Low Latency Support

·         Latency of 64 video lines

·         Partial notification mode in SDK

Timestamp & A/V Synchronization

·         Hardware based 100ns high resolution clock

·         Audio frames (192 audio samples) & video frames are stamped with hardware clock

·         Hardware clock can be synchronized across cards (via SDK)

Video Output SG-DMA

·         ~400MB/s per channel DMA bandwidth in PCIe 2.0 system

·         ~200MB/s per channel DMA bandwidth in PCIe 1.0 system

·         Support for auto detection of Intel tiled GPU surface

·         Support for DirectGMA for AMD video adapter chipsets

·         Support for GPUDirect for Nvidia video adapter chipsets

SDK

·         Pro Capture SDK for DirectShow for easy integration (Windows)

·         Pro Capture SDK for DirectKS for maximum flexibility & performance (Windows)

Windows Driver Tweaks

·         All options can be controled by three levels of registry key: global level, product level and device level

·         Video, Audio, Crossbar filter names can be customized via registry keys

Firmware Upgrade

·         Multiple cards in one system can be upgraded simultaneously

·         Cards can be upgraded without a system power shutdown (In most cases, even a reboot is not needed)

LED Indicator

·         Status LEDs indicate the working state of each channel: idle, input signal locked, memory failed or FPGA configuration failed.

Form Factor

·         Normal profile PCIe x4 Add-on Card

·         112.15mm x 102.92mm (without PCI bracket)

Power Consumption

·         Max current at 12V ~1.1 A

·         Max current at 3.3V ~0.9 A

·         Max power consumption ~15.9 W

Working Environment

·         Operating temperature: 0 to 40 deg C

·         Storage temperature: –20 to 70 deg C

·         Relative Humidity: 5% to 90% non-condensing

Supported OS

·         Windows7/8/8.1/2008/2008 R2/2012 (x86 & x64)

·         Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)

Supported APIs

·         Windows

·         DirectShow

·         DirectKS

·         Wave API/DirectSound/WASAPI

·         Linux

·         V4L2

·         ALSA

Supported Software

·         VLC

·         VirtualDub

·         OBS

·         xSplit

·         vMix

·         VidBlaster

·         Wirecast

·         Microsoft Media Encoder

·         Adobe Flash Media Encoder

·         Any other DirectShow/V4L2 encodin
