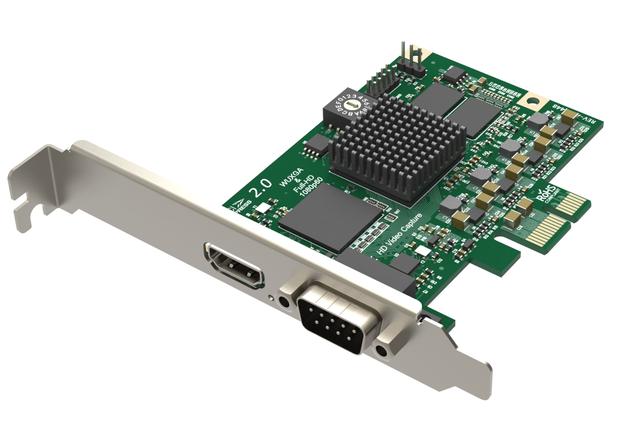

HD100Pro 1 Channel HDMI + DB9 Capture Card

MINE HD100Pro 1 Channel HDMI + DB9 Capture Card

Tech Specs

Input Features

·         Auto scan of video input sources when there is no signal input to the currently selected input source

·         Manual selection of video input source

·         Auto selection of linked (embedded) audio input source when the video input source changes

·         Manual selection of audio input source

·         Support for standard crossbar based on video input source selection

·         Support for input video resolutions up to 2048×2048 pixels

Component Specific Features

·         12-bit ADC

·         Support for RGB & YCbCr (YUV) color formats

·         Support for ‘Seperated sync’, ‘Composite sync’, ‘Sync-on-green’ (SOG), ‘Sync-on-luminance’ (SOY)

·         Support for DMT, CEA, CVT, GTF video timings

·         Input signals up to 165MHz pixel rate are digitized with 1:1 sampling

·         Input signals over 165MHz pixel rate can be digitized with horizontal sub-sampling (resulting in some image quality loss – NOT officially supported)

·         Auto detection of RGB & YCbCr color formats

·         Auto or manual sampling phase adjustment

·         Auto horizontal alignment

·         Support for customized video timings

·         Support for customized video resolutions for CVT/GTF timings

HDMI Specific Features

·         225MHz HDMI receiver

·         Adaptive HDMI equalizer support for cables lengths up to 30M

·         Support for customized EDID

·         Support for extraction of AVI/Audio/SPD/MS/VS/ACP/IRSC1/ISRC2/Gamut InfoFrames

·         Full colorimetry support

·         Support for8/10/12-bit color depths

·         Support for RGB 4:4:4, YCbCr 4:4:4, YCbCr 4:2:2 color sampling

·         Support for up to 8-channel IEC60958/IEC61937 audio streams

·         Support for extraction of audio formation information & channel status data

·         Support for extraction of video timing information

·         Support for extraction of 3D format information

·         Support for extraction of Sony/Canon DSLR time code

YC & Composite Specific Features

·         12-bit ADC

·         Support for NTSC, PAL and SECAM standards

·         Auto detection of video input standard

Input Interfaces

·         HDMI type A

·         DVI 1.0

·         HDMI 1.4a

·         DB9

·         YC (S-Video)

·         Composite video

·         Analog audio (L+R)

·         Component video

Output Interfaces

·         PCIe Gen2 x1

Video Output Formats

·         Support for output image resolutions up to 2048×2048 pixels

·         Support for output frame rates up to 120fps. (Actual output frame rate can be limited by PCIe bandwidth, and at higher image resolutions – above 1280×1024 – by the pixel clock of the on-board video processing hardware. eg. Max frame rate at 1920×1080 = ~80fps. )

·         Support for 4:2:0 8-bit output formats: NV12, I420, YV12

·         Support for 4:2:2 8-bit output formats: YUY2, YUYV, UYVY

·         Support for 4:4:4 8-bit output formats: V308, IYU2, V408, BGR24, BGR32

·         Support for 4:4:4 10-bit output formats: V410, Y410

·         More output formats are supported via Pro Capture SDK for DirectKS

Video Processing Features

·         Two video processing pipelines with ~180Mpixels/s processing bandwidth for each one

·         Full 10-bit video processing

·         Video cropping

·         Video scaling

·         Video de-interlacing

·         Wave

·         Blend top & bottom field

·         Top field only

·         Bottom field only

·         Video aspect ratio conversion

·         Auto or manual selection of input aspect ratio

·         Auto or manual selection of output aspect ratio

·         Three aspect ratio conversion modes: Ignore (Anamorphic), Cropping or Padding (Letterbox or Pillarbox)

·         Video color format conversion

·         Auto or manual selection of input color format & quantization range

·         Auto or manual selection of output color format, quantization range & saturation range

·         Support for RGB, YCbCr 601, YCbCr 709, YCbCr 2020 color formats

·         Support for Limited or Full quantization range

·         Support for Limited, Full & ‘Extended gamut’ saturation range

·         Video frame rate conversion

·         Video OSD composition

·         Support for PNG OSD image (up to 2048×2048)

·         Support for dynamic loading of RGBA OSD image via SDK

Multiple Cards per System

·         Support for multiple cards plugged to one system

·         On-board rotary switch to set card number, with 16 positions from 0 to F

·         System hardware device tree will display “01: Pro Capture AIO” when rotary switch is set to 1, and so on

·         The video and audio device names displayed in your software will include the card number (set by the rotary switch)

Multiple Output Streams

·         Unlimited output streams for any one input channel

·         Independent cropping, aspect ratio, color format, resolution, frame rate, de-interlacing and color adjustment settings for each individual stream

Supported OS

·         Windows7/8/8.1/2008/2008 R2/2012 (x86 & x64)

·         Linux (V4L2 kernel driver source code under NDA, supports x86, x64 & arm architecture)

Supported APIs

·         Windows

·         DirectShow

·         DirectKS

·         Wave API/DirectSound/WASAPI

·         Linux

·         V4L2

·         ALSA

Supported Software

·         VLC

·         VirtualDub

·         OBS

·         xSplit

·         vMix

·         VidBlaster

·         Wirecast

·         Microsoft Media Encoder

·         Adobe Flash Media Encoder

·         Any other DirectShow/V4L2 encoding/stre
