LKV8x8 HDbitT Video over IP Modular Matrix

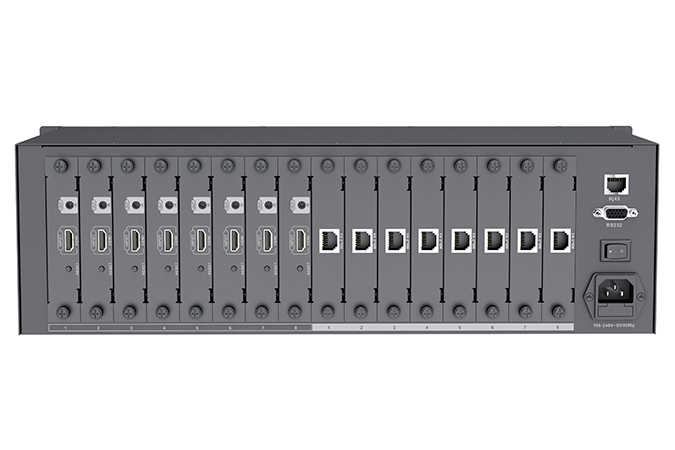

LKV8X8 HDbitT over IP modular matrix allows both digital and analog video signal transmit together over single CAT5/5e/6 or optical fiber cable, it transmits 1080P video signals over single CAT5/5e/6 up to 120m,or over sc optical fiber cable uo to 20km. You can change the HDMI input card to SDI input card, VGA input card or DVI input card, and change the HDbitT CAT6 output card to HDbitT fiber output card, it supports mixture transmission to match your engineering requirements .

Features

 - Routes any of 8 video sources to any of 8 displays over SC optical Fiber Cable or CAT5/5e/6

 - Compatible with HDbitT Receivers

 - Support HDMI/SDI/DVI/VGA signal input and output

 - HDMI and HDCP compaliant

 - Supports resolutions up to 1080P

 - Transmission distance up to 120m over CAT5/5e/6
 - Transmission distance up to 20km over SC optical fiber cable

 - Support IR pass back
 - Support RS232 signal control

 - Support IR Remote

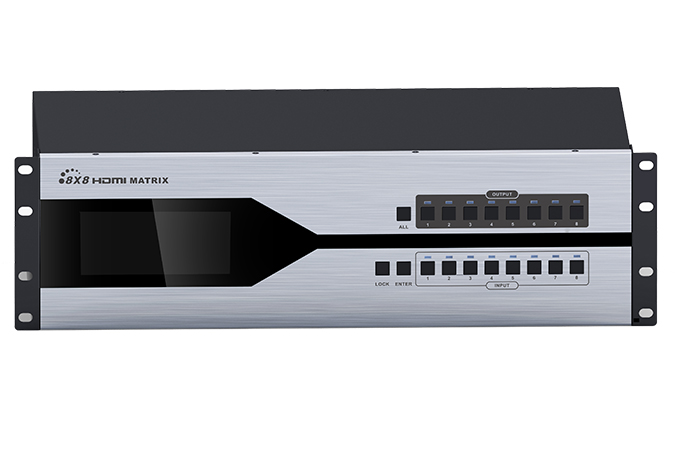

 - Support pannel button to switch the signal display

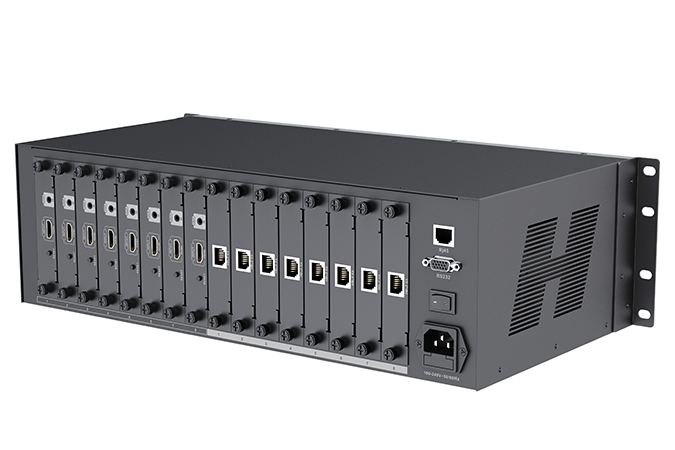

 - 3U rack-mountable design

 - Weight: 6kg

 - Dimension:483(L) x 240.5(W) x 133(H) mm

Tech Specs

Input

Interface：Support 8 ways video signal input，HDMI，DVI，SDI and VGA input card are available

Signal Standard：

HDMI Version：HDMI1.3
HDCP Version：HDCP1.2

Support HDMI Resolutions：480i@60Hz, 480p@60Hz, 576i@50Hz, 576p@50Hz, 720p@50/60Hz,1080i@50/60Hz, 1080p@50/60Hz

Support  VGA Resolutions：1920x1080@60Hz；1680x1050@60Hz；1440x900@60Hz；1360x768@60Hz；1280x1024@60Hz；1280x960@60Hz；1280x720@60Hz；1024x768@60Hz；800x600@60Hz；

Support SDI Resolutions： SD-SDI : 480i@60Hz， 576i@50Hz；HD-SDI : 720P@50/60Hz， 1080i@50/60Hz， 1080P@24/25/30Hz；3G-SDI： 1080P@50/@60Hz

Support DVI Resolutions：DVI 1.0

Output

Interface：Support 8 ways video signal output，HDbitT CAT6 and HDbitT FIBER output card are available

Transmission distance up to 120m over CAT5/5e/6, match with HDbitT CAT5/5e/6 Receivers

Transmission distance up to 20km over SC optical fiber cable, match with HDbitT  optical fiber Receivers

Operation Environment
Working Temperature：0~ 40℃

Nature
Dimension: 483(L) x 240.5(W) x 133(H) mm
Power Consumption：60W
Weight：6KG
Color：Black
Power supply：  100~ 240V~ 50/60Hz
