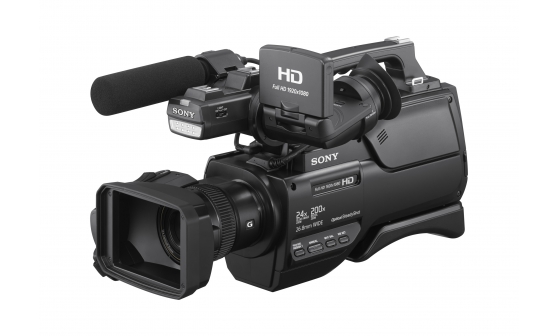

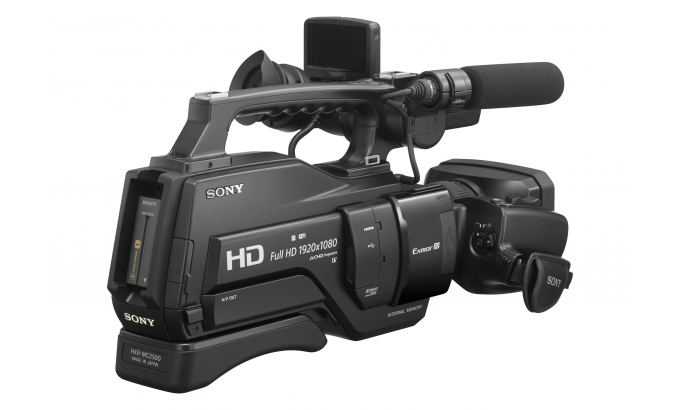

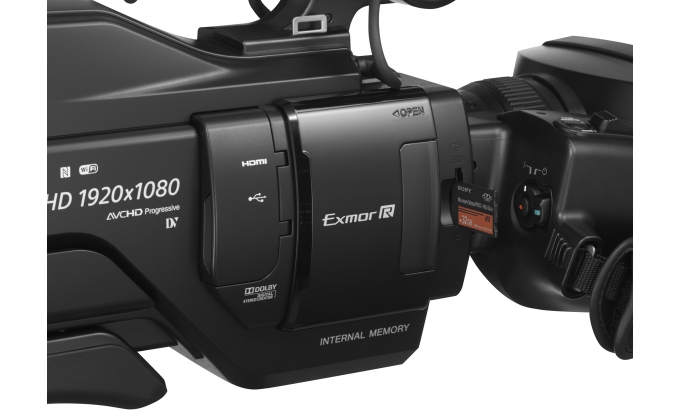

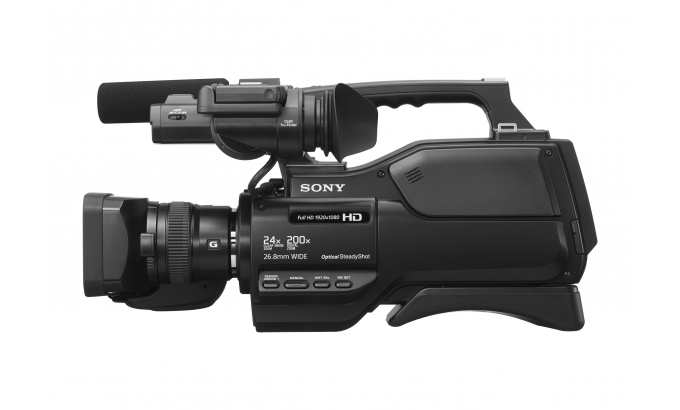

Sony HXR-MC2500 Full HD Camera

Sony HXR-MC2500 FD Camera

Features

 - 1/4" Exmor R CMOS Sensor
 - 26.8mm Equivalent Wide-Angle Lens
 - SDXC/Memory Stick Card Slot
 - Records SD in DV AVI File
 - OLED Viewfinder with 1.44 Million Dots
 - Flip-Up 3" LCD with 921k Dot Resolution
 - Wi-Fi Connectivity with NFC
 - Internal 32GB Flash Memory
 - Sony Multi-Interface Hot Shoe
 - BNC Connector on Composite Output

Tech Specs

General

• Mass Approx 2.80kｇ (body)
• Approx. 6lb 2.8oz (body)
• Approx. 3.10kg (with lens hood,Lens Cap, Microphone, Eyecup, Shoe Cap, NP-F570 battery)
• Approx. 6lb 13.3oz (with lens hood, Lens Cap, Microphone, Eyecup, Shoe Cap, NP-F570 battery)
• Dimensions (W x H x D) 265.0 ｘ 235.0 ｘ 455.0 mm (body)
• 10 1/2 x 9 3/8 x 18 inches (body)
• 265.0 ｘ 240.0 ｘ 460.0 mm (With the accessories (lens hood, Lens Cap, Microphone, Eyecup), excluding the grip belt and including the projecting parts)
• 10 1/2 x 9 1/2 x 18 1/8 inches (With the accessories (lens hood, Lens Cap, Microphone, Eyecup), excluding the grip belt and including the projecting parts)
• Power Requirements 7.2V (battery pack); 8.4V (AC Adaptor)
• Power Consumption Approx. 3.3 W (with EVF On, Video light Off)
• Approx. 3.3 W (with LCD monitor On, Video light Off)
• Operating Temperature 0°C to 40°C (32°F to 104°F)
• Storage Temperature -20°C to +60°C (-4°F to +140°F)
• Battery Operating Time (Continuous Recording Time)" Approx. 285 min with NP-F570 battery (video light Off)
• Approx. 135 min with NP-F570 battery (video light On)
• Recording Format (Video) - HD MPEG-4 AVC/H.264 AVCHD 2.0 format compatible
• Recording Format (Video) - SD DV(AVI)
• Recording Format (Audio) - HD Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz
• Recording Format (Audio) - SD Linear PCM 2ch, 16bit, 48kHz
• Recording Frame Rate (NTSC) - HD PS(28Mbps) 1920 x 1080/60P, 16:9
• FX(24Mbps) 1920 x 1080/60i, 30p,24p, 16:9, 1280 x 720/60p, 16:9
• FH(17Mbps) 1920 x 1080/60i, 30p,24p, 16:9, 1280 x 720/60p, 16:9
• HQ(9Mbps) 1280 x 720/60p, 16:9
• Recording Frame Rate (NTSC) - SD DV(25Mbps) 720 x 480/60i, 16:9, 4:3
• Recording Frame Rate (PAL) - HD PS(28Mbps) 1920 x 1080/50P, 16:9
• FX(24Mbps) 1920 x 1080/50i, 25p, 16:9, 1280 x 720/50p, 16:9
• FH(17Mbps) 1920 x 1080/50i, 25p, 16:9, 1280 x 720/50p, 16:9
• HQ(9Mbps) 1280 x 720/50p, 16:9
• Recording Frame Rate (PAL) - SD DV(25Mbps) 720 x 576/50i, 16:9, 4:3
• Recording/Playback Time Approx.145min(Internal Media, PS, LPCM)
• Approx.170min(Internal Media, FX, LPCM)
• Approx.225min(Internal Media, FH, LPCM)
• Approx.380min(Internal Media, HQ, LPCM)
• Approx.140min(Internal Media, DV, LPCM)
•

• Lens Mount Fixed
• Zoom Ratio 12x (optical), servo/manual
• Focal Length f = 2.9-34.8mm
• equivalent to f=26.8-321.6mm on 35 mm lens(16:9)
• equivalent to f=32.8-393.6mm on 35 mm lens(4:3)
• Iris F1.8 - F3.4 auto/manual selectable
• Focus AF/MF selectable, 10 mm to ∞ (Wide), 800 mm to ∞ (Tele)
• Image Stabilizer ON(Standard/ACTIVE)/OFF selectable, shift lens
• Filter Diameter M37 mm

• Imaging Device (Type) 1/3.95 type(4.6mm) back-illuminated Exmor R CMOS Sensor
• Imaging Device (Pixel Count) Approx.6590K pixels
• Effective Picture Elements Approx.6140K pixels(16:9)/Approx.4600K pixels(4:3)
• Minimum Illumination 1.4lux(MAN setting : SS 1/25sec , Iris F1.8 , Gain 33dB)
• 0.7lux(MAN setting : SS 1/12sec , Iris F1.8 , Gain 33dB)
• Shutter Speed 1/6 - 1/10,000
• White Balance Preset（Indoor, Outdoor, Color temperature set range:2300-15000K)
• Onepush A, B, Auto selectable
• Gain 0, 3, 6, 9, 12, 15, 18, 21, 24, 27, 30, 33 dB, Auto Selectable

• Composite Output BNC (x1)
• Audio Output RCA pin
• USB mini-AB USB2.0 Hi-speed/mass-storage/Host
• Headphone Output Stereo mini jack φ3.5mm (x1)
• Speaker Output Monaural
• DC Input DC jack
• Remote Stereo mini mini jack φ2.5mm (x1)
• HDMI Output Type A (x1)
• Accessory Shoe Multi Interface Shoe (x1), Cold Shoe (x2)
• Monitoring
• Viewfinder 1.0cm (0.39 type) OLED Approx. 1.44M dots
• Built-in LCD Monitor 7.5cm (3.0 type) Approx. 921K dots.
• Built-in Microphone
• Built-in Microphone Omni-directional stereo electret condenser microphone.
• Media
• Internal Memory Flash Memory 32GB
• Type Memory Stick Pro Duo™ and SD/SDHC/SDXC compatible
• Built-in LED Light
• Luminous intensity 1.0m / Approx.200 lx, 0.5m / Approx.800lx
• Lighting angle Approx. 30°
• Color temperature Approx. 5,500K
• WiFi
• Supported format IEEE 802.11 b/g/n
• Frequency band 2.4 GHz bandwidth
• Security WEP/WPA-PSK/WPA2-PSK
• NFC NFC Forum Type 3 Tag compliant
• Supplied Accessories
• Supplied Accessories Lens hood (1)
• Lens cap (1)
• Shoe Cap (1)
• EVF eyecup (1)
• Microphone (1)
• Wind screen (1)
• Video Light Diffuser (1)
• USB adaptor cable (1)
• Rechargeable battery pack (NP-F570) (1)
• CD-ROM Operating instructions in PDF (1)
• Operating instructions (1)
• AC-L100C AC adaptor (1)
• AC Cable (1)
