HDMI to SDI/HD-SDI/3G SDI Converter (HDMI support HDCP)

HDMI to SDI/HD-SDI/3G SDI Converter

HDCP Support (YLC368 )

Features

 - Operation at 2.970Gbit/s, 2.970/1.001Gbit/s, 1.485Gbit/s, 1.485/1.001Gbit/s and 270Mbits/s
 - Supports SMPTE 425M (Level A and Level B), SMPTE 424M, SMPTE 292M, SMPTE 259M-C
 - Equalized and re-clocked loop output
 - Integrated audio de-embedder for a maximum of 8 channel, 48 kHz audio
Auto video mode detection (3G/SD/HD)
 - Conversion from SMPTE 425M level B to Level A 1080p 50/59.94/60 4: 2: 2 10-bit
 -  Connect with other units to extend your signal over long distances
 - Simultaneous display with SDI and HDMI signals
 - Supports signal transmission distances of up to 300M for SDI signals, 200M for HD signals and 100M for 3G signals
Note: Cable tested with Belden 1694A. Operating distances may vary if used with another type of cable.

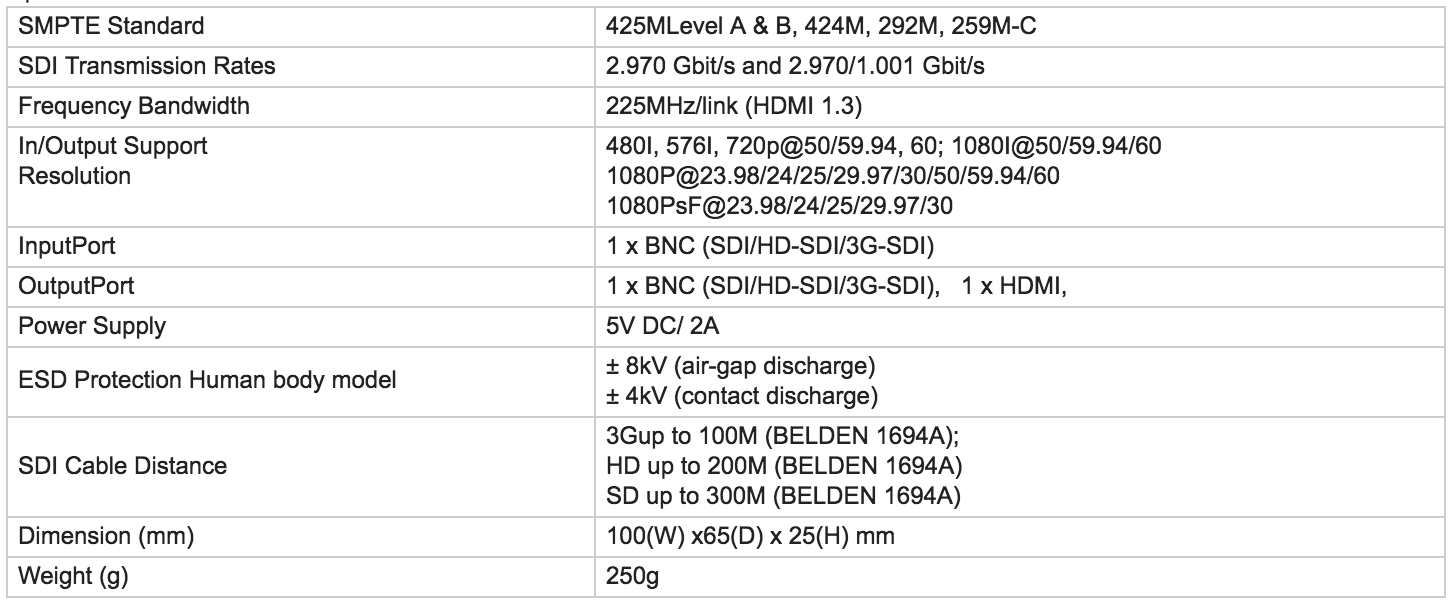

Tech Spect
