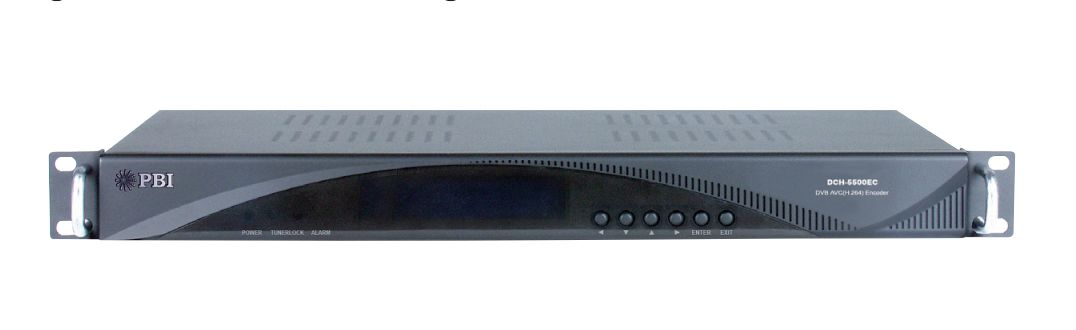

DCH-5500EC High Performance Single Channel H.264 HD Encoder

DCH-5500EC High Performance Single Channel H.264 HD Encoder

Feature

 - Support MPEG-2 HD1/SD or H.264 HD/SD video encoding
 - MPEG-1 Layer II, or AAC LC / HE AAC audio encoding
 - Multiple inputs HDMI, SDI, YPbPr, RCA(CVBS + L/R Audio), and S/PDIF
 - Support 2 pairs of analog stereo audio encoding2
 - Video encoding bit rate from 250Kb/s to 25Mb/s
 - Video resolutions rescaling
 - Multiple video resolution including 1080i, 720p, 576i and 480i
 - Support VBR and CBR encoding mode
 - ASI I/O and TS/IP output
 - Support 10/100M TS/IP SPTS
 - Optimized video pre-processing algorithm
 - Remote Control and Supervision by HTTP WEB

Tech Specs

Video Compression
Video Resolution 1080i (1920/1440×1080) @25Hz, 29.97Hz, 30Hz: SMPTE 292M
720p (1280×720) @50Hz, 59.94Hz, 60Hz: SMPTE 292M
480i (720×480) @29.97Hz: SMPTE 259M
576i (720×576) @25Hz: SMPTE 259M
Compression Standard H.264: MP@L4.1, HP@L4.1 (HD);
MP@L3.0, HP@L3.0 (SD)
MPEG-2: MP@HL (HD);
MP@ML (SD)
Aspect Ratio 4:3/16:9 selectable
Video Encoding Bit Rate 250Kb/s-20Mb/s
Audio Compression
Audio Compression MPEG-1 Layer II, AAC LC, HE AAC
Audio Input SDI or HDMI Embedded Audio, Analog audio,and SPDIF
Audio Sampling Rate 32Kb/s, 44.1 Kb/s, 48 Kb/s
Audio Compression Bit Rate 192-384 Kb/s (MPEG-1 Layer II), 32-192Kb/s (AAC)
MUSICAM Stereo, Dual Mono, Left Mono, Right Mono
Audio/Video Input Interface
Analog Audio RCA (L/R)
Digital Audio 1×S/PDIF
Analog Video YPbPr
Digital Video HD-SDI, 1×BNC Female, 75Ω
HDMI 1×HDMI 1.3
TS over IP
Connector Type 1×RJ-45, 10/100M for TS/IP
Useful Bit Rate 70Mb/s for 10/100M
Protocol UDP / RTP, Multicast / Unicast, Source Encoder
ASI Output
Connector Type 1×BNC Female, 75Ω
Output Bit Rate ≤ 99Mb/s
Packet Length 188 / 204 Bytes
Signal Level 800mVpp±10%
Source Encoder
Control & Monitoring
Connector Type 1×RJ-45, 10/100 Base-T, for equipment control
Remote Control HTTP Web interface
Local Control LCD display and 6-key keypad
Software Upgrade Built-in FTP loader and Telnet
Physical
Dimensions 483mm×498mm×44mm
Net weight 5Kg
Power supply AC90 ~ 250V 50Hz/60Hz
Power Consumption 15W
Operating Temperature 0 ~ 45℃
Storage Temperature -10 ~ 60℃
Humidity 10 ~ 90%, non-condensed
Certification
EMC: EN 55024:1998+A1:2001+A2:2003, EN 55022:2006+A1:2007,
EN 61000-3-2:2006, EN 61000-3-3:2008
FCC: Part 15 Class B
LVD: EN 60950-1:2006 + A11:2009
