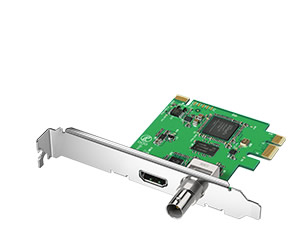

DeckLink Mini Recorder - PCIe capture for HD-SDI and HDMI

DeckLink Mini Recorder  PCIe capture for HD-SDI and HDMI

Record uncompressed 10-bit video from SDI and HDMI video sources. DeckLink Mini Recorder switches between SD and HD video formats and is perfect for building ingest servers or other video solutions where you need to capture only in a low profile card! Includes two PCIe shields for both full height and low profile slots.

Tech Specs

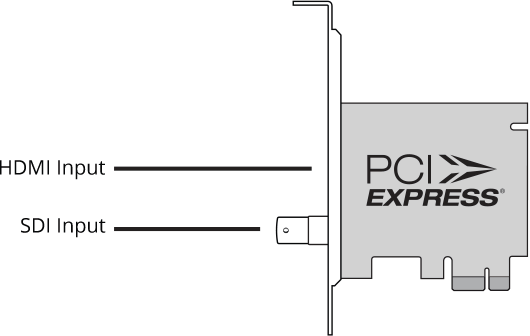

SDI Video Input

1 x 10-bit SD/HD switchable

HDMI Video Input

1 x HDMI type A connector.

SDI Audio Input

8 channels embedded in SD and HD.

HDMI Audio Input

8 Channels embedded in SD and HD.

Computer Interface

PCI Express 1 lane, compatible with 1, 4, 8 and 16 lane PCIe slots.

Codecs

Supports: AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10-bit 4:2:2.
