KILOVIEW KV-CV190 HDMI&VGA&AV to SD/HD/3G-SDI Converter

จำหน่าย KILOVIEW KV-CV190 HDMI&VGA&AV to SDI Video Converter

KV-CV190 HDMI&VGA&AV to SDI  converter is a professional converter which is applied for single HDMI or VGA or AV(CVBS) interface to high definition SDI interface. The KV-CV190 be integrated SDI's transmitter and HDMI's receiver, HDMI can be easily convert to SDI, separate and convert the audio then embed to SDI to achieve audio and video transmit simultaneously, or embed the external audio of VGA,AV(CVBS) to SDI to achieve audio and video transmit simultaneously, the user can designated the SDI output format compulsively to adapt to different enviorment.
KV-CV190 is applied for HDMI system of the subway platform, HDMI system of the train platform, long-distance HD video signal transmit of military maneuver, long-distance HD video signal transmit of security monitoring, long-distance HD video signal transmit of Large-scale performances, also suitable for various HD video applications etc..

Features

Support HDMI output format:
480i,576i,480p,576p,720p50/59.94/60,1080p24/25/29.97/30,1080i 50/59.94/60,1080p 50/59.94/60, be compatible up to 1920x1080@60Hz VGA format resolution
support VGA resolution format up to 1920x1080@60Hz, be compatible to various standard VESA SD resolution and normal no-VESA SD resolution
SDI support SMPTE 425M(A lever and B lever) output , SMPTE424M, SMPTE292M,SMPTE259M-C
With dual SDI signal output
Support HDMI DDC function and HDCP digital content protection
Support all format dissymmetric conversion
Automatically embed SDI audio signal to HDMI signal
SDI output can be chose compulsively output
With long-distance monitoring by remote
Supply power and signal format indicator, user can real-time monitor conveniently

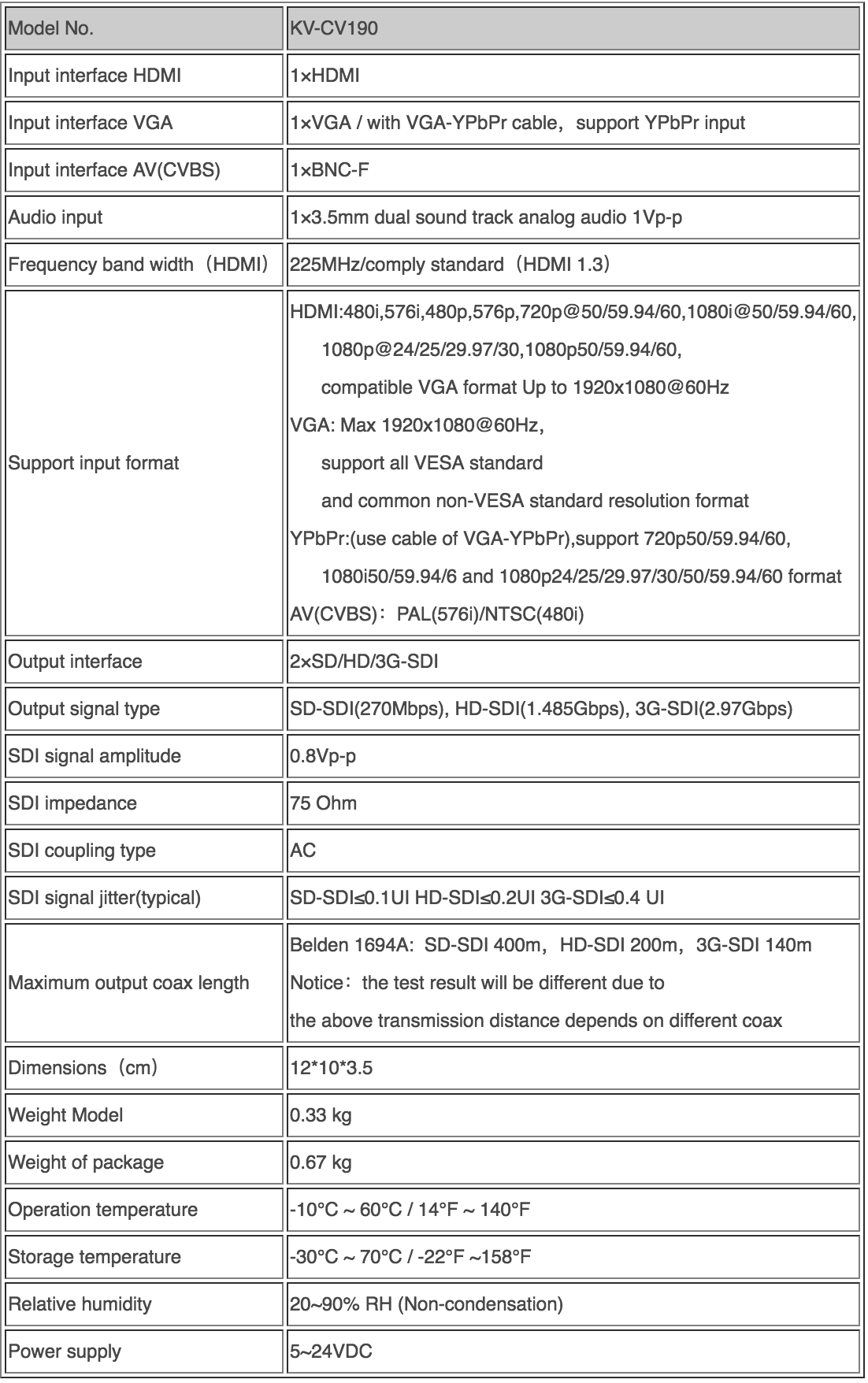

Tech Specs

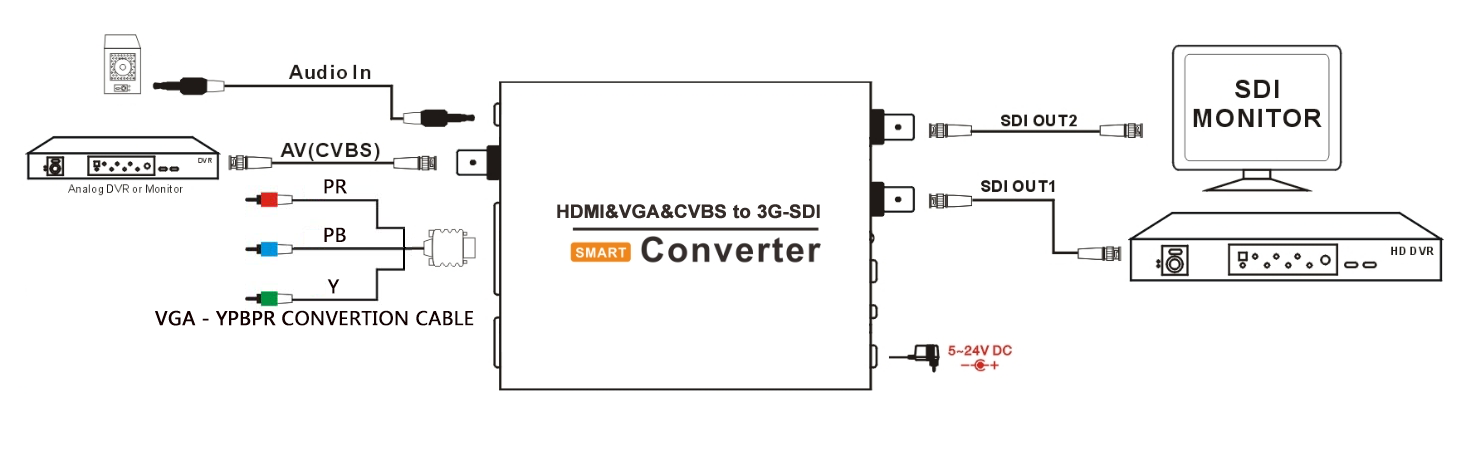

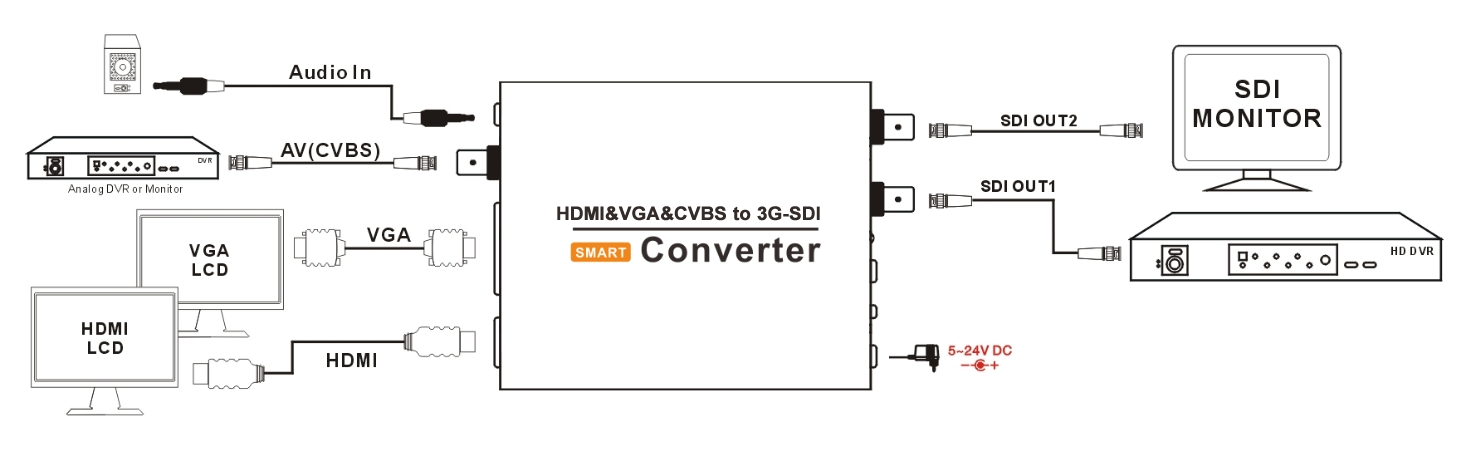

HDMI&VGA&AV to SD/HD/3G-SDI Application Note


YPbP to SDI Application Notes
