H.264 HDMI Video Encoder / Support HDCP protocol

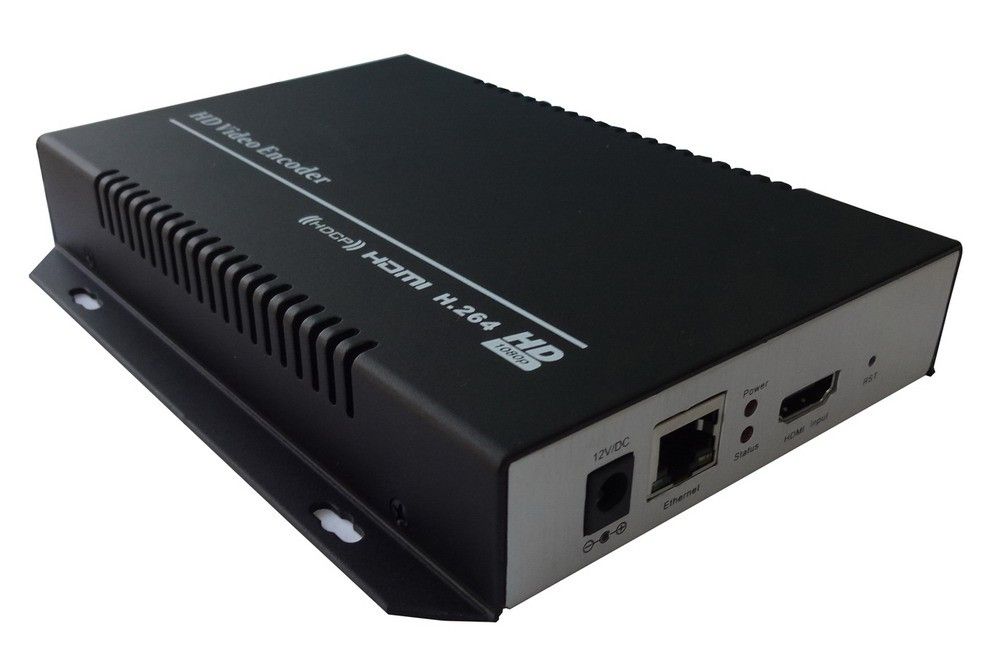

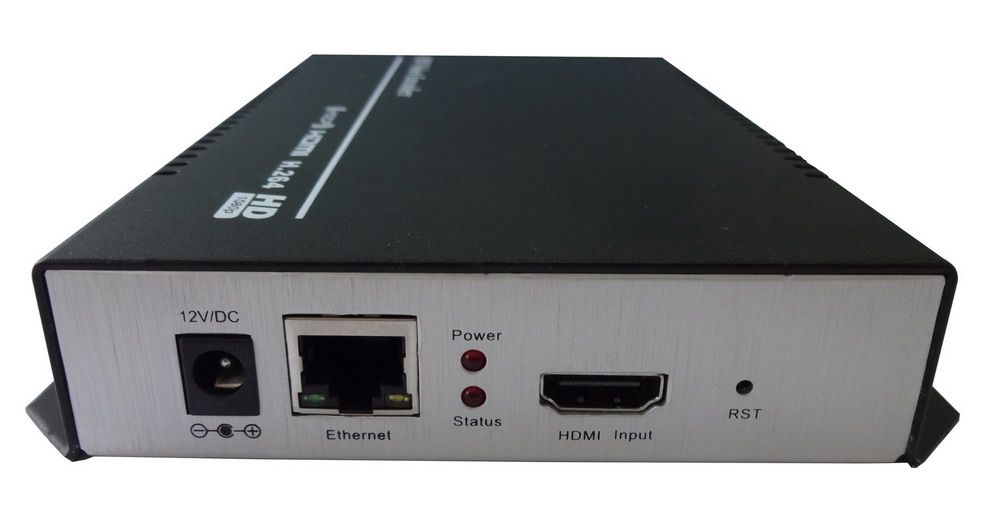

OPR-NH100 H.264 HDMI Video Encoder (HDCP Support)

          HD Video & Audio encoding device with powerful functionality, which supports input HDMI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@60fps for main stream, 720@60fps for main and 2nd stream, etc., works with RTMP / HTTP / RTSP / UDP / RTP Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.

Features

 - Embedded HiLinux System, stable and effective.
 - Friendly Web Control UI, default IP is 192.168.1.168.
 - Support RTMP, RTSP, UDP, HTTP, HLS, FLV and ONVIF Protocols.
 - Support output 2 RTMP (main stream & 2nd Stream) to different Media Server.
 - Main Stream Support output resolution - 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.
 - Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
 - Output Stream bitrate adjustable.
 - Support firmware upgrade.
 -  IP address can be set by yourself.
 -  Support remote control via router port forward.
 - 3U chassis available, max supports 16Pcs Encoder installed.

Tech Specs
