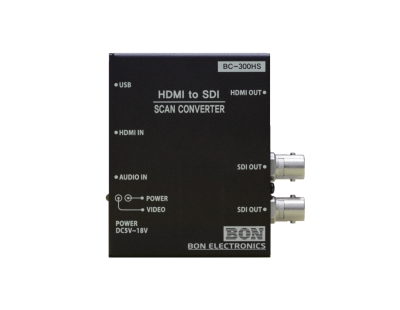

BC-300HS BON HDMI to SDI Scaling Converter Audio Out

BC-300HS BON HDMI to SDI Scaling Converter Audio Out

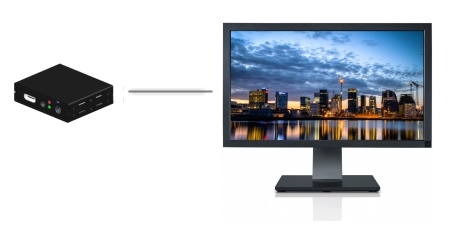

Mini Converter HDMI-to-SDI which offers up-down conversion and closed caption display.

Features

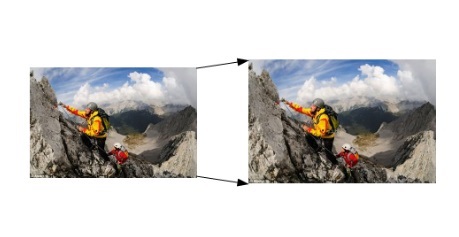

Up/Down Scaling

 - Scales up/down input signal to a desired format such as 1080i.

Accurate Clear Conversion

 - By the meticulous tailoring as same as BON monitors, users can watch clear pictures without delay or noise.

TECH SPECS

INPUT - 1 x HDMI HDMI (with HDCP 1.1)

OUTPUT - 2 x SDI SDI Out (3G/HD/SD)

FORMAT

 - Video Formats (HD) 1920x1080 (60p, 59.94p, 50p), 1920x1080 (60i, 59.94i, 50i, 30p, 29.97p, 25p, 24p, 23.98p), 1280x720 (60p, 59.94p, 50p) SD : NTSC, PAL

 - Video Formats (SD) NTSC, PAL

 - Video Formats (PC)

640X350(85p), 640X400(85p), 640X480(59.94p,60p,72p,75p,85p), 740X400(85p), 800X600(56p,60p,72p,75p,85p), 848X480(60p), 1024X768(50p,59p,60p,70p,75p,85p), 1152X864(75p), 1280x768(60p,75p,85p), 1280x960(60p,75p,85p), 1280x1024(60p,75p,85p), 1360x768(50p,60p), 1400x1050(50p,59p,75p), 1600x1200(50p,59p,60p), 1680x1050(50p,60p), 1920x1200(60p)

GENERAL

 - Dimensions 60.8 x 76.80 x 22.4 mm (2.4 x 3.0 x 0.9 inches)

 - Power Requirements DC (5V~18V)

 - Power Consumption 4W

 - Operating Temperature -10°C ~ 40°C (14°F ~104°F)

 - Operating Humidity 20% ~ 80% RH

 - Weight 105g / 0.2 lbs

 - Accessories Adapter(12V/2A)

 - Option D-tap Cable, (Bracket wing)
