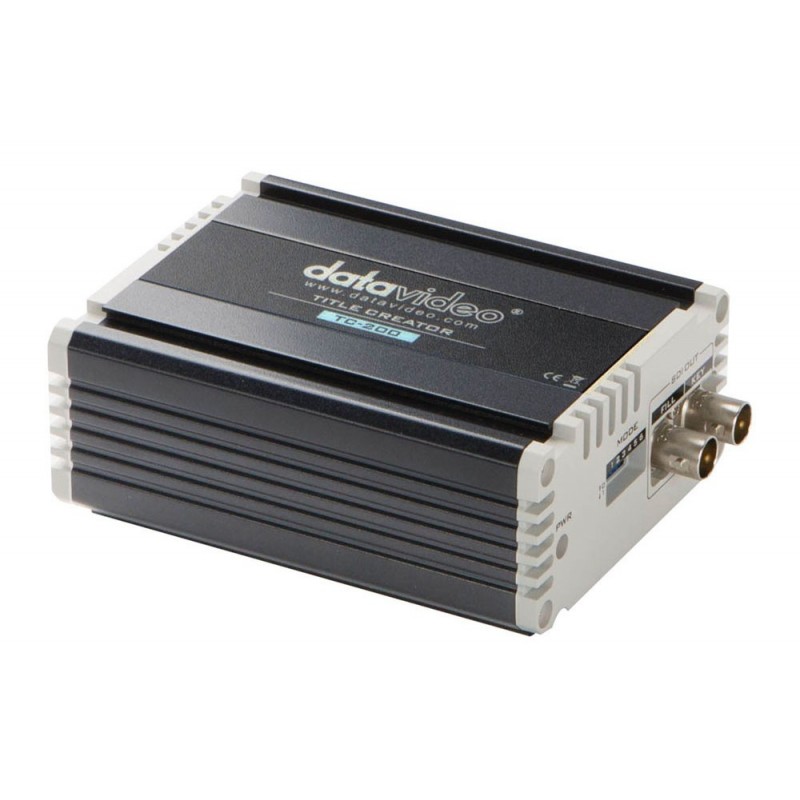

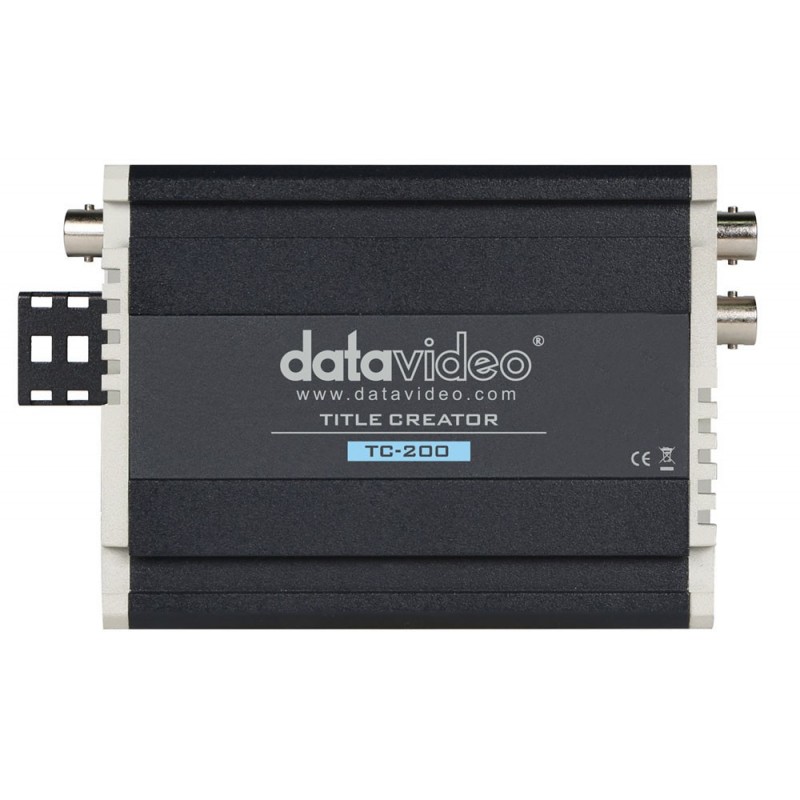

TC-200 DATAVIDEO Portable HD/SD CG Solution มาพร้อม Software

TC-200 DATAVIDEO Portable HD/SD CG Solution

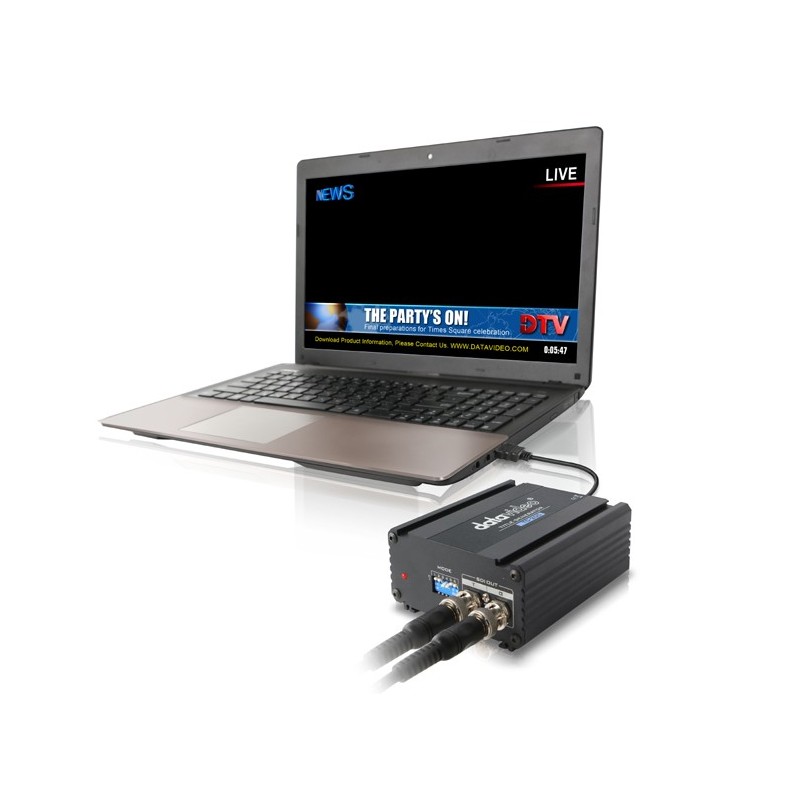

Datavideo TC-200: an innovative HD CG system for mobile broadcasting, live conferences and dynamic video presentations. Using a standard laptop, it enables users to create and deliver attractive on-screen graphics and titles in real-time. It is easy to operate, designed to be intuitive and responsive under the pressure of a live event. CG-200 and TC-200 works with standard Windows laptops with an HDMI interface and supports vision mixers with and without a DSK. Until now, real-time PC titling software has required an additional SDI adapter card to be fitted into a desktop PC. For live programming on location, a computer-based character generator can be problematic, in terms of the physical bulk of the PC, the need for an additional screen and the power requirement. CG-200 and TC-200 makes professional CG on the run a reality.

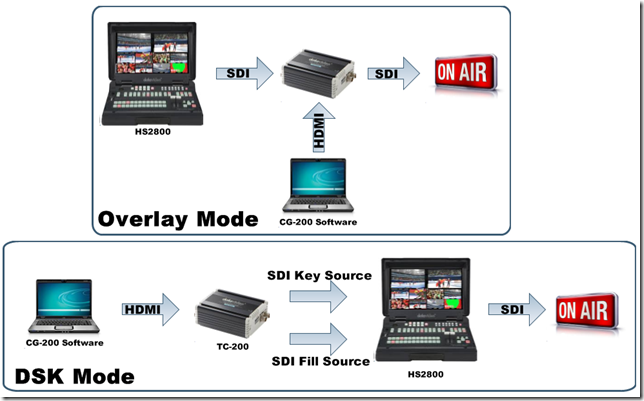

DSK mode

As software only, CG-200 and TC-200 can work with a vision mixer equipped with a DSK. In this mode, CG-200 and TC-200 can be set up as the key source or fill source. It can work with any vision mixer (such as the Datavideo SE-2800 and SE-3000) that has a downstream keyer (DSK).

Overlay mode

The Title Overlay mode overcomes the lack of a DSK in the vision mixer. Using the small external TC-200 hardware unit, The HDMI output from the laptop is embedded with the SDI output from a camcorder, VTR or vision mixer.

Features

• Includes TC-200 (Overlay box) & CG-200 (Character Generator Software)
• Live Title Generator
• No additional PCI card required
• Supports DSK function (via HDMI) or SDI overlay function
• Support HD/SD SDI input and output in Overlay mode
• Supports HD video with 1080i 50/59.94/60; 720p 50/59.94/60
• Supports SD video: 576i/480i
• Title editing on laptop
• Compatible with Windows 7/8
• Supports all Windows fonts
• Multi-language support
• Supports animation including JPG, TAG, GIF, BMP, PNG
• Supports scrolling
• Title editing patterns include Slide, Reveal, etc.
• Easy logo set up
• TC-200 working voltage is 7-15V . It can be used with 7.2 V & 14.4 V batteries

Tech Specs

Text Sources

• Frame text
• clock
• text file
• CSV file

File Format

• JPG/ PNG/ BMP/ TGA/ GIF/ GIF

Animation Formats

• GIF

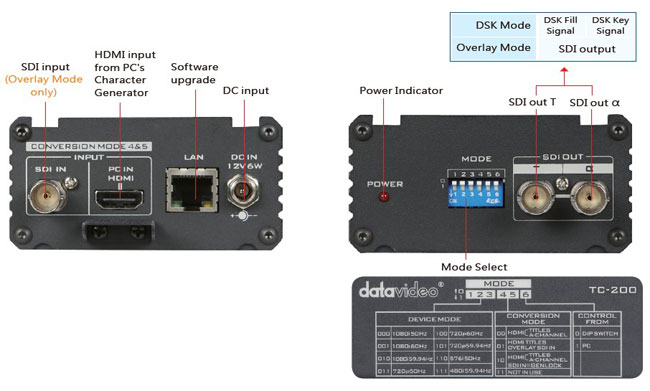

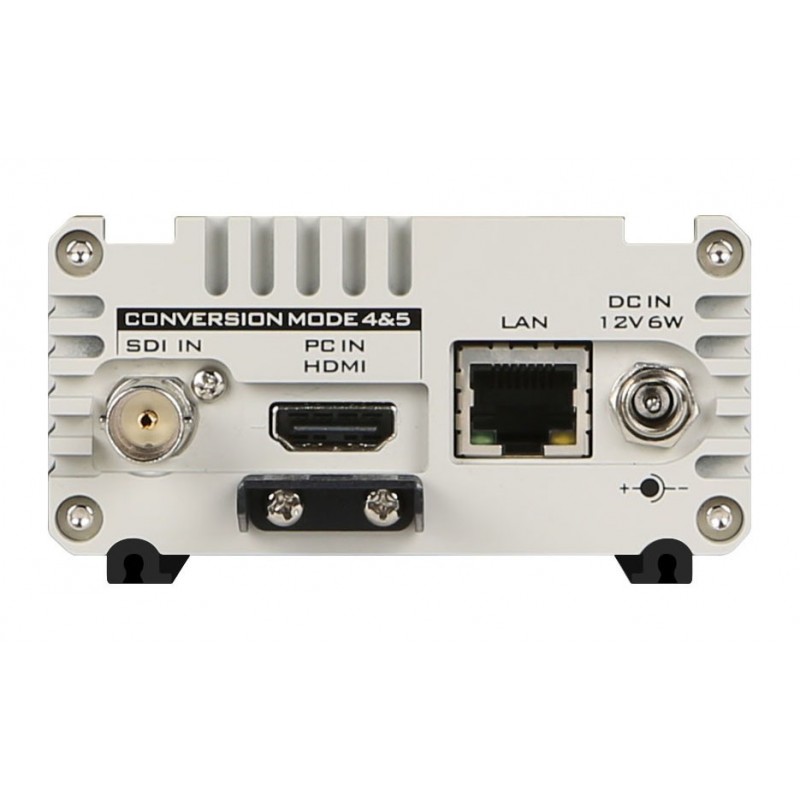

Input and Output Interface

• HDMI input x 1
• HD-SDI input x 1
• HD-SDI output x 2
• LAN port x 1

Mode

• CG overlay : HDMI input is CG; SDI in is live video
• Genlock mode : HDMI input is C G; SDI in is reference signal
• reference with internal signal : HDMI input is CG; SDI in isn’t in in use

Input Formats

• 1920x1080i/50Hz | 1920x1080i/50Hz
• 1920x1080i/60Hz | 1920x1080i/60Hz
• 1920x1080i/59Hz | 1920x1080i/60Hz
  (instead 1920x1080i/59Hz)
• 1280x720p/50Hz | 1280x720p/50Hz
• 1280x720p/60Hz | 1280x720p/60Hz
• 1280x720p/59Hz | 1280x720p/60Hz
  (instead 1280x720p/59Hz)
• 720x576i/50Hz | 1920x1080i/50Hz
  (crop to 720x576i/50Hz)
• 720x480i/59Hz | 1920x1080i/60Hz
  (crop to 720x480i/60Hz)

Conversion Mode

• HDMI signal is split into titles and alpha channel.
• HDMI signal is split into titles and alpha channel with Genlock
• HDMI titles overlay over the input SDI signal

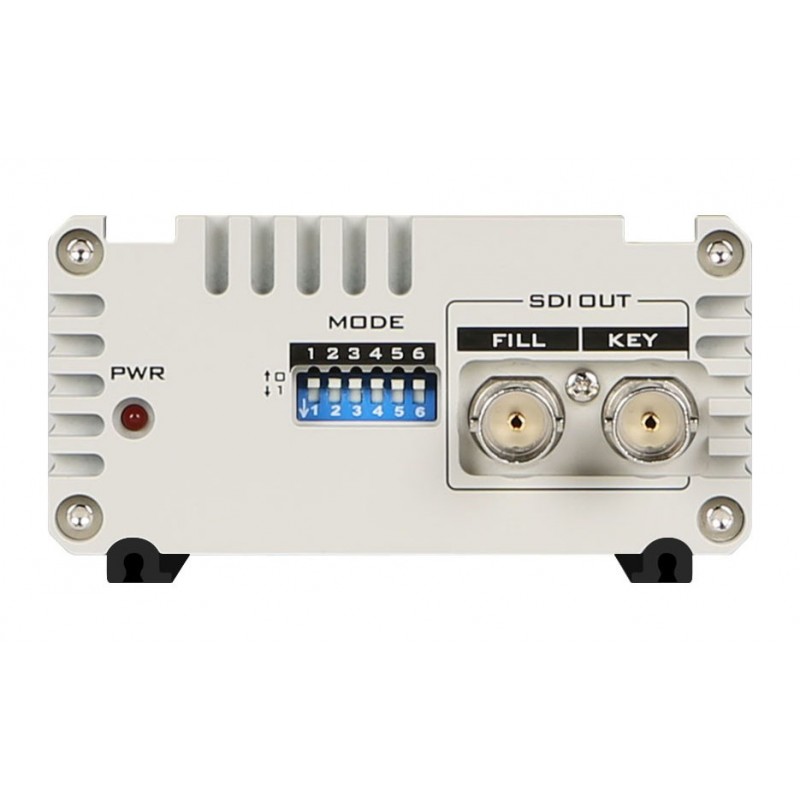

Control

• by dip switch
• by PC

Voltage Range

• 7-15V DC (most of battery is 7.2V, 12V & 14.4V so will need to cover it)

Firmware Update

• Ethernet

System Requirements

• windows 7, 8
• 3GHz Processor
• 2Gb RAM
