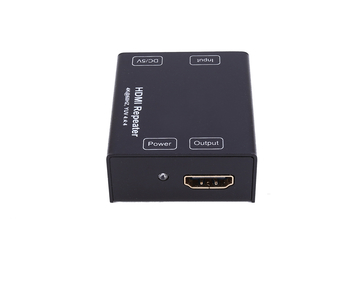

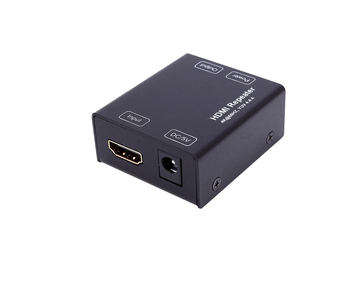

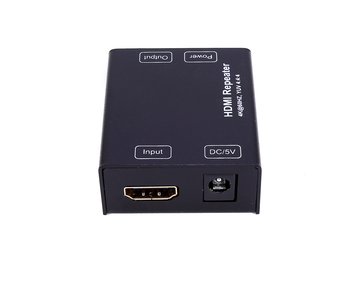

SX-EX39 HDMI2.0 Repeater / support 4k@60hz YUV4:4:4 ตัวขยายเพิ่มสัญญาณ

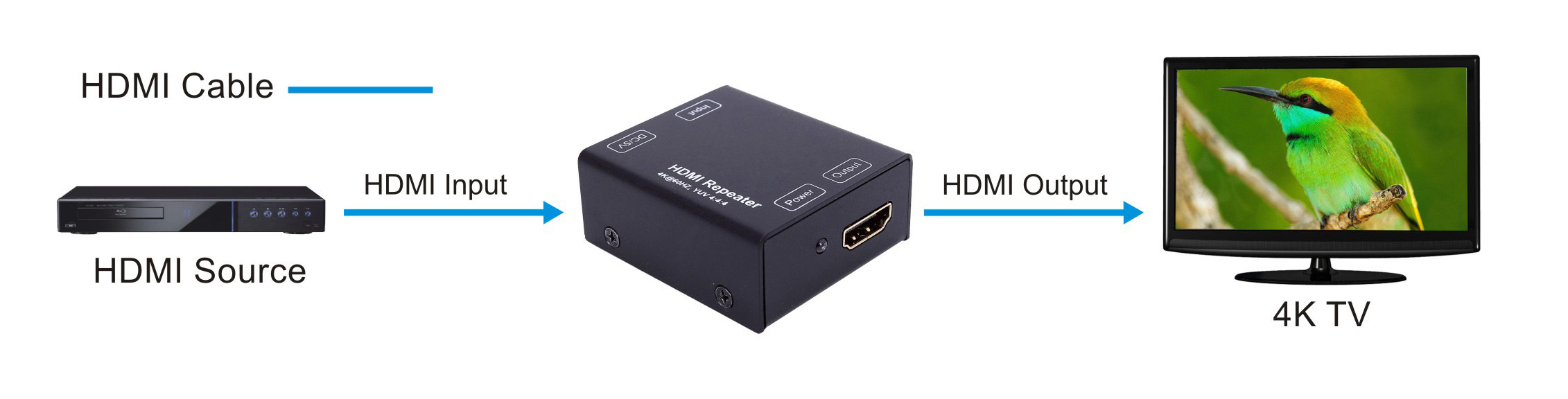

Input

1x HDMI

Output

1x HDMI

Maximum Range

4K@60Hz, YUV 4:4:4, 25m (15m to source + 10m to display) 4K@30Hz, 40m (25m to source + 15m to display) 1080P@60Hz, 50m (30m to source + 20m to display)

Maximum Resolution

4K@60Hz, 4:4:4

Data transfer speed rate

18Gbps(Maximum)

HDMI Compliance

Up to HDMI2.0

HDCP Compliance

Up to HDCP2.2

Operating Temperature Range

-5 to +55°C(+23 to +131°F)

Operating Humidity Range

5 to 90%RH (No Condensation)

Support Video Color Format

Deep color 36bit

Support Audio Format

DTS-HD/true-HD/LPCM7.1/AC3/DTS/DSD

Power consumption

1watts(Maximum)

External Power Source (optional)

5V 150mA on DC receptacle

Dimension (L×W×H)

52x45x21mm

Net Weight

128g
