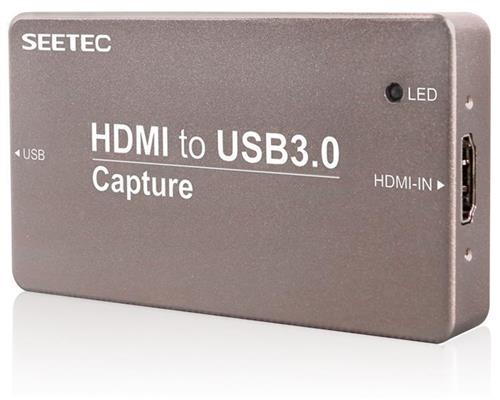

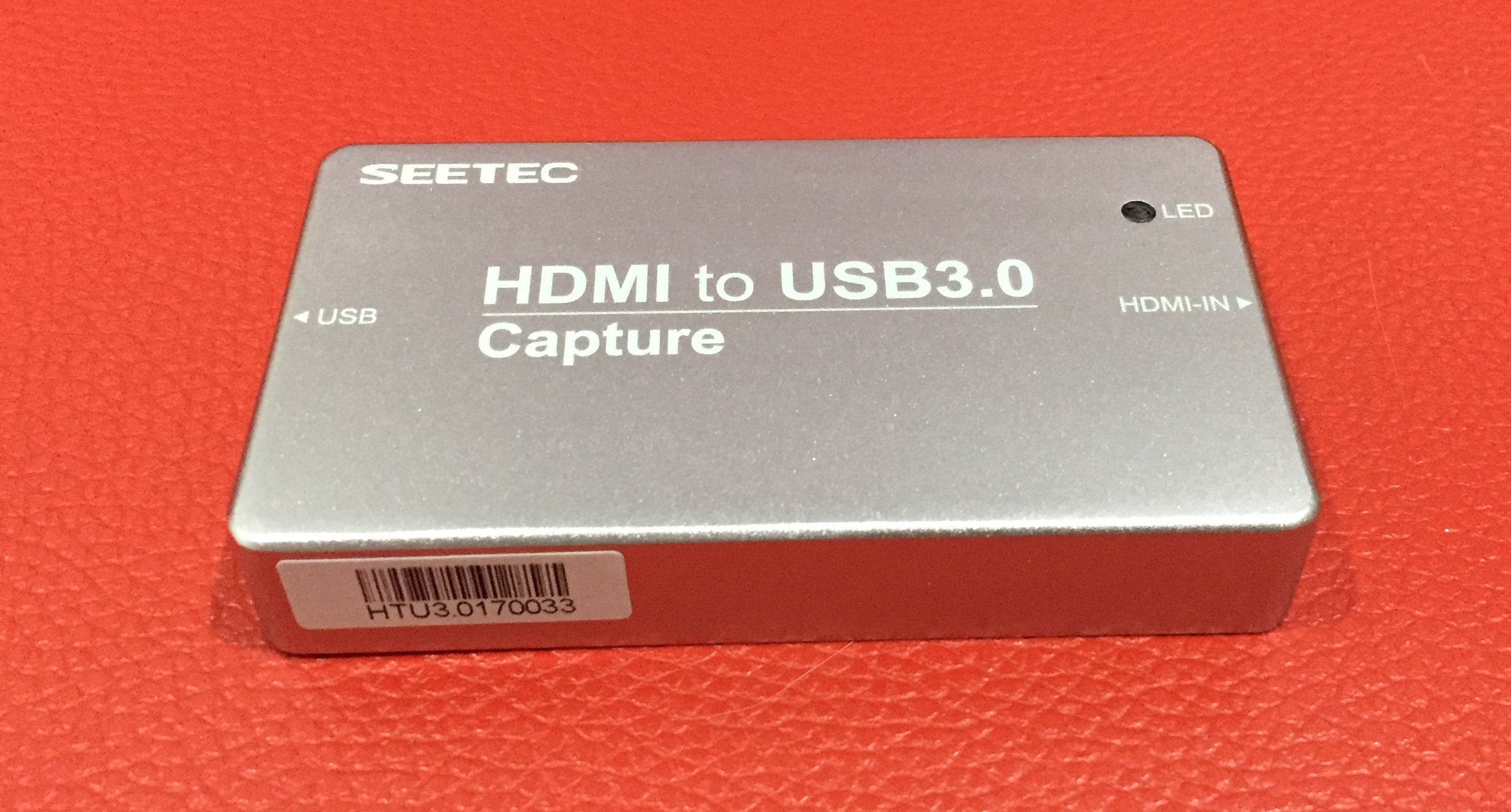

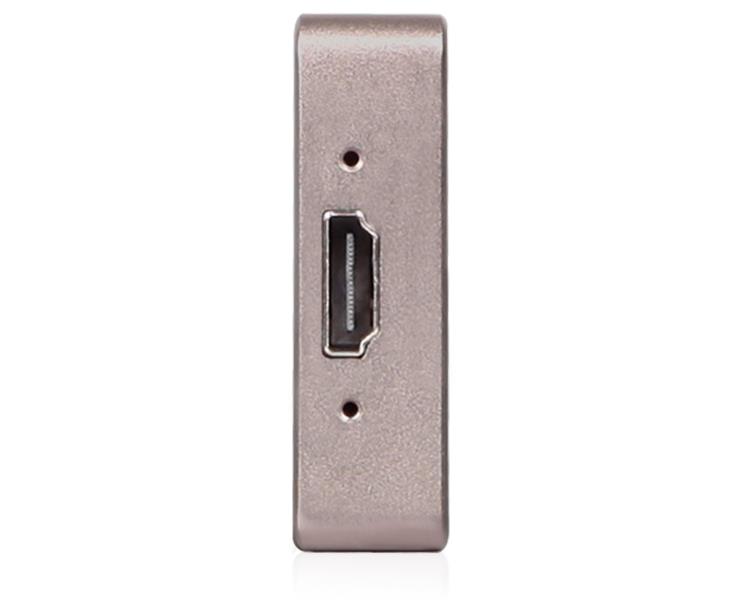

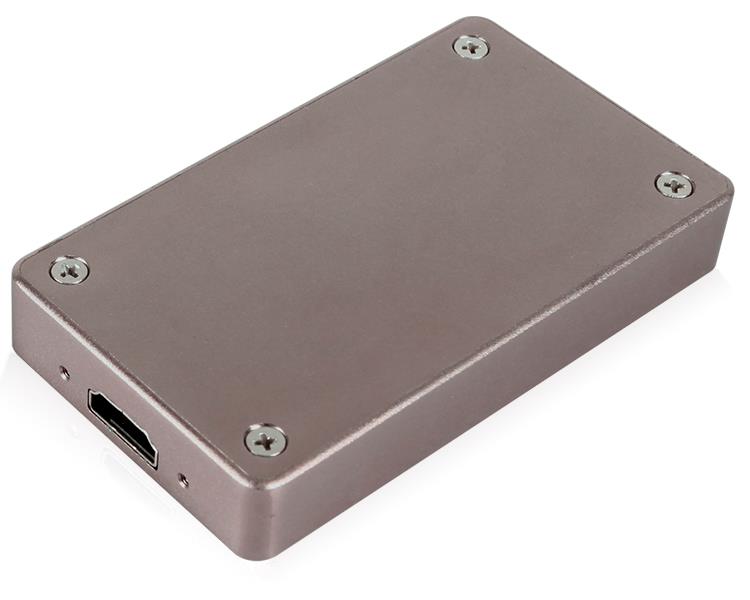

HTU3.0 HDMI to USB 3.0 Video Capture / Streaming / Record Game

HTU3.0 HDMI to USB 3.0 Video Capture / Streaming / Record Game

Features

 - It can capture one single channel HD HDMI video signals.

 - The input and output video signal can reach 1080p/60 Hz.

 - It is compatible with UVC video capture and YUV 422 video output.

 - The UAC is compatible with HDMI audio capture and 48 KHz PCM audio output.

 - It doesn’t need to install a driver, and it is truly PnP.

 - It is compatible with Windows, Linux, OS X operating systems.

Adveenced Features

 - USB3.0, 300-350MB/s throughput and it is compatible with USB 2.0 40MB/s.

 - The process of video and audio is done by the dongle and will not occupy the CPU.

 -  It can automatically detect the input video formats and it will adjust to the set output size and frame rate automatically.

 - It can automatically detect the input audio formats and swift it to 48KHz PCM audio.

 - It supports the image adjustment features, like brightness, contrast, hue and saturation.

 - Multiple dongles can be used on one PC

 - The firmware can be updated.

Tech Specs

 - Incredible Quality HDMI Capture

 - USB 3.0 Fastest Data Transfer Speeds

HDMI Input Formats

It meets the HDMI 1.4a standard, and supports 1080p/60Hz 8-bit, (RGB, YUV)

Input Formats

 - Resolutions: 640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576/

 - Frame Rate: 25/29.97/30/50/59.94/60 fps

Output Formats

 - Resolutions: 640x480/720x480/720x576/768x576/800x600/1024x768/1280x720/1280x800/1280x960/1280x1024/1368x768/1440x900/1600x1200/1680x1050/1920x1080/1920x1200/640x360/856x480/960x540/1024x576/

 - Frame Rate: 25/29.97/30/50/59.94/60 fps

Video Sampling Rate

 - HDMI: 165MHz

Audio and Video Capture

 - It meets the standards of UVC (USB video class) and UAC (USB audio class)

Output Color Space

 - YUY2, RGB24

 OS Compatible

 - x86 and x64 versions Windows 7 , Windows 8, Windows 10 Windows , Server 2008 R2

 - Linux (Kernel version 2.6.38 and above)

 - OS X (10.8 and above)

 - Android

Software Compatibility

 - vMix

 - Adobe Flash Media Live Encoder (Windows, OS X)

 - Real Producer Plus (Windows)

 - QuickTime Broadcaster (OS X)

 - QuickTime Player (OS X)

 - Windows Media Encoder (Windows)

 - Daum Potplayer (Windows, OS X)

 - XSplit Broadcaster (Windows, OS X)

 - VLC (Windows, OS X, Linux)

 - Wirecast (Windows, OS X) etc.

 - OBS etc.
