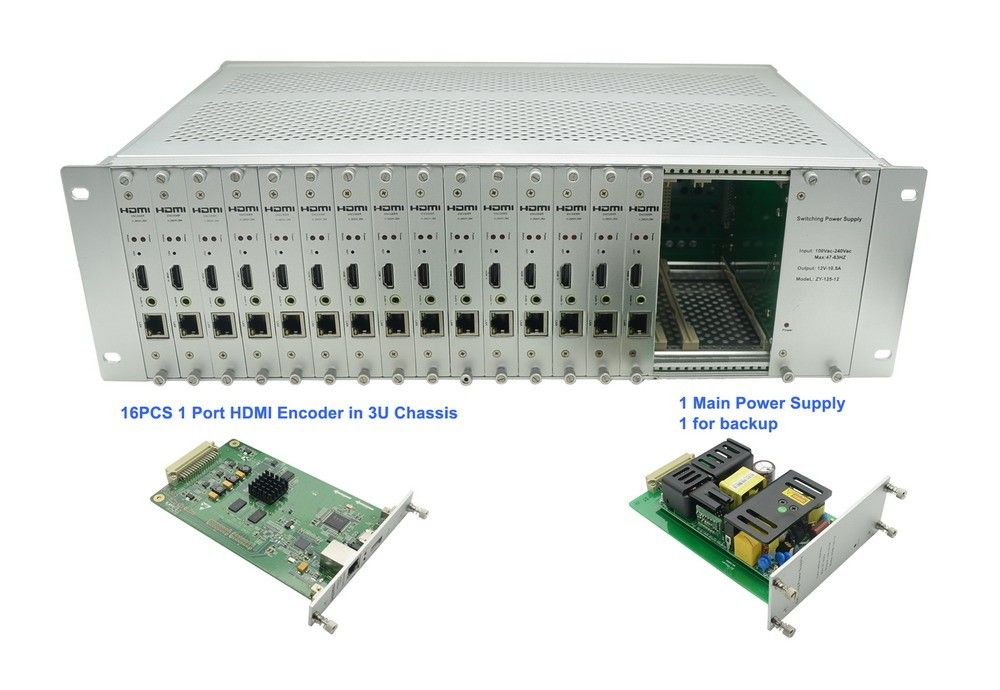

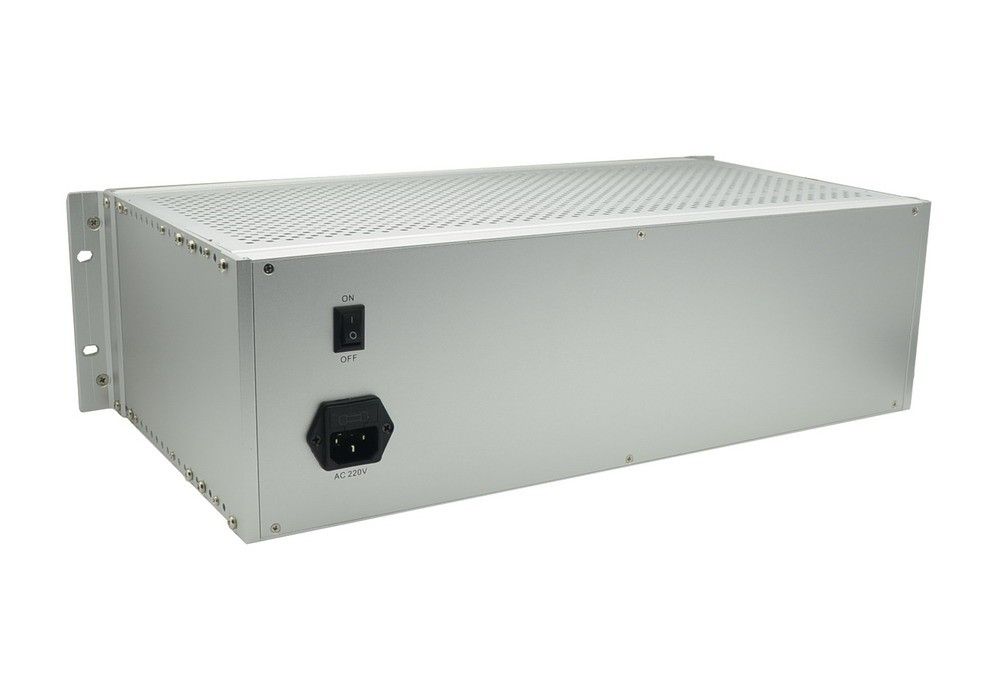

OPR-NH1600P 16 Channels H.265 HDMI Encoder

OPR-NH1600P H.265 16 Channels HDMI Video Encoder
          Which is a HD audio & video encoding device with powerful functionality.It support H.264/H.265 encoding,dual-Streaming data.H.265 HDMI Video Encoder supports input HDMI max resolution is 1080p@60fps, and output stream resolution can up to 1080p@60fps, works with RTMP / HTTP / RTSP / UDP / HLS Stream Protocols and ONVIF. Also the Encoder works with online live broadcast platform, such as YouTube, Ustream, Twitter, etc.

Noted: RTMP Protocols NOT supports H.265 Encode.

Feature
 - Embedded HiLinux System, stable and effective.
 - Friendly Web Control UI, default IP is 192.168.1.168.
 - Support RTMP, RTSP, UDP, HTTP, HLS, FLV and ONVIF Protocols.
 - Support output 2 RTMP (main stream & SubStream) to different Media Server.
 - Main Stream Support output resolution - 1920x1080, 1680x1056, 1280x720, 1024x576, 850x480, 720x576, 720x540, 720x480, 720x404, 704x576, 640x480, 640x360, 608x448, 544x480, 480x480, 480x384, 480x360, 480x320, 480x272, 480x270, 400x320, 400x224, 352x480, 352x228, 320x256, 320x240, 320x180, 240x180, 176x144.
 - Support Text and BMP photo insert as Stream Logo for main stream & 2nd stream.
 - Support Image quality Settings, Brightness, Contrast, Hue, Saturation.
 - Output Stream bitrate adjustable.
 - Support firmware upgrade.
 - IP address can be set by yourself.
 - Support remote control via router port forward.
 - Max supports 16Pcs Encoder Cards installed.

Tech Specs
Video

Input

16 * HDMI

Supports input HDMI Resolution

Max support 1920x1080P@60Hz

Output Stream Resolution

Max support 1920x1080P@60Hz and below

Data Rate

0.1Mbps~32Mbps

Rate Control

CBR / VBR

GOP Structure

IBBP

Advanced Pretreatment

De-interlacing, Noise Reduction, Sharpening

Audio

Encoding

AAC AAC+ AAC++ MP3

Sampling rate

44.1K /48K

Bit-rate

12K ~ 320K

Sampling precision

24 bit

System

Ethernet

100Base-T Ethernet interface

Protocol

RTMP, RTSP, UDP,HTTP,HLS, FLV ONVIF

User Interface

WEB default IP - 192.168.1.168

Others

Dimension (W* L*H)

19" 483 (L) *300 (W) *133 (H) mm

Weight

6.5

Power

110-220V

Consumption

90W

Application
 - IPTV (Wowza, Xtream Codes Media Server, etc.)
 - Online Live Broadcast ( YouTube, Ustream, Twitter, etc.)
 - NVR (Net Video Recorder)
 - Teaching / Campus Broadcast
 - Hotel TV system
 - Video Conference
 - Digital Signage
 - Recording System
