Roland V-4EX 4-Channel Digital Video Mixer with Effects

Roland V-4EX 4-Channel Digital Video Mixer with Effects

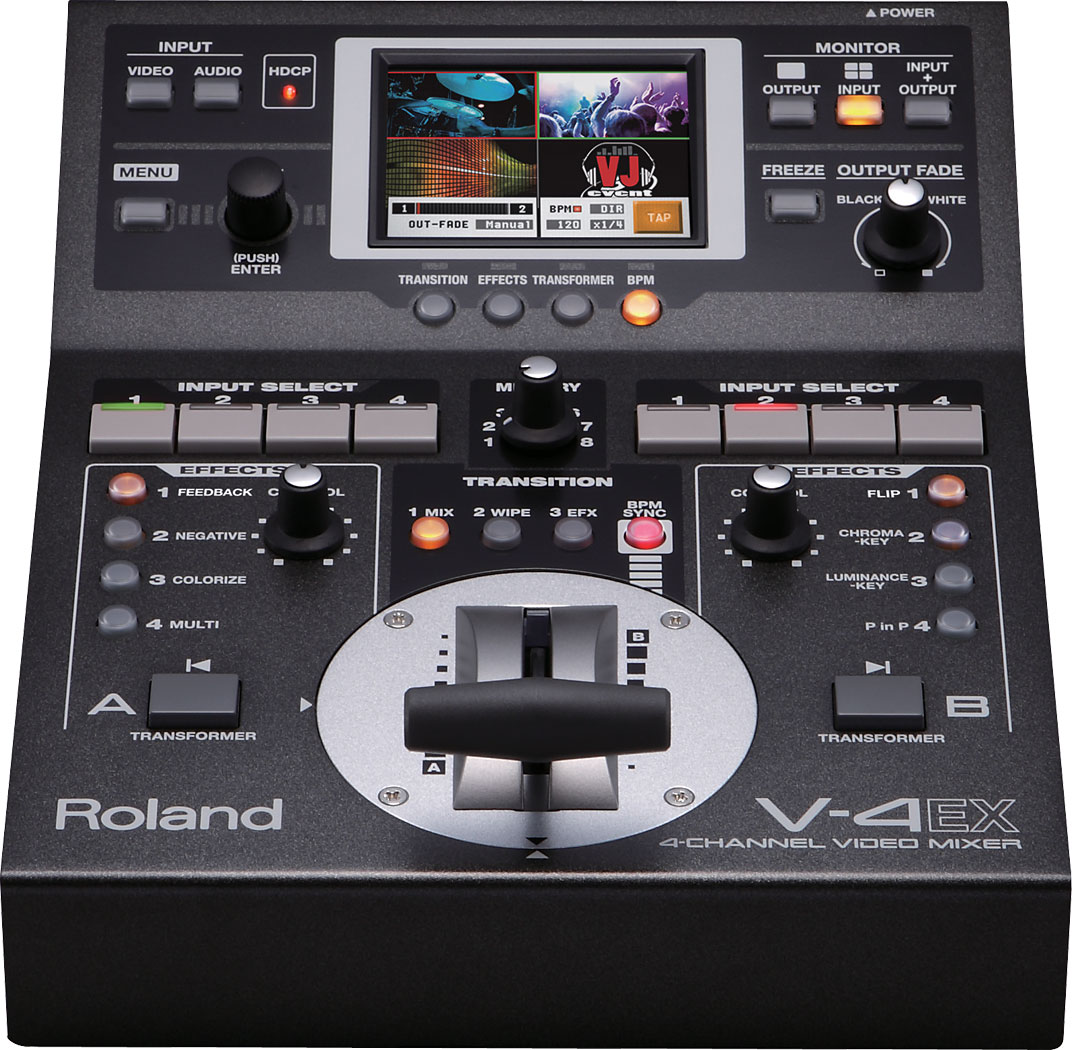

Accessible and quality video performance and web streaming - The V-4EX - advancing the legendary V-4 and V-8 family to now include HDMI in/out, progressive internal processing, audio embedding, USB streaming and built-in touch monitor.
Feature

•  - 3 Input (SD HDMI/Composite) + 1 Input (Up to 1080p HDMI/RGB/Component/Composite)
•  - PGM Output (Up to 1080p HDMI + RGB/Component + Composite) + PVW Output (PVW/Multiviewer)
•  - 480p/576p Progressive internal processing
•  - Built-in multiviewer with touch control
•  - Built-in frame synchronizers on all inputs
•  - Scalers on CH 4 and Output
•  - HDCP compliant
•  - 259 Transitions 148 Effects
•  - Audio Embedding
•  - Audio Mixer & Delay -up to 4 frames
•  - USB Streaming Out for webstreaming

Tech Specs

PROCESSINGVideo Processing4:2:2 (Y/Pb/Pr), 8 bits (Internal Processing : 480/59.94p when set to NTSC, 576/50p when set to PAL)Audio ProcessingSampling Rate : 24 bits/48 kHz, 2 ch

INPUT FORMATSHDMI Video (INPUT 1 -- 3)requires 720x480/59.94p (when set to NTSC), 576/50p (when set to PAL)HDMI and Component Video (INPUT 4)480/59.94i, 480/59.94p, 720/59.94p, 1080/59.94i, 1080/59.94p (when set to NTSC), 576/50i, 576/50p, 720/50p, 1080/50i, 1080/50p (when set to PAL)HDMI Audio (INPUT 1 -- 4)Linear PCM, 24 bits/48 kHz, 2 chRGB (INPUT 4)640 x 480/60Hz, 800 x 600/60Hz, 1024 x 768/60Hz, 1280 x 768/60Hz, 1280 x 1024/60Hz, 1366 x 768/60Hz, 1400 x 1050/60Hz, 1600 x 1200/60Hz, 1920 x 1200/60Hz
* The refresh rate is the maximum value of each resolution.
* Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60Hz : Reduced blankingComposite Video (INPUT 1 -- 4)NTSC, PALS-Video (INPUT 4)NTSC, PAL

OUTPUT FORMATS
HDMI and RGB/Component Video (OUTPUT)

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p
640 x 480, 800 x 600, 1024 x 768, 1280 x 768, 1280 x 1024, 1366 x 768, 1400 x 1050, 1600 x 1200, 1920 x 1200
* The output format of HDMI and RGB/Component is always the same.
When an interlaced format is selected, component signal is output from the RGB/COMPONENT connector.
When a non-interlaced format is selected, RGB signal is output from the RGB/COMPONENT connector.
* The refresh rates of RGB format is 60 Hz when set to NTSC, 75 Hz when set to PAL (excluding 1600 x 1200 and 1920 x 1200. The refresh rate of these 2 is 75 Hz when set to PAL.)
* RGB formats : Conforms to VESA DMT Version 1.0 Revision 11.
* 1920 x 1200/60Hz : Reduced blankingHDMI Audio (OUTPUT)
Linear PCM, 24 bits/48 kHz, 2 chComposite Video
NTSC, PALPreview Video (PVW OUT)
480/59.94p when set to NTSC, 576/50p when set to PALPreview Audio (PVW OUT)
Linear PCM, 24 bits/48 kHz, 2 chUSB Video
720 x 480 when set to NTSC, 720 x 576 when set to PAL, Motion JPEGUSB Audio
Linear PCM, 16 bits/48 kHz, 2 ch

INPUT CONNECTORS
Video
HDMI : Type A (19 pins) x 4 (INPUT 1 -- 4)
RGB/Component : HD DB-15 type x 1(INPUT 4)
Composite : BNC type x 4 (INPUT 1 -- 4)
S-Video : 4-pin mini DIN type x 1 (INPUT 4)
Audio
RCA-pin type x 1pair (AUDIO IN)

OUTPUT CONNECTORS

Final OutputHDMI : Type A (19 pins) x 1 (OUTPUT)
RGB/Component : HD DB-15 type x 1 (OUTPUT)
Composite : BNC type x 1 (OUTPUT)Preview OutputHDMI : Type A (19 pins) x 1 (PVW OUT)Other ConnectorsMIDI : 5 pins DIN type x 2 (IN, OUT/THRU)
USB : B type x 1 (for streaming and remote control)

SIGNAL LEVEL IMPEDANCE
RGB/ComponentSignal Level : 1.0 Vp-p (luminance), 0.7 Vp-p (chroma)
Impedance : 75 ohmsCompositeSignal Level : 1.0 Vp-p
Impedance : 75 ohmsS-VideoSignal Level : 1.0 Vp-p
Impedance : 75 ohmsAnalog AudioNominal Input Level : - 10 dBu
Maximum Input Level : + 8 dBu
Impedance : 15 k ohms

OTHERS
DisplayGraphic Color LCD, 320 x 240 dots, touch panelVideo EffectsTransition : Mix, Cut, Wipe (259 patterns)
Composition/Filter : Picture in Picture, Luminance Key, Chroma Key, Strobe, Negative, Colorize, Feedback, Emboss, Multi, Mirror etc. (148 types)
Others : Output Fade, FreezePower SupplyAC adaptorCurrent Draw2.0 AAccessoriesAC adaptor, Power Cord, RCA - BNC conversion plug x 2, Owner's Manual
SIZE AND WEIGHT

Width (W)225 mm (8-7/8 inches)Depth (D)296 mm (11-11/16 inches)Height (H)105 mm (4-3/16 inches)Weight2.6 kg (5 lbs. 12 oz.)
