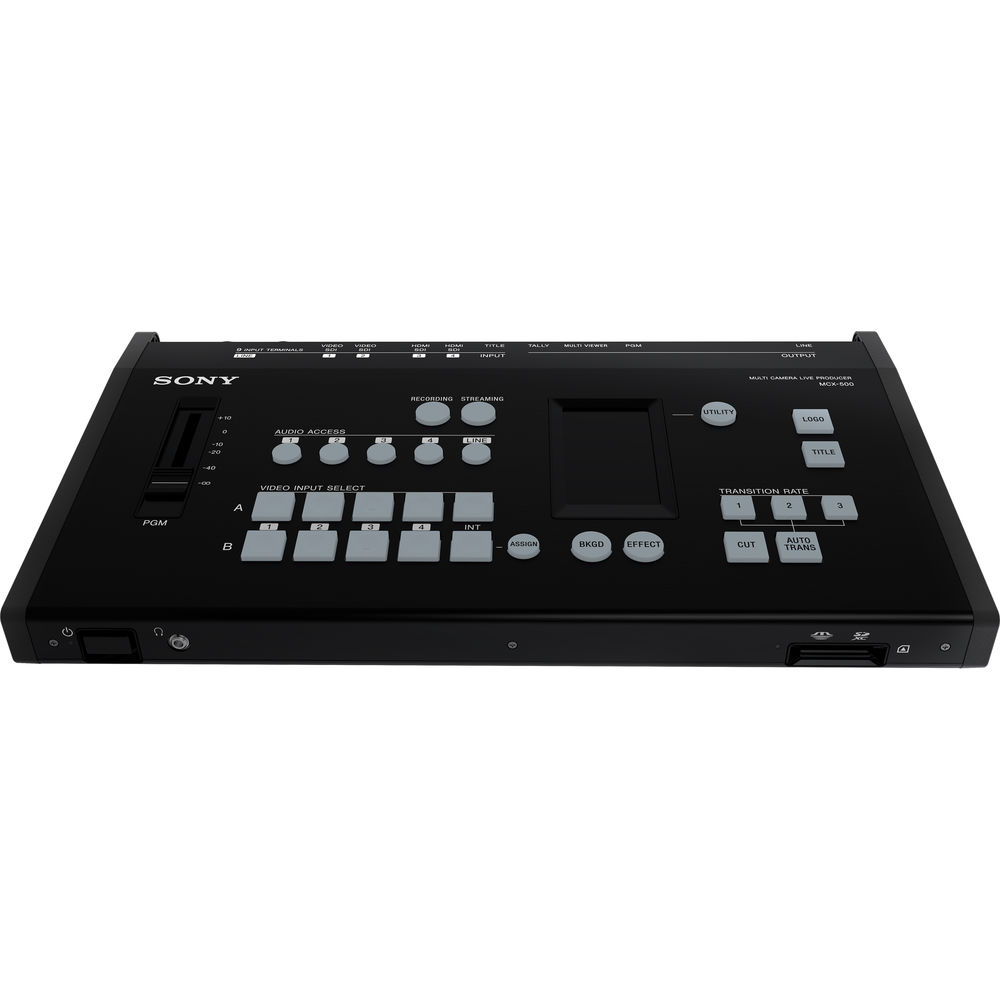

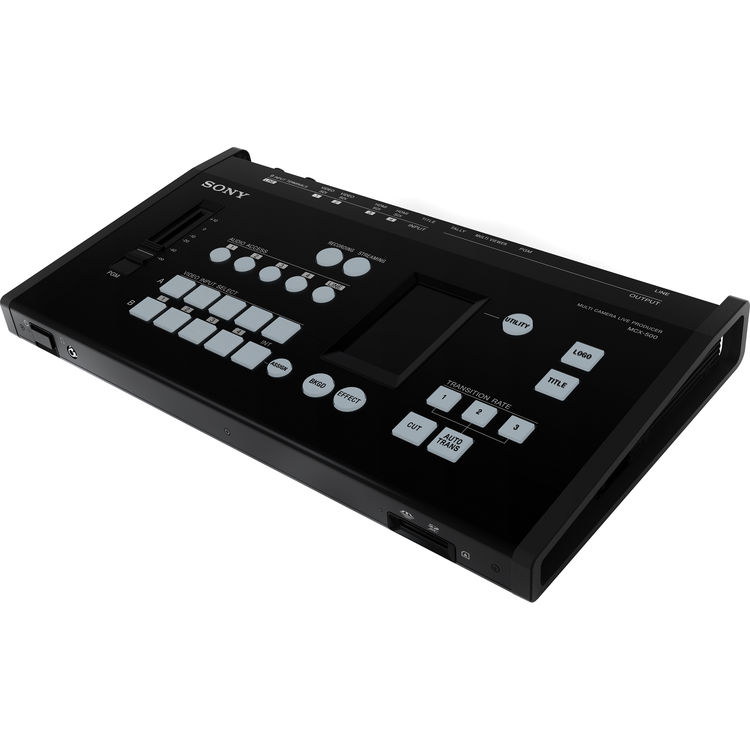

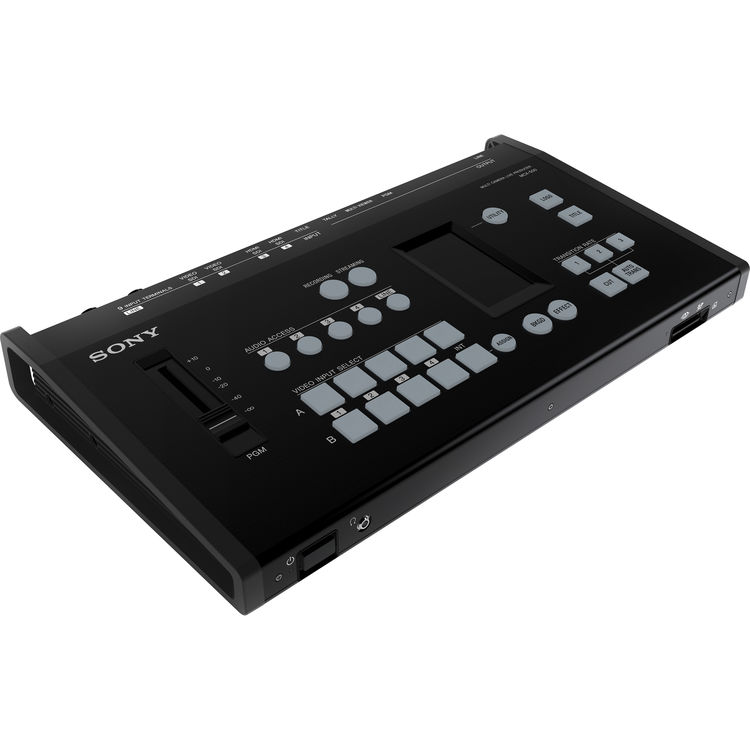

Sony MCX-500 Multi-Camera Live Producer
จำหน่าย Sony MCX-500 วิดีโอสวิทเชอร์สำหรับการทำสรี่มมิ่ง ขึ้น Facebook , Youtube และบันทึกวิดีโอได้ในตัว

จำหน่ายเครื่องสลับสัญญาณภาพ  SONY MCX-500 ตัดภาพออกอากาศสดคุณภาพสูงพร้อมทั้ง Live Stream

- เครื่องสลับสัญญาณภาพ รองรับการผลิตรายการสด (Live)

- รับสัญญาณภาพขาเข้าได้ถึง 8 ช่องสัญญาณ + 1 Title (9สัญญาณ)

- รองรับการซ้อนตัวหนังสือ (Title) และสร้างเอฟเฟ็กต์วิดีโอขั้นสูง

- ควบคุมด้วยจอภาพระบบสัมผัส (Touch Screen)

- แสดงผลแบบหลายจอภาพ ( Multi-view monitoring)

- ถ่ายทอดสดผ่านอินเตอร์เน็ต (Live Stream) ผ่าน Facebook, Youtube

- บันทึกภาพความละเอียดแบบ HD โดยตรงภายในเครื่อง ด้วยแผ่นบันทึกชนิด SD



- มีระบบ Tally แสดงสถานะการใช้งานของกล้องที่กำลังถ่ายทอด

The MCX-500 is an a ordable, uniquely user-friendly and exible production switcher that makes it simple for a single operator or small team to produce a broadcast quality live event. Multiple video inputs include professional 3G-SDI, HDMI, Composite Video plus dedicated DSK mean you can mix and match kit as needed for each production.

Features
 - Smart controls with configurable LCD Touchscreen
 -
Mix between 8 video sources + 1 Title (total 9 inputs)
 -
Multi-view monitoring
 -
Advanced titles and effects
 -
Stream content live over the internet
 - PC, Mac & Tablet integration
 -
Worldwide Full HD support

Simple Live Solution

Tech Specs

General

Power requirement DC 12V, Approx. 23W
Dimensions (W x H x D)  362 × 43.5 × 206 mm (Approx.)
Mass Approx. 2.1 kg

System

Video format 1080/59.94i Hz (60i)
1080/50i Hz (50i)

Streaming

Protocol AVC/RTMP (Ustream)

Recording

Format AVCHD
Media Memory Stick ProDuo, Memory Stick PRO-HG Duo, Memory Stick XC-HG, SD, SDHC, SDXC memoy cards (Class 4 or higher)

Video switcher

Function Input : 8 Primary Video inputs + Title, 4 Channel
1 M/E + 2 Keyer (1 x PinP, 1 x Title)
Output : PGM Output, Multi View Output
Key Type Luminance Key / Chroma key

Audio mixer

Function Input: Analog Stereo (x1) / Stereo Embedded Audio inputs (x4)
Mixing: Stereo Mixing (x5)
Output: PGM (Stereo) (x1)

Video input

SDI BNC (x4), 75 Ω, 3G SDI/HD/SD
SMPTE 292M/259M/424M/425M
HDMI Type A (x2)
(720x480/576p, 1280x720p, 1920x1080i/p)
VIDEO input BNC (x2), NTSC/PAL
VIDEO: 1.0 Vp-p 75 Ω, negative sync
Title D-Sub Shrink 15-pin (x1) (Female)
RGB (1600x1200)

Video output

HD SDI BNC (x1, PGM) 75 Ω, 1.5 Gbps, 270 Mbps
SMPTE 292M
HDMI HDMI (Type A) (x1, PGM) (720x480/576p, 1280x720p, 1920x1080i/p)
HDMI (Type A) (x1, Multi View) (720x480/576p, 1280x720p, 1920x1080i/p)
VIDEO output BNC (x1)
VIDEO: 1.0 Vp-p 75 Ω, negative sync

Audio input

Embedded audio input SDI/HDMI 16bit, Sampling;48HKHz
Analog input XLR/TRS Combo Type ( (CH-1, CH-2) )

Audio output

Embedded audio output SDI/HDMI 16bit, Sampling;48HKHz
Analog output Phono jack (CH-1, CH-2)
Headphones Stereo mini jack (x1)

Other interface

LAN RJ-45 (x2, PC UI Streaming),
100BASE-TX, 1000BASE-T
USB2.0 USB Type-miniB (x1)
Option φ3.5mm jack (x1)
TALLY D-Sub 9-pin (x1) (male)
