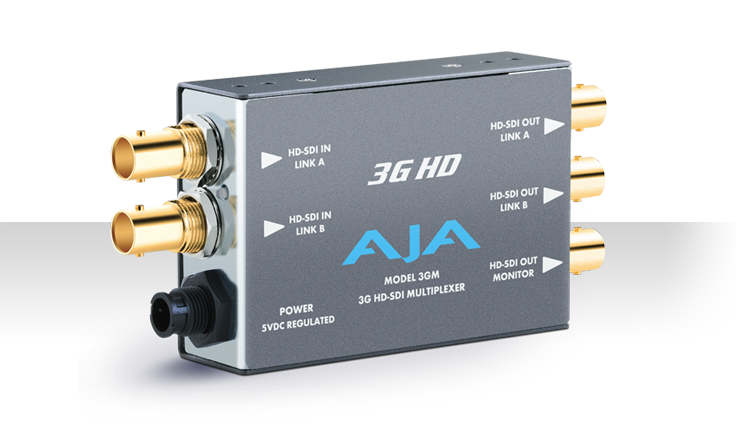

3GM - 3G/1.5G HD-SDI Multiplexer

3GM  3G/1.5G HD-SDI Multiplexer

          The 3GM is versatile and economical tool for interconnecting dual-link 1.5G SMPTE372M and 3G SMPTE425M. 3GM is bi-directional - allowing dual 1.5G to 3G or 3G to dual 1.5G conversion. Additionally, 3GM's 3G HD-SDI output is configurable for SMPTE425M type A or B. The 3GM can even convert 3G from/to type A or B. 3GM also provides a monitor output which is a single link SMPTE292M 1.5G HD-SDI. The 3GM is also compatible with SMPTE259M 270Mb SDI.

Features

• Compact 3G to/from 1.5G conversion
• SMPTE425M-AB inputs, 3G outputs configurable to A or B
• Converts SMPTE425M A to/from SMPTE425M B
• Provides SMPTE292 monitor output for dual 1.5G or 3G inputs
• Fully equalizing and re-clocking with jitter attenuation
• Passes all ancillary data
