• (4K) 4096 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (4K) 4096 x 2160PsF 23.98, 24, 25, 29.97*
• (UltraHD) 3840 x 2160p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (UltraHD) 3840 x 2160PsF 23.98, 24, 25, 29.97*
• (2K) 2048 x 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080p 23.98, 24, 25, 29.97, 30, 50, 59.94, 60
• (HD) 1080i 25, 29.97, 30
• (HD) 1080PsF 23.98, 24, 25**, 29.97**
• (HD) 720p 50, 59.94, 60

*Only 4 x 1.5G-SDI, 10-bit 4:2:2 YCbCr, Square Division
**25 and 29.97 requires Record Type>PsF selection

• Apple ProRes 4444, 4K/UltraHD/2K/HD up to 30 fps
• Apple ProRes 422 (HQ)
• Apple ProRes 422
• Apple ProRes 422 (LT)
• Apple ProRes 422 (Proxy)
• Avid DNxHD HQX (220x)*
• Avid DNxHD SQ (145)*
• Avid DNxHD LB (36)**
  • (HD) 1080p 23.98, 24, 25, 29.97, 50, 59.94
  • (HD) 1080i 25, 29.97
  • (HD) 1080PsF 23.98, 24, 25, 29.97
  • (HD) 720p 50, 59.94

*Avid DNxHD only supported for 1080 and 720 resolutions
**Avid DNxHD 36 only supported for 1080p

• Apple ProRes .MOV
• AVID DNX MXF or .MOV

• 2 x slots, AJA Pak SSD media Pak256, Pak512, Pak1000*
• Pak-Adapt-eSATA**, Pak-Adapt-CFast**

*4K/UltraHD 50, 59.94, 60 ProRes 422 (HQ) recording requires genuine AJA Pak1000 media
**Only with AJA qualified media

• 4x 3G-SDI, SMPTE-292/296/424, 10-bit (12-bit input supported)
• 4x Fiber LC*,  3G-SDI, SMPTE-297, 10-bit
• 4K/UltraHD 4:2:2 or 4:4:4 (4 x BNC or Fiber LC*)
• Dual Link 4:2:2, 4:4:4 (2 x BNC or Fiber LC*)
• Single Link 4:2:2, 4:4:4 (1 x BNC or Fiber LC*)
• 1x HDMI standard type A connector
• HDMI v2.0
  • 4:2:2 YCbCr 8/10/12bit
  • 4:4:4 RGB/YCbCr 8bit
  • 4:2:0 YCbCr 8/10/12bit (deep color)
  • 4:4:4 RGB 10/12bit (deep color)

*Optional SFP Modules

• 4 x 3G-SDI, SMPTE-292/296/424, 10-bit
• 4x Fiber LC* 3G-SDI, SMPTE-297, 10-bit
• 4K/UltraHD 4:2:2 or 4:4:4 (4 x BNC or Fiber LC*)
• Dual Link 4:2:2 or 4:4:4 (2 x BNC or Fiber LC*)
• Single Link 4:2:2 or 4:4:4 (1 x BNC or Fiber LC*)
• 1x HDMI standard type A connector
• HDMI v2.0
  • 4:2:2 YCbCr 8/10/12bit
  • 4:4:4 RGB/YCbCr 8bit
  • 4:2:0 YCbCr 8/10/12bit (deep color)
  • 4:4:4 RGB 10/12bit (deep color)

*Optional SFP Modules

• 16-Channel, 24-bit SDI/Fiber embedded audio, 48 kHz sample rate, synchronous
• 8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 8-Channel, AES/EBU via (1/2 x DB-25 TASCAM pinout)

• 8-Channel, 24-bit A/D analog audio, 48 kHz sample rate (1 x DB-25 TASCAM Pinout)
• +24dBu full scale digital
• +/- 0.2dB 20 Hz to 20 kHz frequency response

• 16-Channel, 24-bit SDI/Fiber embedded audio, 48 kHz sample rate, synchronous
• 8-Channel, 24-bit HDMI embedded audio, 48 kHz sample rate, synchronous
• 8-Channel, AES/EBU via (1/2 x DB-25 TASCAM pinout)

• Stereo unbalanced headphone jack (1 x 3.5mm jack) with volume control
• 8-Channel, 24-bit D/A analog audio, 48 kHz sample rate (1 x DB-25 TASCAM pinout)
• 2-Channel unbalanced 2 x RCA connectors

• Multi-channel HD Apple ProRes recording*
• Single-channel 4K/UltraHD/2K/HD recording

*Multi-channel HD recording is only supported for Apple ProRes with AJA Pak1000 media

• Single-channel HD/2K/UltraHD/4K recording

• SDI RP188/SMPTE 12M via SDI BNC
• LTC input (1 x BNC)
• LTC output (1 x BNC)

• External, 2 x BNC
• Looping, nonterminating
• Blackburst or tri-level sync

• 10/100/1000 Ethernet (RJ-45)
• Embedded web server for remote control via REST
• Video Confidence Monitor via Web Interface
• Clip upload/download via Web Interface in DATA-LAN mode
• Configuration and Transport Control via WEB Interface

• RS-422, 1 x DE-9 female connector, Sony 9-pin protocol
• 9-pin D-connector pinout is as follows:

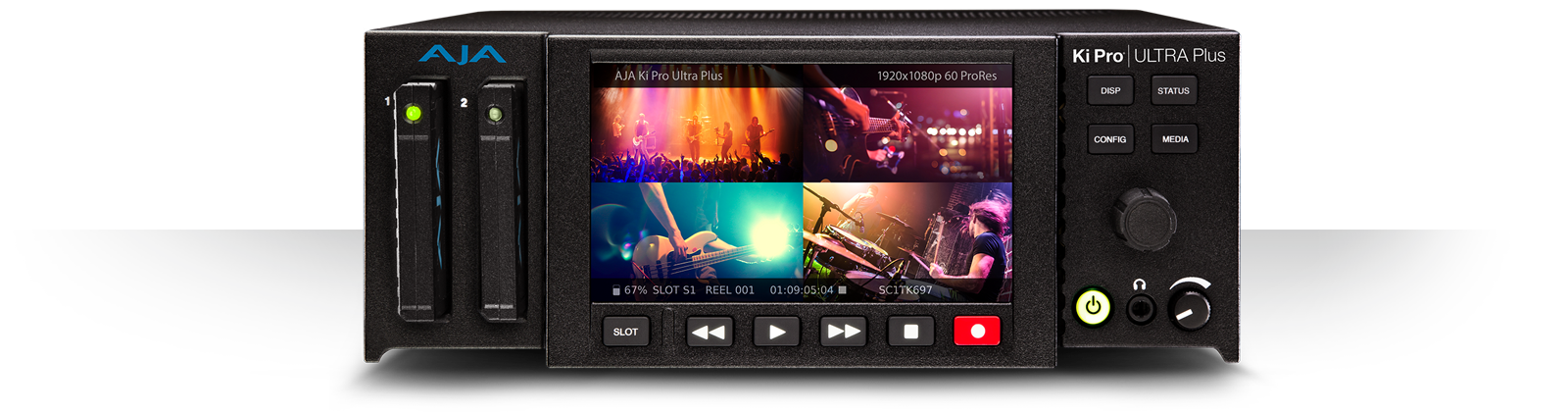

• Rotary selector knob
• Dedicated, backlit transport controls and menu buttons
• Large 1280 x 720 TFT LCD display with Video Monitor and Menu/Status Overlays

• CEA-708, CEA-608

• HFS+, exFAT

• 8.64" x 9.34" x 3.31" (219.46mm x 237.24mm x 84.08mm)

• 5.6 lbs (2.6 kg)

• Dual, redundant, 5.4A max, 35W-60W typical-65W Max
  • 100-240 VAC 50/60 Hz (adapter)
  • 12-18Vdc 4-pin XLR (chassis)

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
