Panasonic AV-HS6000 2ME Live Switcher with complete system
The AV‑HS6000 is a 2ME model in the HS series that employs a newly designed, easy-to-use GUI Control Panel to support accurate switching.
Even with its 3U compact size, the main unit is equipped with an abundance of inputs and outputs for great system integration that include 32 SDI and 2 DVI inputs plus 16 SDI outputs. To top it all off, 4 DVEs per ME enable diverse transitions when producing creative video in demanding fast paced situations.

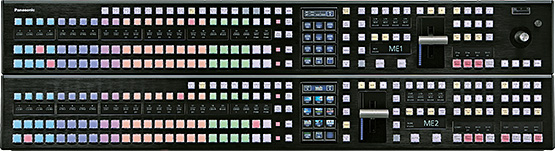

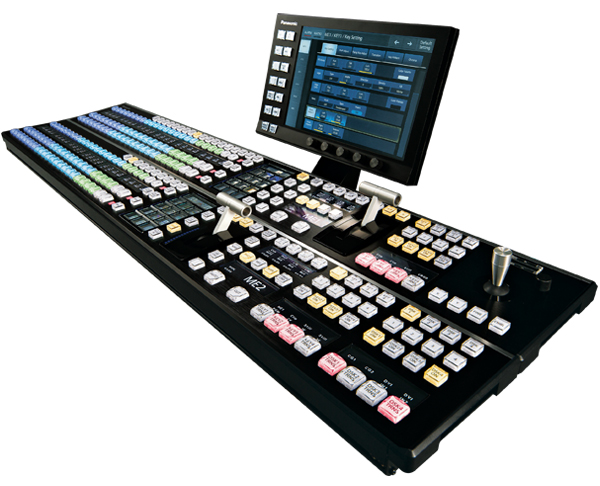

Three types of control panels can be used. C1 and C2 panels offer 24 XPT buttons and 4 pages, and allow easy switching among 96 total crosspoints. Single or redundant power supply is selectable. New compact panel C4 is 30% shorter than the C1/C2 version and offers an easier integration into small studios and OB Vans. It offers 26 XPT buttons and 4 pages, for switching among 64 total crosspoints. In all cases, two multi-selection panels easily allow to recall wipes, event, shot, video and still memories.
The AV-HS6000 is the "group name" for the below single items:
- AV-HS60U2E Main Frame (Dual Power)
- AV-HS60C2E Control Panel (Dual Power)
- AV-HS60C4E Compact Control Panel (Dual Power)
- AV-HS60C3G Menu Panel (LCD Touch screen)
- AV-SFU60G Chromakey License (software + key)
- AV-HS60D1G Internal Storage Option (SSD)
- AV-SF6000 Software Control Panel
