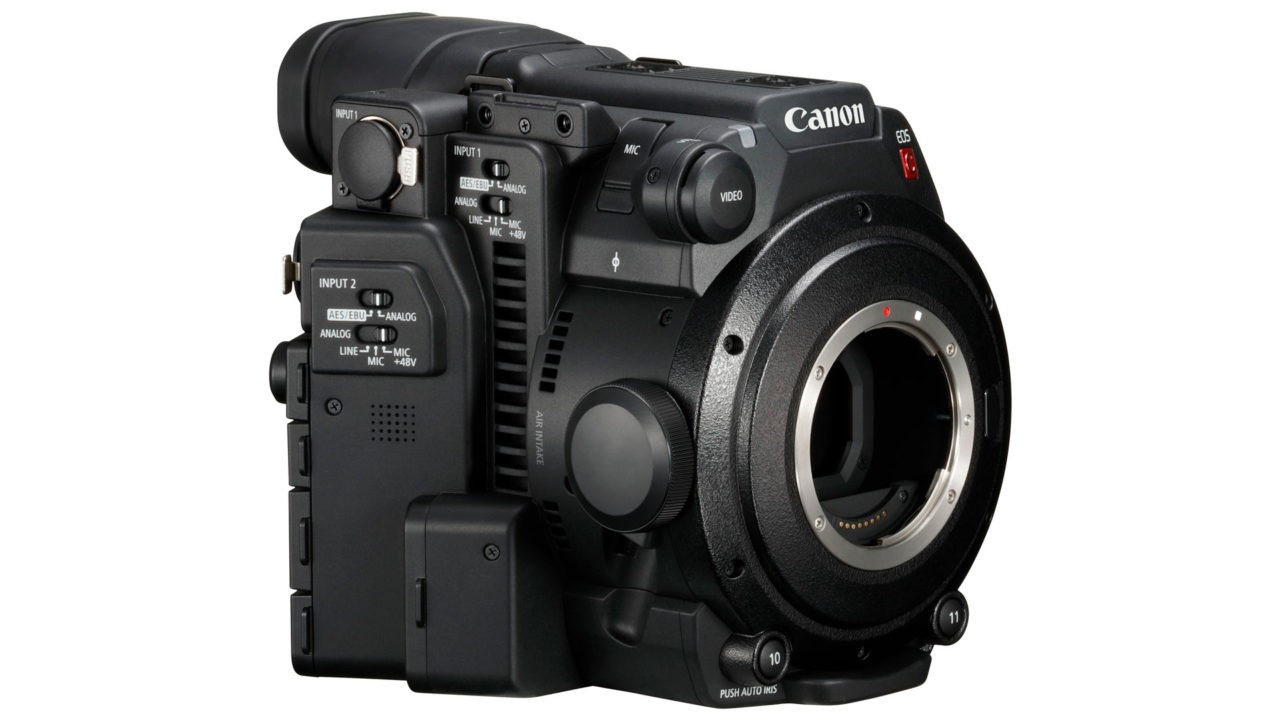

Canon EOS C200 4K Cinema Camera

• Super 35mm CMOS Sensor
• Internal 4K recording with Cinema RAW Light or MP4 format
• Continuous 120fps (maximum) High Frame Rate with no cropping at Full HD
• Up to 15-stops dynamic range (Cinema RAW Light)
• Professional high-quality image and audio
• Dual Pixel CMOS AF with touch control and extensive shooting functions
• Easy operation and flexible configuration

Image Sensor
 - Sensor Super 35mm type CMOS
 - System RGB primary colour filter (Bayer array)
 - Total pixels per sensor Approx. 9.84 megapixels (4206 x 2340)
 - Effective pixels per sensor Approx. 8.85 megapixels (4096 x 2160): When 4096 x 2160 or 2048 x 1080 is selected as the resolution
 - Approx. 8.29 megapixels (3840 x 2160): When 3840 x 2160 or 1920 x 1080 is selected as the resolution
 - Signal-to Noise Ratio 50.00 Hz mode: 53 dB (Typical)
[3840×2160/25.00P, Canon Log 3 Base sensitivity ISO800 (Dynamic range1600%),HDMI OUT]
 - Dynamic Range 15 Stops (CinemaRAW Light)13 Stops (MP4/Canon Log3)
Recording
 - RAW Recording options RAW (Cinema RAW Light)
 - Internal Recording Cinema RAW Light, MP4

 - Recording time (CFast 2.0™card) 128GB card 15 Mins (4K Cinema RAW Light 1Gbps VBR)
 - Recording time (SD Card) 128GB card 110 mins (MP4, 150Mbps) 485Mins (MP4, 35Mbps)
 - Recording Formats Cinema RAW Light, (CFast 2.0™¹) MP4 XF-AVC (SD card. XF-AVC²)

 - Recording Frame Rate  1) 59.94 Hz mode (59.94P/29.97P/23.98P)
                                          2) 50.00 Hz mode (50.00P/25.00P)
                                          3) 24.00 Hz mode (24.00P)
 - Slow/Fast motion YES
 - Interval Record YES
 - Frame Record YES
 - Pre Record (cache record) YES, 3 seconds
 - Relay Recording YES, SD Card recording only
 - Double Slot (simultaneous) Recording YES, SD Card recording only
 - Scan Reverse NO
 - HD->SD conversion NO
 - Photo storage media SD Card
 - Photo Recording Size 2048×1080 (when video image resolution is 4096×2160/2048×1080)
 - 3840×2160 (when video image resolution is 3840×2160)
 - 1920×1080 (when video image resolution is 1920×1080)

Inputs/Outputs
 - Audio in XLR x2, 3.5mm Audio, AES/EBU digital or Analog Audio input, Line, Mic, +48V Phantom  -      Power supported
 - Headphone output YES
 - HDMI YES, HDMI 2.0, output only. Max. output resolution 3840 x 2160.Timecode out compatible
USB YES. Mini-B Hi-Speed USB
 - 3G/HD-SDI output YES x 1.BNC jack
 - Video [HD]:SMPTE 292. [3G]:SMPTE 424, SMPTE 425
 - Audio [HD]:SMPTE ST 299-1. [3G]:SMPTE ST 299-2, Output impedance 75 Ω, Output signal level 0.8 Vp-p
 - Time code NO
 - Genlock NO
 - Synch NO
 - Component out NO
 - AV terminal NO
 - DC Output NO
 - DC input YES, 14.4V DC (Battery), 16.7V DC (DC-In)
 - Power Consumption 50.00P: Cinema RAW Light/MP4; 18.5W (Approx.)
 - Continuous Recording Time (battery) BP-A30 (3100mAh) 130 Min (Approx.) BP-A60 (6200mAh) 280 Mins (Approx.)
 - Cinema Raw Light/4096 x 2160 or MP4/3840 x 2160 recording
 - Remote Control Terminal YES, 2.5mm proprietary connector
 - Wireless Control Terminal Built-in Wi-Fi. FTP and Browser Remote/Preview
 - Lens terminal NO
 - Ethernet terminal YES. FTP CAPABLE, MP4 files only
 - Video connector (For Monitor or EVF) YES, Canon proprietary connection
