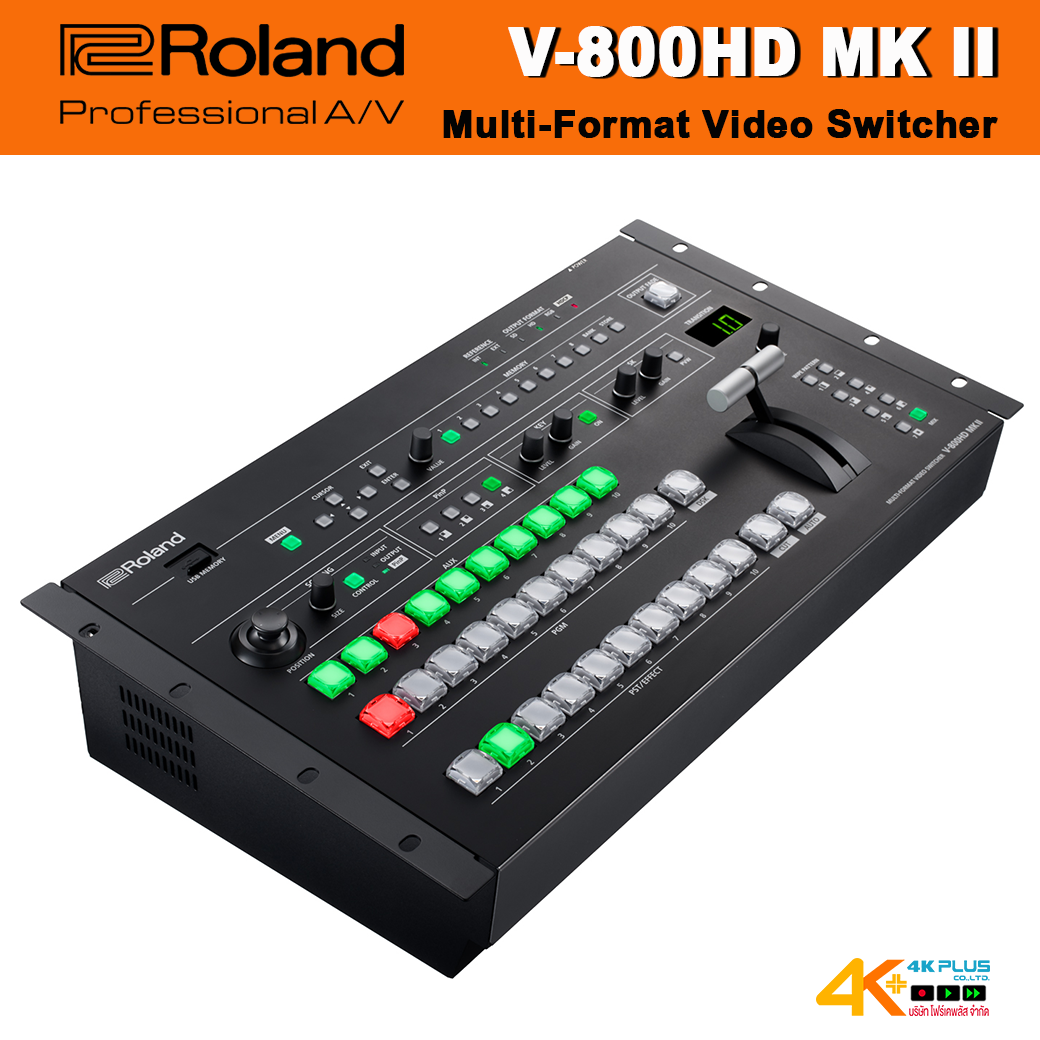

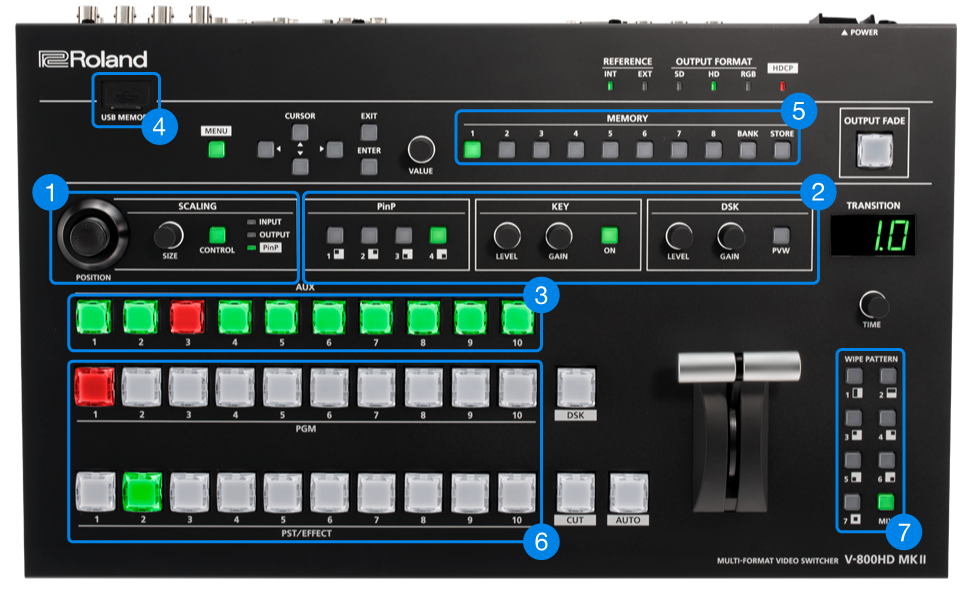

Roland V-800HD MK II MULTI-FORMAT VIDEO SWITCHER

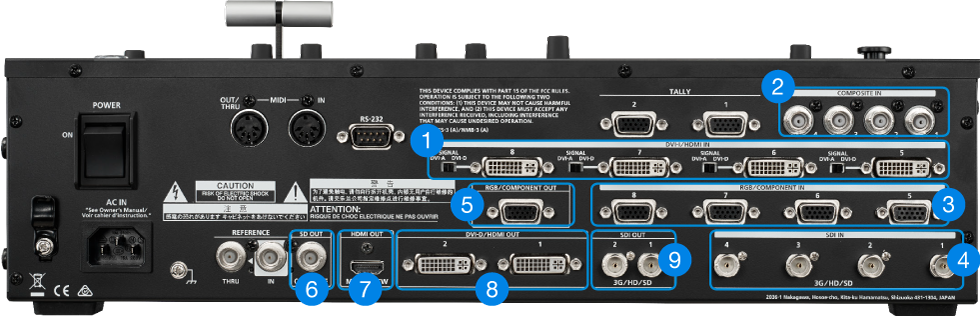

1 DVI-I/HDMI Input

Up to WUXGA, 1080p

A slider switch selects either DVI-D or DVI-A. Support for HDMI is also possible through use of a simple HDMI/DVI adapter. Supports HDCP input.



2 COMPOSITE Input

480i or 576i

The V-800HD MK II lets you use four analog composite inputs.



3 RGB/COMPONENT Input

Up to WUXGA, 1080p

Using a conversion cable lets you input analog component signals in addition to VGA type output from a computer.



4 SDI Input

Up to 1080p

The V-800HD MK II supports three formats of digital video signals: 3G, HD, and SD.



5 RGB/COMPONENT Output

Up to WUXGA, 1080p

The V-800HD MK II can accommodate projectors and other video devices that accept only analog input. What's more, the built-in scalers let you specify resolutions that differ from the main output resolution.



6 SD Output

480i or 576i

This provides a constant down-scaled composite signal regardless of the main output resolution.



7 Multiviewer Output

1080/60p with HDCP

Monitor your active input sources along with Program and Preview.



8 DVI-D/HDMI Output

Up to WUXGA, 1080p

The V-800HD MK II is equipped with two DVI-D/HDMI outputs for connecting displays/projectors and is HDCP-compatible.



9 SDI Output

Up to 1080p

Two SDI outputs are provided supporting 3G, HD, and SD signals.

VIDEO PROCESSING

Processing

4:4:4 (Y/Pb/Pr, RGB), 10-bit

SUPPORTED FORMATS

Video

480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p,1080/59.94i, 1080/50i, 1080/59.94p, 1080/50p

* SDI and Composite input can input the same frame rate as a setup menu setting.

PC

640 x 480/60 Hz (*1), 800 x 600/60 Hz (*1) (*3), 1024 x 768/60 Hz (*1),1280 x 768/60 Hz (*1), 1280 x 1024/60 Hz (*1), 1366 x 768/60 Hz (*1),1400 x 1050/60 Hz (*1), 1600 x 1200/60 Hz, 1920 x 1080/60 Hz, 1920 x 1200/60 Hz (*2)

* Conforms to VESA DMT Version 1.0 Revision 10

*1 Output refresh rate is 75 Hz when frame rate is set to 50 Hz

*2 Reduced blanking

*3 When Reference is set to External, the resolution of 800 x 600 and refresh rate of 60 Hz are no longer compliant with the VESA standard. This means that display on some devices may not be possible in this situation.

Still Image

Windows Bitmap File (.bmp)

* Maximum 1900 x 1200 pixels, 24-bit per pixel, uncompressed

INPUT/OUTPUT LEVEL AND IMPEDANCE

Composite

1.0 Vp-p, 75 ohms

Analog HD/RGB

0.7 Vp-p, 75 ohms (H, V : 5 VTTL)

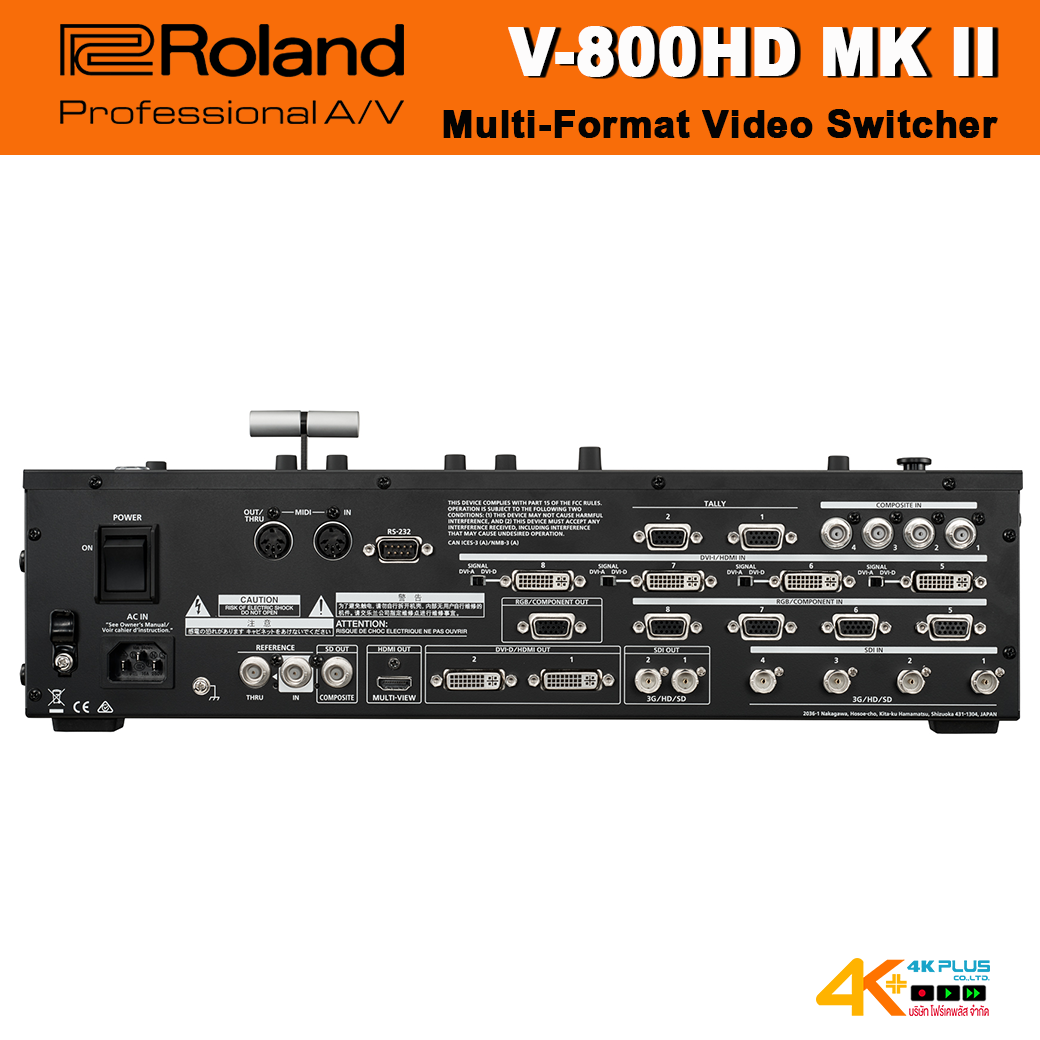

INPUT CONNECTORS

3G/HD/SD-SDI

BNC type x 4

* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C

DVI-I/HDMI

DVI-I type x 4

* Select DVI-A or DVI-D/HDMI using switch per channel

Analog Video (HD)

Component (Mini D-sub 15-pin type) x 4

* Combined use with Analog RGB

Analog Video (SD)

Composite (BNC type) x 4

* Select Composite or SDI using menu per channel

Analog RGB

Mini D-sub 15-pin type x 4

* Combined use with Analog Video (HD)

* Select DVI-D/HDMI or Analog RGB using menu per channel

OUTPUT CONNECTORS

3G/HD/SD-SDI

BNC type x 2

* Conforms to SMPTE 424M (Level-A, Level-B), 292M, 259M-C

DVI-D/HDMI

DVI-I type x 2, HDMI x 1 (for multi-view monitor)

Analog Video (HD)

Component (Mini D-sub 15-pin type) x 1

* Combined use with Analog RGB

Analog Video (SD)

Composite (BNC type) x 1

* Combined use with Analog Video (HD)

* Does not synchronize with Reference Input.

Analog RGB

Mini d-sub 15-pin type x 1

* Combined use with Analog Video (HD)

OTHER CONNECTORS

Tally

Mini D-sub 15-pin type x 2

* Input (max) : 12 V, 200 mA Open collector Type

Reference

BNC type (IN, THRU)

* Black Burst (Sync to frames), Bi-Level, Tri-Level

MIDI

5 pin DIN type (IN, OUT/THRU)

RS-232

D-sub 9 pin type x 1

USB port (host)

A type x 1 (for USB memory)

EFFECTS

Transition

Mix, Cut, Wipe (9 patterns)

Composition

PinP, DSK, Chrominance Key, Luminance Key, External Key

Others

Output Fade, Output Freeze

OTHERS

Power Supply

AC 115 V, AC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)

Power Consumption

75 W/0.7 A (115 V, 117 V)

75 W/0.4 A (220 V, 230 V, 240 V)

Operation Temperature

+0 to +40 degrees Celsius

+32 to +104 degrees Fahrenheit

Accessories

Owner's Manual, Power cord, Rack-mount angle x 2

SIZE AND WEIGHT

Dimensions

482 (W) x 275 (D) x 116 (H) mm

19 (W) x 10-7/8 (D) x 4-5/8 (H) inches

* When rack mount angles are fitted.

Weight

5.5 kg

12 lbs 3 oz
