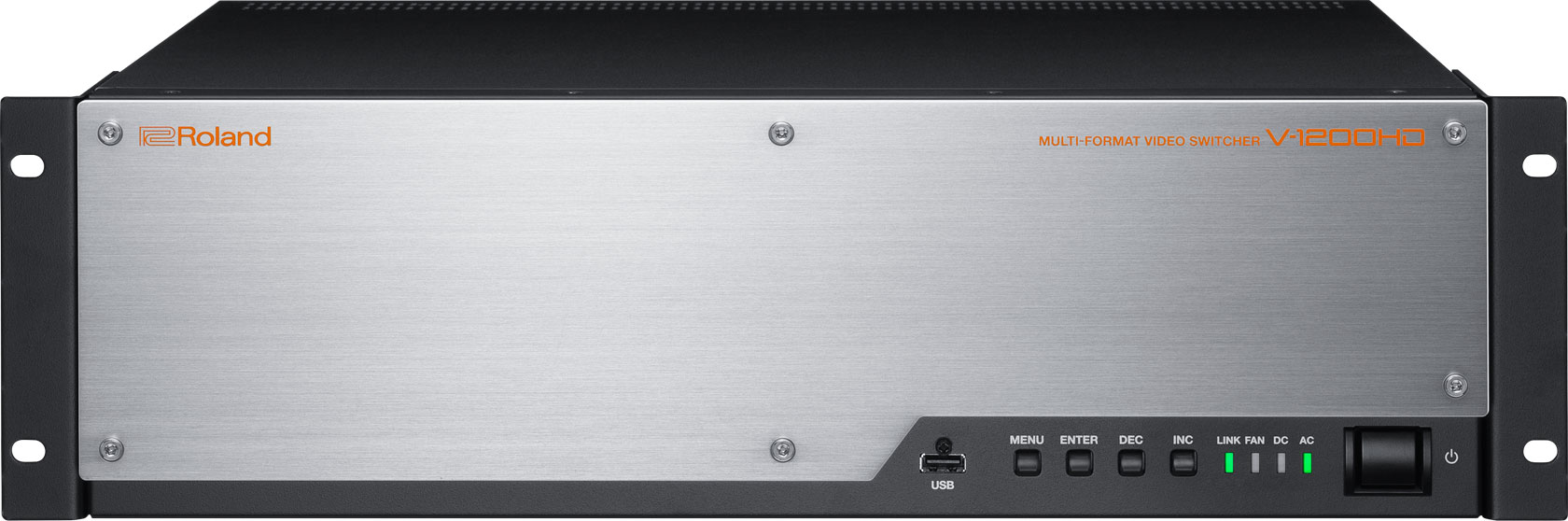

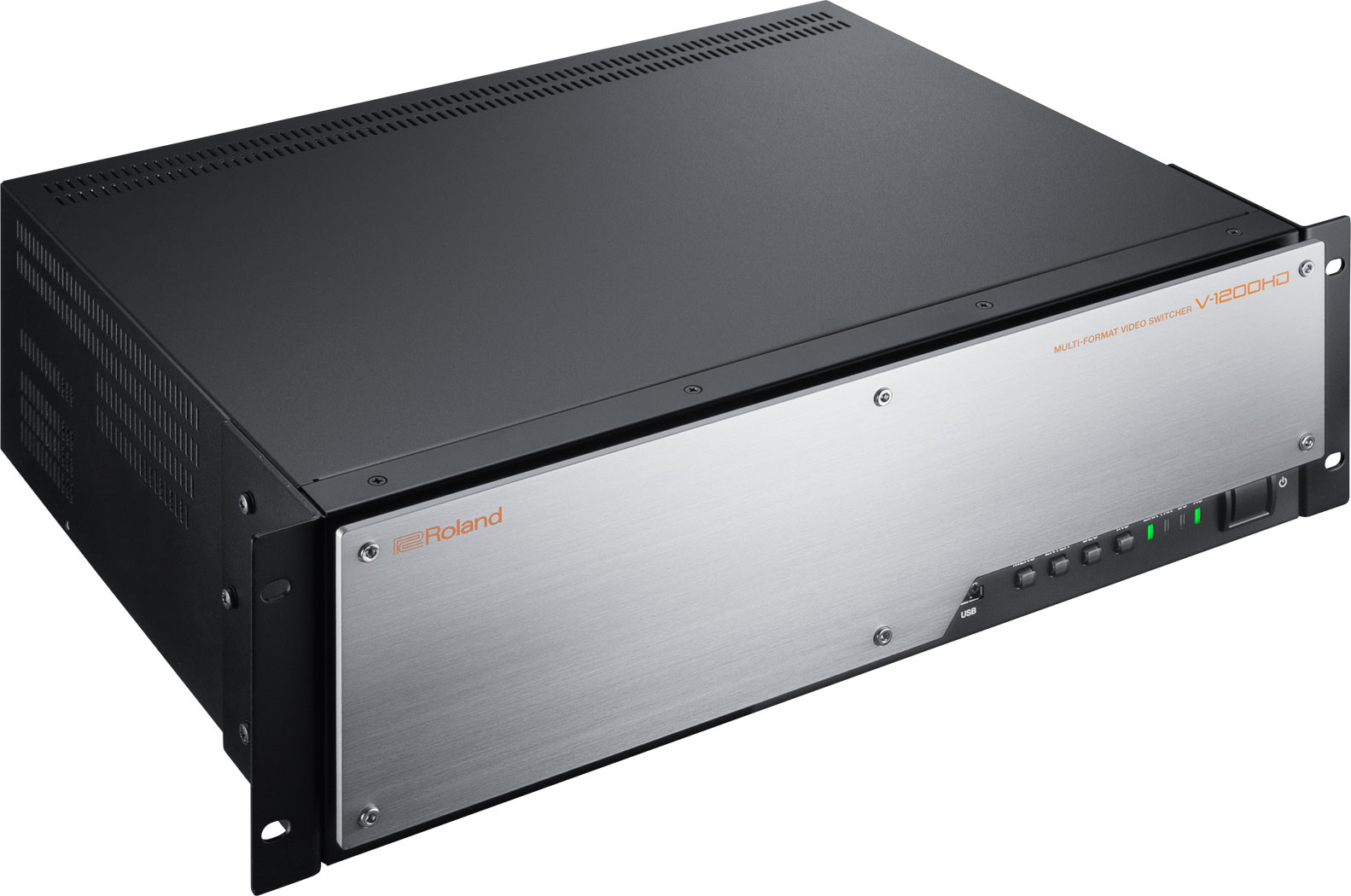

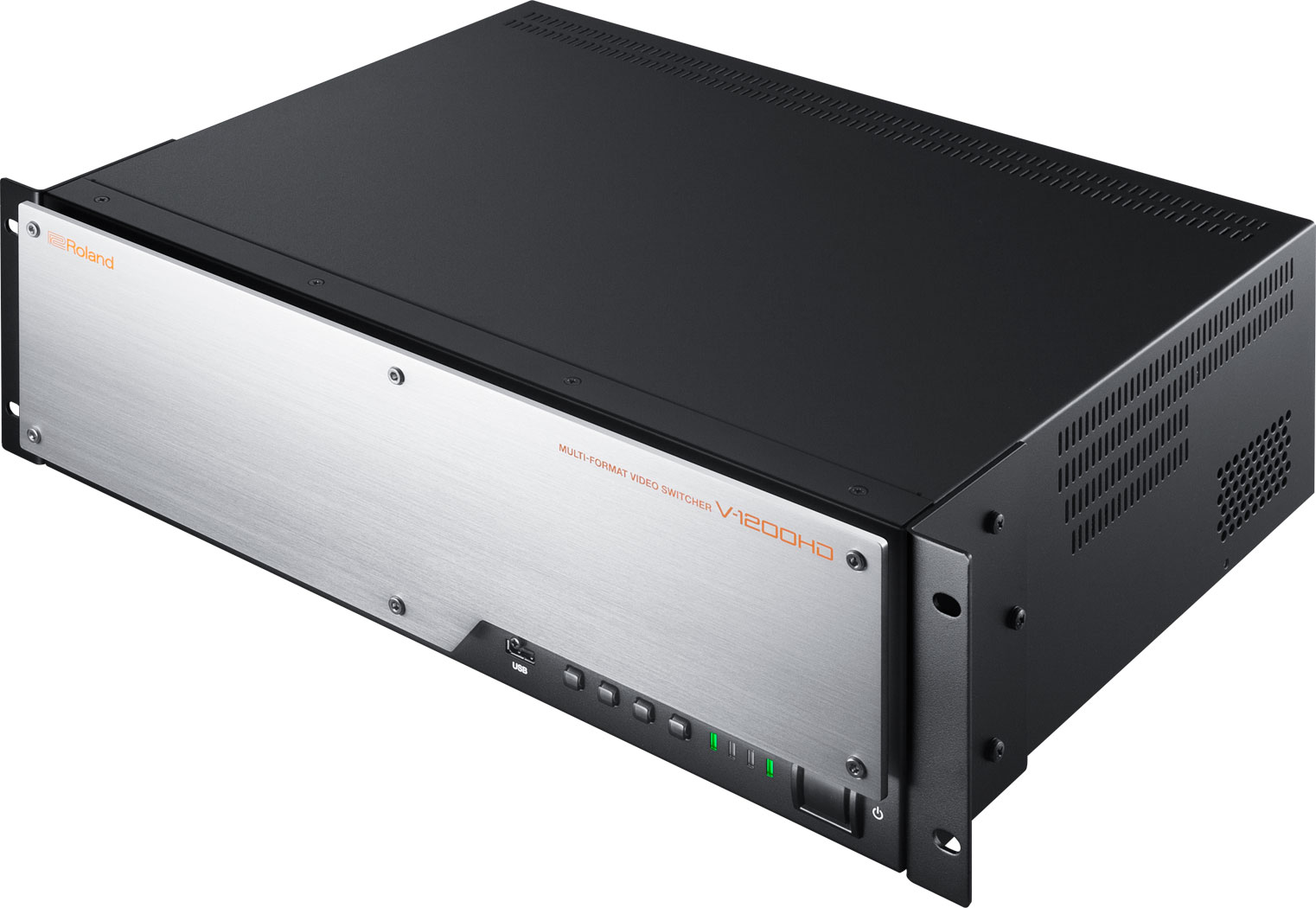

Roland V-1200HD 2 M/E Video Switcher and Processor for Broadcast

Roland V-1200HD 2 M/E Video Switcher and Processor for Broadcast

 A comprehensive and flexible multi-format video switcher giving you complete control of video sources, key layers and mixing engine configurations. The V-1200HD introduces a unique flexible hybrid engine with 4:2:2 broadcast switcher and 4:4:4 live event switcher. In addition to powerful video capabilities, the V-1200HD also has a built-in 16-channel audio mixer.


TECH SPECS
VIDEO

Processing4: 4: 4 (Y/Pb/Pr / RGB), 10-bit /

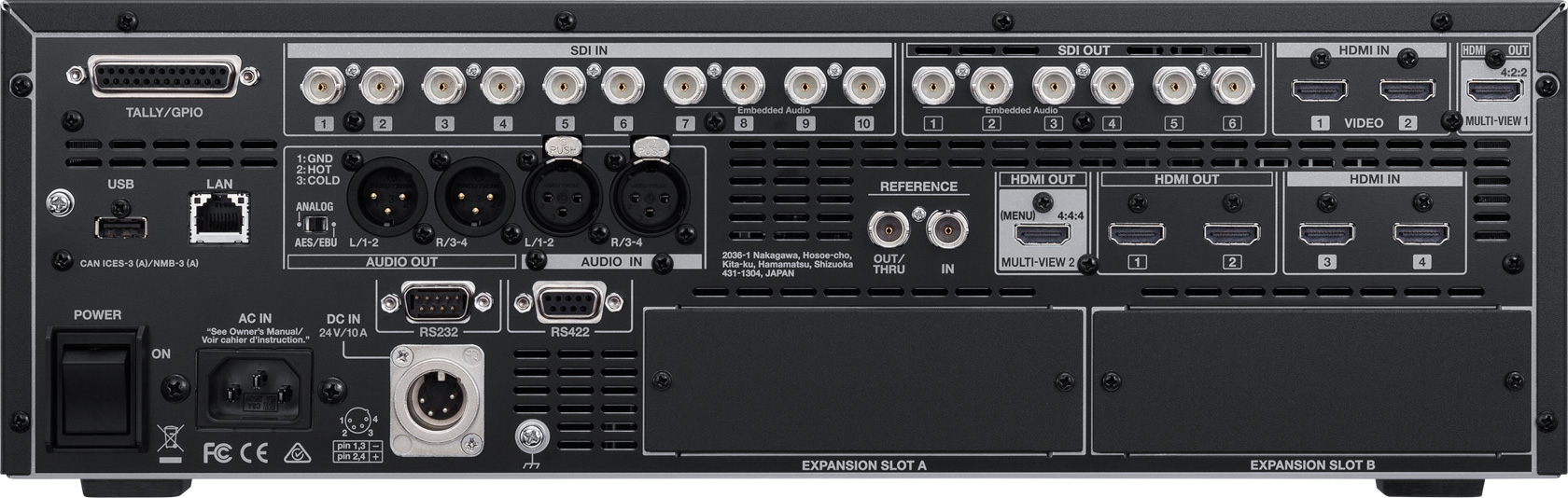

4: 2: 2 (Y/Pb/Pr), 10-bitInput Connectors3G/HD-SDI: BNC typx 10 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI: type A x 2 (HDMI INPUT 1--2) * HDCP Not supported
HDMI: type A x 2 (HDMI INPUT 3--4) * HDCP Supported., Multi-format Supported.Output Connectors3G/HD-SDI: BNC type x 6 * Conforms to SMPTE 424M (SMPTE 425M-AB), 292M
HDMI: type A x 2 (HDMI OUTPUT 1--2) * HDCP Supported
HDMI: type A x 2 (HDMI OUTPUT MULTI-VIEW 1 * HDCP Not required, 1080/59.94p)
(HDMI OUTPUT MULTI-VIEW 2 * HDCP Required, 1080/59.94p)FormatsSDI: 1080/59.94p, 1080/50p
* Conforms to SMPTE 274M
HDMI: 480/59.94i, 576/50i, 480/59.94p, 576/50p, 720/59.94p, 720/50p, 1024x768/60 (*1), 1280x720/60 (*1), 1280x800/60 (*1), 1366x768/60 (*1), 1280x1024/60 (*1), 1400x1050/60 (*1) ,1600x1200/60, 1920x1080/60, 1920x1200/60
* Conforms to CEA-861-E, VESA DMT Version 1.0 Revision 11
* The output format of HDMI1,2 and SDI is always the same.
* Frame rate is 59.94(NTSC) or 50(PAL)
* MULTI-VIEW 1,2 output is 1080/60p always.
Output refresh rate is 75 Hz when frame rate is set to 50Hz.Effects
(4:2:2 Processing)M/E: 1M/E, 1.5M/E, 2M/E (9 types)
Transition: Mix, NAM (*2), FAM (*2), Cut, Wipe
Composition (Keyer): 4 (PinP, Luminance Key, Chroma Key, External Key supported)
AUX: 2
Others: Output Fade, Output Freeze, Output Capture, Composition Edit, SDI Output Patchbay
*These effects depends on M/E type.
(*2) PGM/PST onlyEffects
(4:4:4 Processing)M/E: 1M/E, Matrix, Scaler
Input: 4 (4:2:2 Processing outputs x 2, HDMI INPUT 3, HDMI INPUT 4)
Transition: Mix, Cut
Composition (Keyer): 1 (PinP, Luminance Key)
Others: HDCP Supported, Output Fade, Output Cropping, Signal Generator.
*These effects depends on M/E type.Still ImageStill Image Inputs: 2, Internal Memory: 16, Maximum 1920x1080 pixels
Format: Windows Bitmap File (.bmp ) 24 bit per pixel, uncompressed, Portable Network Graphic File (.png) * Alpha channel Supported.
MultiviewerMULTI-VIEW 1 (4:2:2 Processing): 16/10 screens, Label, Tally * HDCP Supported
MULTI-VIEW 2 (4:4:4 Processing): 4 screens, Label, Tally, OSD Setup Menu
* HDCP Required

AUDIO
ProcessingSampling Rate : 24 bits/48 kHzInput Connectors3G/HD-SDI: BNC type x 4 (Ch7-10), HDMI: type A x 4, AUDIO IN (XLR/TRS) L (1/2),R (3/4)
* Analog Audio or AES/EBUOutput Connectors3G/HD-SDI: BNC type x 4 (Ch1-4), HDMI: type A x 2, AUDIO OUT (XLR/TRS) L (1/2),R (3/4)
* Analog Audio or AES/EBUInput Level and ImpedanceAUDIO IN: +4dBu (Maximum: +22dBu, 15k ohms)Output Level and ImpedanceAUDIO OUT: +4dBu (Maximum: +22dBu, 600 ohms)FormatsSDI: Linear PCM, 24bits, 48kHz, 16ch * Conforms to SMPTE 299M
HDMI: Linear PCM, 24bits, 48kHz, 2ch
AES/EBU: Linear PCM, 24bits, 48kHz, 4chEffectsPatchbay: 92 inputs x 92 outputs Delay: 16ch
Mixer: 16ch, channel Effects: 3-Band EQ, Delay Master Effects: Mastering, 3-Band EQ, Reverb

OTHERS
Expansion SlotSlot: 2
*The video a maximum of 2 inputs 2 outputs and the audio a maximum of 16 inputs 16 outputs can treat in 2 slots sum total.ReferenceInput: BNC type x 1
*Black Burst (Sync to frames), Bi-Level, Tri-Level
Output/Through: BNC type x 1
*Black Burst (Sync to frames)External ConnectorsRS-232: DB-9 type (Male) x 1 *for Remote Control
RS-422: DB-9 type (Female) x 1 *for VISCA Control
TALLY/GPIO: DB-25 type (Female) x 1 (Input: 8, Output/Tally: 16)
LAN: RJ45 100BASE-TX (Connect to V-1200HDR or Computer (V-1200HD RCS))
USB: A type *USB MemoryMemory8 * Last Memory FunctionUser Function Button32 * 16 buttons x 2 banksRemote Camera ControlRS-422: D-Sub 9 pin type x 1 Protocol: VISCARemote ControllerV-1200HDR Control Surface * Option
V-1200HD RCS * Windows7 or later / Mac OSXPower SupplyAC 117 V, AC 220 V, AC 230 V, AC 240 V (50/60 Hz)
DC 24 V (XLR-4-32 type)
* Redundant Power SupplyOperation Temperature+0 to +40 degrees Celsius +32 to +104 degrees FahrenheitDimensions482 (W) x 357 (D) x 133 (H) mm
19 (W) x 14-1/16 (D) x 5-1/4 (H) inches
* EIA-3U rack mount sizeWeight9.0 kg 19 lbs 14 ozAccessoriesPower Cord, Rubber Feet (4), Owner’s Manual
