AV800HD

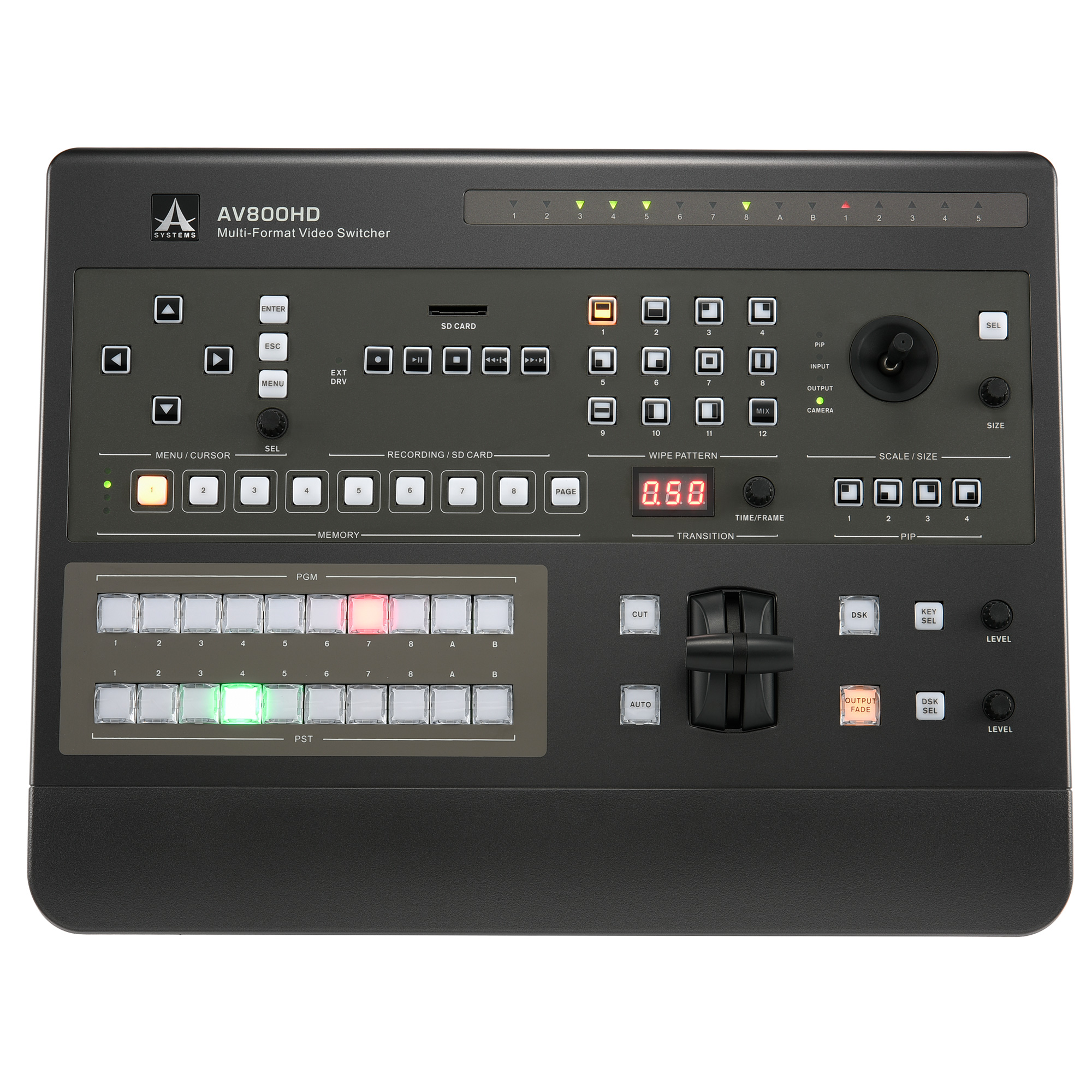

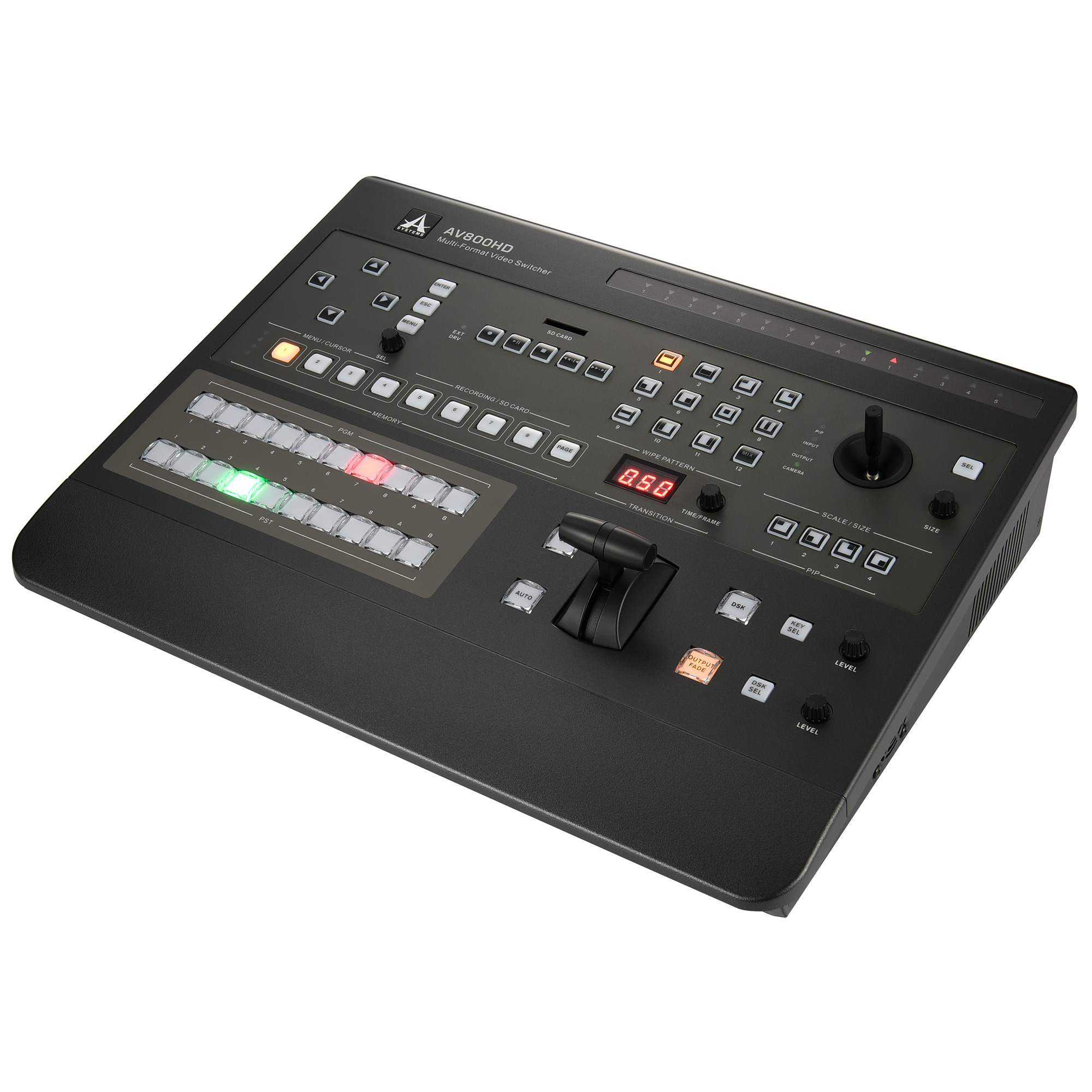

The AV800HD Multi-Format Video Switcher puts breathtaking production capabilities at your fingertips. With 8 multi-format video inputs and a fully configurable, 10 cross-point button array, the AV800HD combines several AV production tools in one package, including audio mixer, digital video effects (DVE) processor, and frame synchronizer.

Thanks to the AV800HD’s built-in digital video effects processor, you can mix and match video formats without the need to adjust video size, resolution, or scale. Plus, you can mix and edit effects to make smooth transitions between channels to polish your productions with the sheen of professional-looking video. Using the ergonomically optimized control panel, you can scale, stretch, crop and zoom as your creative muse directs. For added creativity, the switcher offers a wide selection of wipe patterns and features a high-quality Chroma key for green screen applications in broadcast and production.

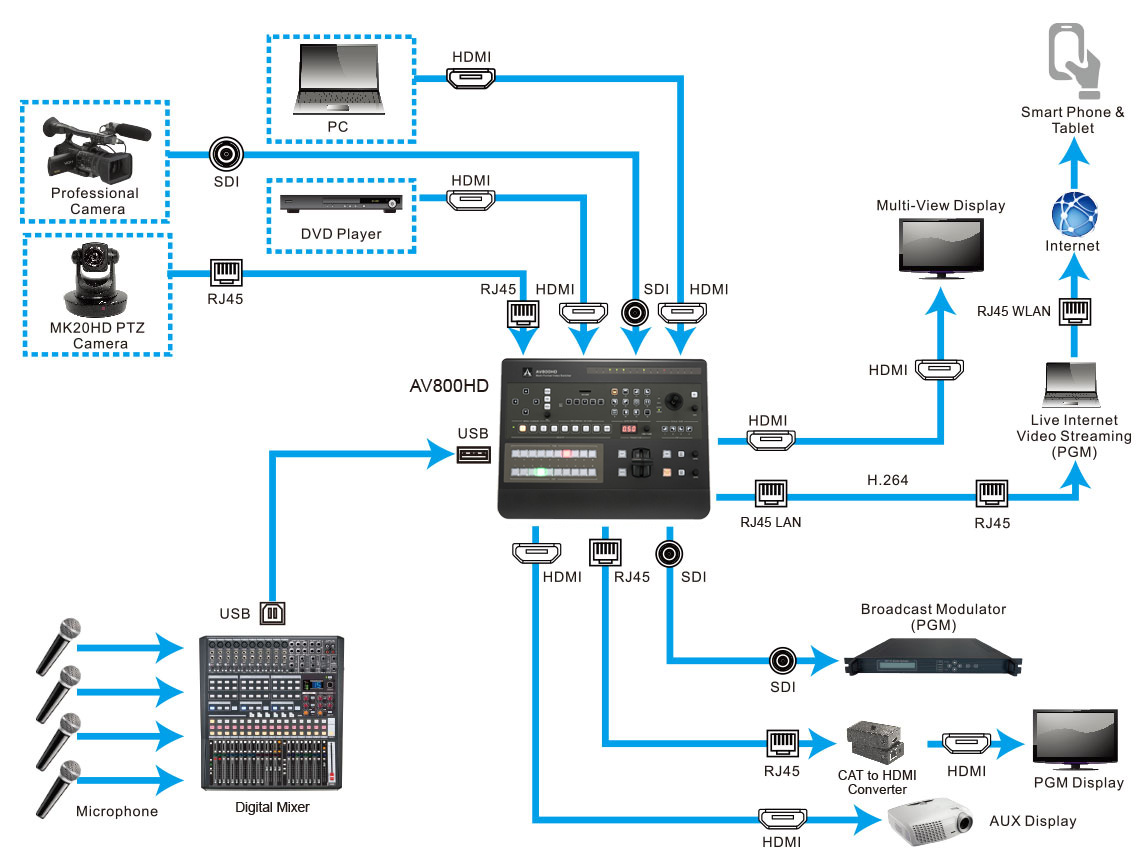

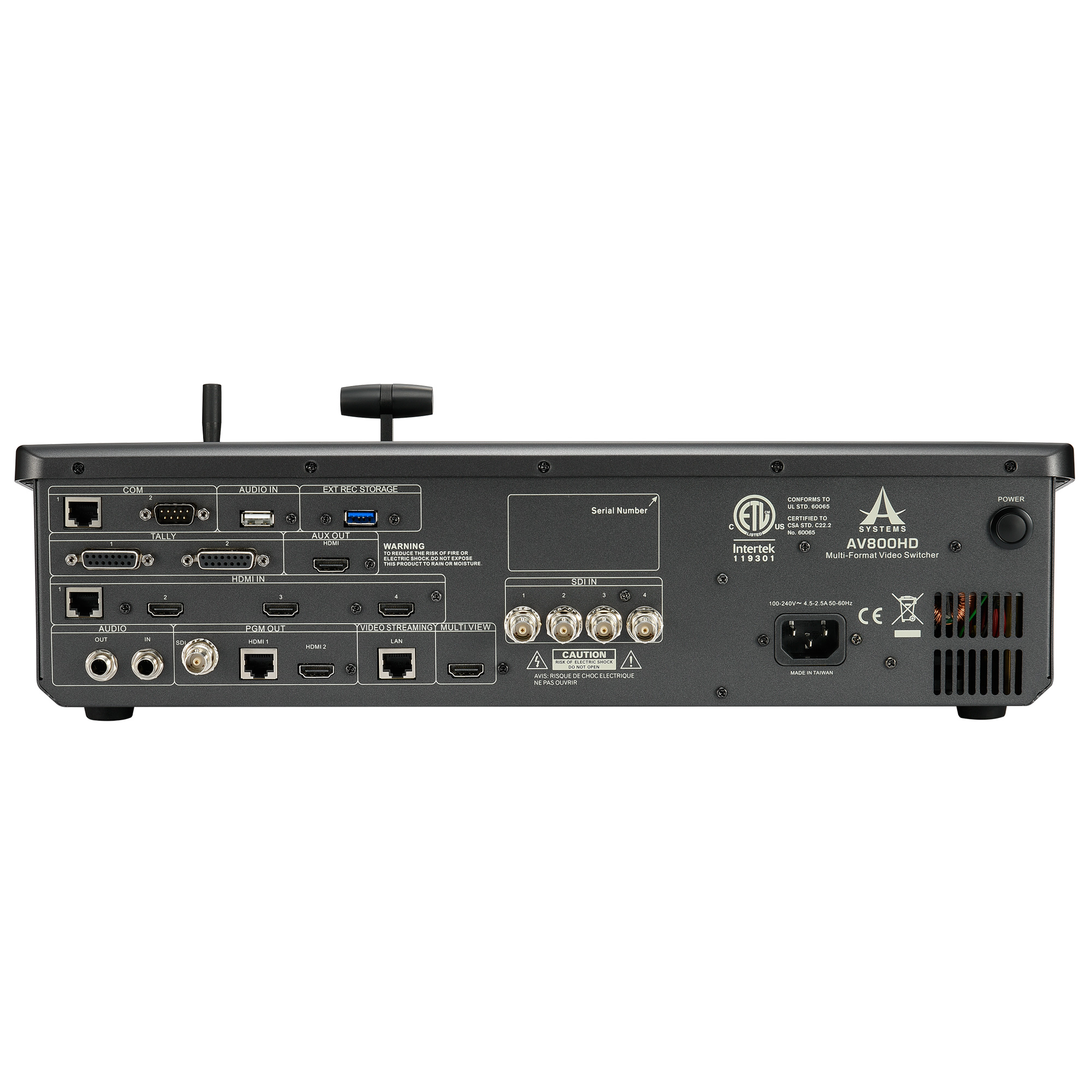

The AV800HD has 5 video outputs, internal memory with 32 user-defined presets, and SMPTE time code support for synchronizing video and audio. The AV800HD is the only multi-format switcher in its class to offer unique and powerful features such as, video I/O over long CAT 5 cable runs; USB audio input; joystick control for pan-tilt-zoom (PTZ) camera control via RS-422 digital connection; HD 1080p recording to USB drive; SDI outputs that allow routing to ISO recorders, projectors, and overflow rooms; and scalers on every input for picture-in-picture (PIP), keying, fades, and dissolves without limitation.
