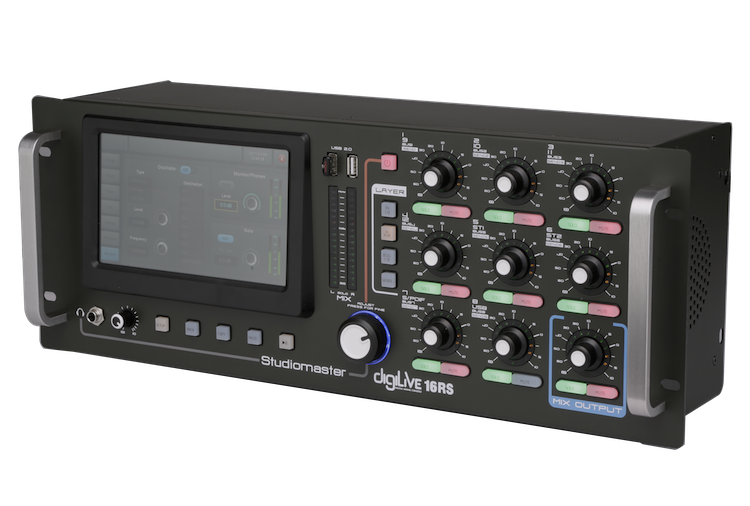

DIGILIVE 16RS Digital Mixing Console 12 MIC Input 2 Stereo มิกซ์เซอร์ ดิจิตอลใส่แรค

The mixers share the same 16-input, 16-bus, 8-effect bus format of the digiLivE 16. The 16RS features two LR master outputs on XLR connectors and six configurable ‘smart’ outputs, while the 16P-600 has four ‘smart’ XLR outputs and 4 x 150W RMS (4Ω) class-D power amplifiers. The 16 inputs are configured as 12 mic/line and two stereo on both models, and both also sport digital SPDIF I/O and AES-EBU output and USB interface.

The mixers share the same 16 input, 16 bus, 8 FX bus format of the digiLivE 16 compact mixer, introduced last year. The 16RS features two XLR L/R master outs and six configurable ‘smart’ outputs, and the 16P-600, four ‘smart’ XLR outputs and four 150 W RMS class-D power amplifiers. The 16 inputs are configured as 12 mic/line and 2 stereo on both models, and both also sport digital S/PDIF I/O and AES-EBU output, as well as a USB interface.

With 40-bit floating-point SHARC processing, 192kHz, 24-bit AD/DA, the 16RS and 16P-600 offer high-quality audio at new budget level. All settings including faders (uniquely at this price point) are fully recallable. Touchscreen and iPad operation (with the iOS app) is exceptionally straightforward, making these mixers suited to applications and installations where no dedicated operator is present.

Features

• 16 input with 16 internal busses
• 12 digital gain mic input channels
• 2 stereo inputs
• 8 configurable smart outputs
• 7″ high resolution touch screen
• Ultra compact unit size
• Advanced hybrid user interface
• Full iOS Tablet control

Tech Specs
Mic Inputs: 12 (8x XLR / 4x Combo XLR)
Stereo Inputs: 2
Master Output: 2 (Left/Right balanced XLR)
Smart Outputs: 6 (assignable balanced XLR)
Internal busses: 16
Stage monitor: 1 TRS Jack output
Headphone: 1 TRS Jack output
Screen: 7″ high definition touch screen
Operation system: Android system
Remote system: IOS app for Ipad
Network: Yes, via WiFi module
Sample Frequency: 48 KHz
AD/DA: 192 KHz, 24-bit
DSP: 40 bit float point, SHARC processor
Effects: up to 8 assignable effect modules
AES/EBU: Output XLR
S/PDIF: Input / Output (RCA Phono)
USB Interface: 2 for playback/recording, scene/setting storage and system updates
Power Supply: 90-240V ~ 50/60Hz IEC power supply

More: www.studiomaster.com
