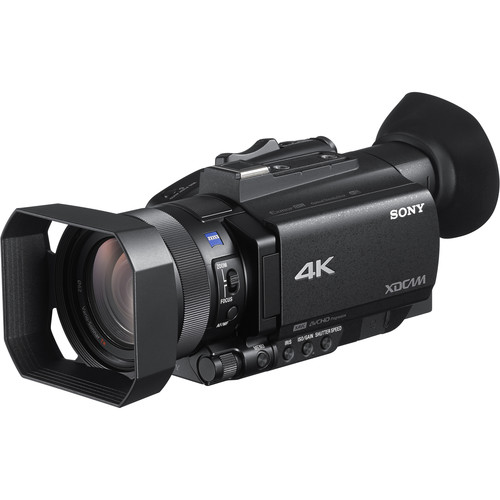

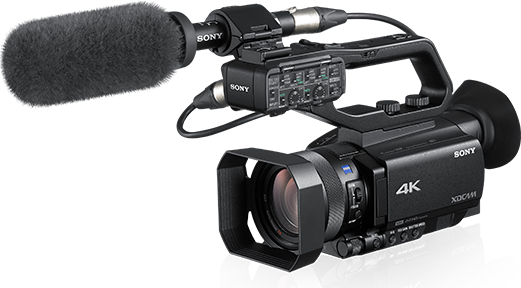

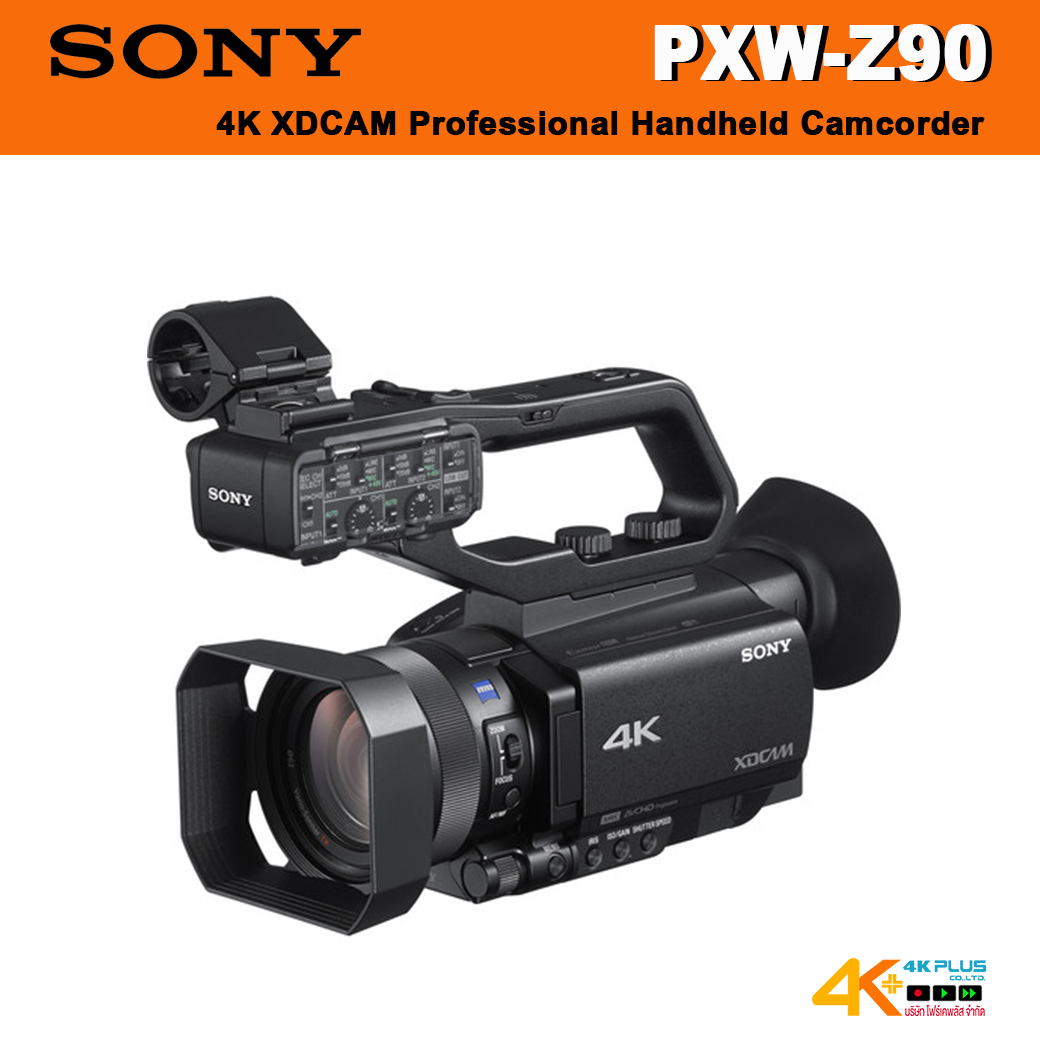

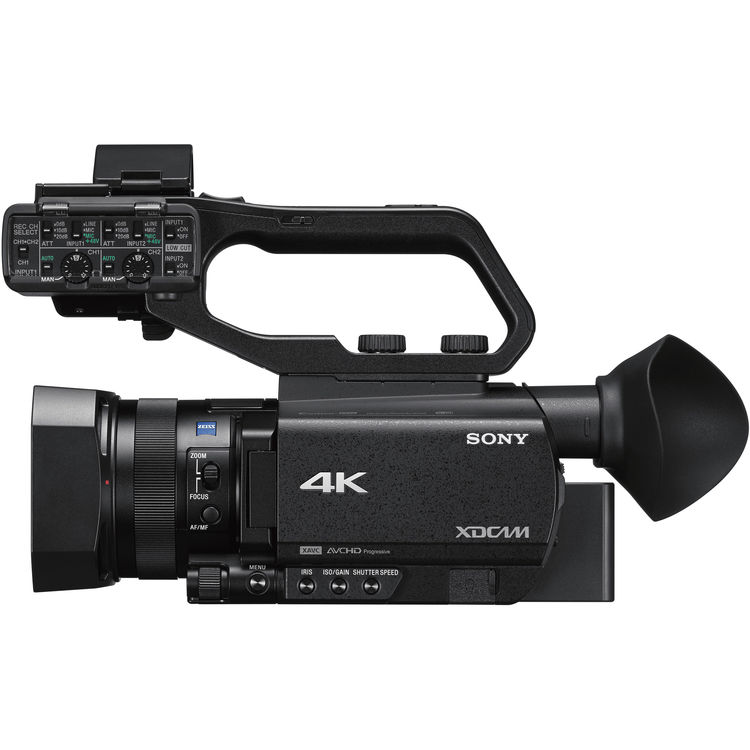

Sony PXW-Z90 4K XDCAM Camcorder 3G-SDI and HDMI

Sony PXW-Z90 4K XDCAM Camcorder 3G-SDI and HDMI
Sony PXW-Z90 4K XDCAM Camcorder 3G-SDI and HDMISony PXW-Z90 4K XDCAM Camcorder 3G-SDI and HDMISony PXW-Z90 4K XDCAM Camcorder 3G-SDI and HDMISony PXW-Z90 4K XDCAM Camcorder 3G-SDI and HDMISony PXW-Z90 4K XDCAM Camcorder 3G-SDI and HDMI
รหัสสินค้า PXW-Z90
หมวดหมู่ กล้องวิดีโอ SONY
ราคาปกติ 126,900.00 บาท
ลดเหลือ 98,900.00 บาท
VAT7% ราคาสินค้ารวมภาษีมูลค่าเพิ่ม7% แล้ว
สต๊อกสินค้า เช็คสินค้าอัปเดตกับทางร้านเท่านั้น
สถานะสินค้า พร้อมส่ง
อัพเดทล่าสุด 9 พ.ค. 2567
จำนวน
ตัว
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : "Sony PXW-Z90 4K XDCAM Camcorder", "Sony PXW-Z90 ขาย", " Sony PXW-Z90 ราคา", Sony PXWZ90 ขาย, "จำหน่ายกล้องวีดีโอ Sony PXW Z90", "ขายกล้อง Sony PXW-Z90 4K XDCAM Camcorder", "กล้องวีดีโอรุ่นใหม่ของ Sony Z90", Sony pxwz90, "PXW Z90 ขาย", "Sony Z90 ขาย", "HXR-NX80", "จำหน่ายกล้องวีดีโอ Sony HXR NX80", ขายกล้องวีดีโอโซนี่ Z90, "SONY PXW-Z90", "Sony Z90", กล้องวิดีโอมี SDI และ HDMI เอาท์พุต, "PXW-Z90", "Z90", "กล้องโซนี่ รุ่นทดแทน PWX-X70", "Sony in Thailand", "Sony"

รายละเอียดสินค้า

กล้องวิดีโอ รองรับ 4K มี SDI และ HDMI เอาท์พุต

จำหน่ายกล้อง Sony PXW-Z90 4K XDCAM Camcorder 3G-SDI and HDMI
**ไมค์ Shotgun หัวกล้องต้องซื้อเพิ่มเติม (Option)



Features

  • 4K full-pixel readout without pixel binning
  • Enhanced BIONZ X image processing engine
  • Super Slow Motion recording up to 960fps (quality varies)
  • Full HD recording up to 120fps
  • S-Log3/S-Gamut3
  • 29mm (35mm equivalent) wide-angle ZEISS lens
  • 12x optical zoom lens and 18x Clear Image Zoom
  • MI multi-interface shoe for cable-less audio (with Sony UWP-D11 for example)
  • Record onto SD cards
  • 10bit 422 in Full HD XAVC-Long GOP
  • UHD is 8bit 420
  • PXW-Z90 features 3G-SDI and HDMI
  • 2.4 Ghz and 5 Ghz with QoS Streaming
Tech Specs
General
Mass
Approx 1020g (with lens hood, eyecup)
Approx. 2 lb 4.0 oz (with lens hood,eyecup)
Approx. 1390g (with lens hood, handle, eyecup, NP-FV70A battery)
Approx. 3lb 1oz (with lens hood, handle, eyecup, NP-FV70A battery)
Dimensions
(W x H x D) 121.0mm×104.0mm×274.5mm
(With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)
4 7/8 x 4 1/8 x 10 7/8 inches
(With the accessories (lens hood, large eyecup) ,excluding the grip belt and including the projecting parts)
130.0 x 181.5 x 287.0 mm
(With the accessories (lens hood, large eyecup, XLR handle unit) , excluding the grip belt and including the projecting parts)
5 1/8 x 7 1/4 x 11 3/8 inches
(With the accessories (lens hood, large eyecup, XLR handle unit) , excluding the grip belt and including the projecting parts)

Power Requirements
DC In: 8.4V
Battery: 7.4V
Power Consumption
Approx. 6.5 W(while recording with viewfinder and XAVC QFHD 2160/30p 60Mbps)
Approx. 6.9 W (while recording with LCD and XAVC QFHD 2160/30p 60Mbps)
Operating Temperature
0°C to 40°C
32°F to 104°F
Storage Temperature
-20°C to +60°C
-4°F to +140°F
Battery Operating Time
Approx. 140min. with NP-FV70A battery (while recording with LCD, XAVC QFHD 2160/30p, 60Mbps)
Approx. 265 min. with NP-FV70A battery (while playing with LCD, XAVC QFHD 2160/30p, 60Mbps)

Recording Format (Video)
XAVC QFHD : MPEG-4 AVC/H.264 4:2:0 Long profile
XAVC HD : MPEG-4 AVC/H.264 4:2:2 Long profile
XAVC Proxy : MPEG-4 AVC/H.264 4:2:0 Long profile
MPEG HD422 (CBKZ-SLMP required) : MPEG-2 422P@HL 4:2:2 Long profile
MPEG HD420 (CBKZ-SLMP required) : MPEG-2 MP@HL 4:2:0 Long profile
MPEG HD Proxy (CBKZ-SLMP required) : MPEG-4 AVC/H.264 4:2:0 Long profile
AVCHD : MPEG-4 AVC/H.264 AVCHD 2.0 format compatible

Recording Format (Audio)
XAVC QFHD : Linear PCM 2ch, 24bit, 48kHz
XAVC HD : Linear PCM 2ch, 24bit, 48kHz
XAVC Proxy : AAC-LC 2ch、16bit、48kHz
MPEG HD422 (CBKZ-SLMP required) : Linear PCM 2ch, 24bit, 48kHz
MPEG HD420 (CBKZ-SLMP required) : Linear PCM 2ch, 16bit, 48kHz
MPEG HD Proxy (CBKZ-SLMP required) : AAC-LC 2ch、16bit、48kHz
AVCHD : Linear PCM 2ch, 16bit, 48kHz / Dolby Digital 2ch, 16bit, 48kHz

Recording Frame Rate
XAVC QFHD (3840 x 2160) @29.97p, 25p, 23.98p 100Mbps/60Mbps
XAVC HD (1920 x 1080) @59.94p, 50p, 29.97p, 25p, 23.98p, 50Mbps/35Mbps
XAVC HD (1920 x 1080) @59.94i, 50i, 50Mbps/35Mbps/25Mbps
XAVC HD (1280 x 720) @59.94p, 50p, 50Mbps
XAVC Proxy (1280 x 720) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
XAVC Proxy (640 x 360) @59.94p, 50p, 29.97p, 25p, 23.98p, 3Mbps
MPEG HD422 (1920 x 1080) (CBKZ-SLMP required) @59.94i, 50i, 29.97p, 25p, 23.98p, 50Mbps
MPEG HD422 (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, 50Mbps
MPEG HD420 (1920 x 1080) @59.94i, 50i, 29.97p, 25p, 23.98p, HQ mode(35Mbps)
MPEG HD420 (1440 x 1080) (CBKZ-SLMP required) @59.94i, 50i, HQ mode(35Mbps)
Recording Frame Rate (Cont.) MPEG HD420 (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, HQ mode(35Mbps)
MPEG HD Proxy (1280 x 720) (CBKZ-SLMP required) @59.94p, 50p, 29.97p, 25p, 23.98p, 9Mbps
MPEG HD Proxy (640 x 360) (CBKZ-SLMP required) @59.94p, 50p, 29.97p, 25p, 23.98p 3Mbps
AVCHD (1920 x 1080)@59.94p, 50p, PS mode (28Mbps)
AVCHD (1920 x 1080) @59.94i/50i FX mode (24Mbps) FH mode(17Mbps)
AVCHD (1920 x 1080) @29.97p/25p/23.98p, FX mode (24Mbps)
AVCHD (1440 x 1080)@59.94i, 50i LP mode (5Mbps)
AVCHD (1280 x 720)@59.94p, 50p, HQ mode (9Mbps)

Recording/Playback Time
XAVC QFHD @LPCM 2ch 100 Mbps
Approx. 65 min with 64 GB memory card
XAVC QFHD @LPCM 2ch 60 Mbps
Approx. 100 min with 64 GB memory card
XAVC HD @LPCM 2ch 50 Mbps
Approx. 120 min with 64 GB memory card
XAVC HD @LPCM 2ch 35 Mbps
Approx. 170 min with 64 GB memory card
XAVC HD @LPCM 2ch 25 Mbps
Approx. 220 min with 64 GB memory card
MPEG HD422 (CBKZ-SLMP required) @LPCM 2ch 50 Mbps
Approx. 110 min with 64 GB memory card
MPEG HD420 (CBKZ-SLMP required) @LPCM 2ch HQ Mode
Approx. 170 min with 64 GB memory card
AVCHD @LPCM 2ch PS Mode
Approx. 305 min with 64 GB memory card
AVCHD @LPCM 2ch FX Mode
Approx. 360 min with 64 GB memory card
Recording/Playback Time (cont.) AVCHD @LPCM 2ch FH Mode
Approx. 495 min with 64 GB memory card
AVCHD @LPCM 2ch HQ Mode
Approx. 880 min with 64 GB memory card
AVCHD @LPCM 2ch LP Mode
Approx. 1540 min with 64 GB memory card

Lens
Lens Mount Fixed
Zoom Ratio 12x (optical), servo
Focal Length f=9.3 - 111.6mm
equivalent to f=29.0 - 348.0mm on 35 mm lens(16:9)
equivalent to f=32.8 - 393.6mm on 35mm lens(3:2)
Iris F2.8 - F4.5
auto/manual selectable
Focus AF/MF selectable
10 mm to ∞ (Wide)
1000 mm to ∞ (Tele)
Image Stabilizer ON/OFF selectable, shift lens
Filter Diameter M62 mm

Camera Section

Imaging Device
(Type) 1.0-type (13.2mm x 8.8mm) back-illuminated Exmor RS CMOS sensor
Effective Picture Elements
Approx.14.2M pixels(16:9)/Approx.12.0M pixels(3:2)
Built-in Optical Filters
OFF: Clear, 1: 1/4ND, 2: 1/16ND, 3: 1/64ND
Minimum Illumination
Standard [60i] 3lux(1/60 Shutter Speed, gain 33dB)
Standard [50i] 3lux(1/50 Shutter Speed, gain 33dB)
LowLux [60i] 1.7lux(1/30 Shutter Speed, gain 33dB)
LowLux [50i] 1.7lux(1/25 Shutter Speed, gain 33dB)
Shutter Speed [60i]: 1/8 - 1/10,000 (1/6 - 1/10,000 when shooting with 24p) [50i]: 1/6 -1/10,000
Slow & Quick Motion Function [60i]:2160p:Frame rate selectable 1,2,4,8,15,30fps
[50i]:2160p:Frame rate selectable 1,2,3,6,12,25fps
[60i]:1080p:Frame rate selectable 1,2,4,8,15,30,60,120fps
[50i]:1080p:Frame rate selectable 1,2,3,6,12,25,50,100fps
Super Slow Motion [60i]1080p:Frame rate selectable 240,480,960fps
[50i]:1080p:Frame rate selectable 250,500,1000fps
White Balance Preset（Indoor:3200K, Outdoor:5600K±7 steps, Color temparature set range:2300-15000K)
Onepush A, B, Auto selectable
Gain -3, 0, 3, 6, 9, 12,15, 18, 21, 24, 27, 30, 33 dB, AGC
Gamma Curve Selectable

Input/Output

Audio Input
XLR-type 3-pin (female) (x2), line/mic/mic +48 V selectable
Video Output
Integrated into Multi/Micro USB jack（×1）, Composite 1.0Vp-p, 75Ω
Audio Output
Integrated into Multi/Micro USB jack
SDI Output
BNC (x1), 3G/HD/SD
SMPTE 424M/292M/259M standards
USB Multi/Micro USB jack (x1)
Headphone
Output Stereo mini jack (x1)
Speaker Output Monaural
DC Input DC jack
Remote Integrated into Multi/Micro USB jack
Stereo mini-mini jack (Φ2.5mm)
HDMI Output Type A (x1)

Monitoring
Viewfinder 1.0cm（0.39 type）OLED
Approx. 2.36M dots
LCD 8.8cm（3.5 type)
Approx. 1.56M dots
Built-in Microphone
Built-in Microphone Omni-directional stereo electret condenser microphone
Media
Type Memory Stick Pro Duo™ and SD/SDHC/SDXC compatible x1 SD/SDHC/SDXC x1
Wi-Fi/NFC
Supported format IEEE 802.11 a/b/g/n/ac
Frequency band 2.4 GHz bandwidth
5.2/5.3/5.6/5.8 GHz bandwidth
Security WEP/WPA-PSK/WPA2-PSK
NFC NFC Forum Type 3 Tag compliant
Supplied Accessories
Supplied Accessories XLR handle unit (1)
Lens hood (1)
Lens cap (1)
Large eyecup (1)
Accessory shoe kit (1)
USB cable (1)
Rechargeable battery pack (NP-FV70A) (1)
AC Adaptor (AC-L200D) (1)
Power cord (mains lead) (1)
Wireless Remote Commander (RMT-845) (1)
Lithium battery (CR2025 for the Wireless Remote Commander) (1), Pre-installed to the Wireless Remote Commander
Operating Guide (2)
CD-ROM “Manuals for Solid-State Memory Camcorderr” (1)
Warranty (1)
Notes
* [60i]: when [60i/50i SEL] is set to 60i
[50i]: when [60i/50i SEL] is set to 50i
