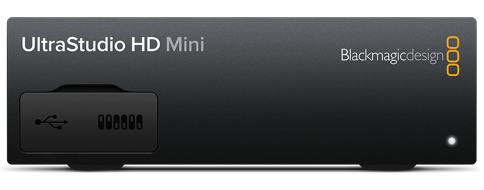

Name: UltraStudio HD Mini Thunderbolt3 HD capture and playback
SKU: SKU-00452
Availability: InStock

2 x 3Gb/s SD/HD switchable, supports fill and key.

SDI Rates

Optical SDI

HDMI Video Inputs

HDMI Video Outputs

1 x HDMI 1.4b type A connector.

Analog Video Inputs

Y, B-Y, R-Y/NTSC/PAL.

Analog Video Outputs

Analog Audio Inputs

2 x 1/4 inch jack connectors for balanced and unbalanced analog audio.

Analog Audio Outputs

None, embedded audio only.

SDI Audio Inputs

16 Channels embedded in SD and HD.

SDI Audio Outputs

16 Channels embedded in SD and HD.

HDMI Audio Outputs

2 Channels embedded in SD and HD.

Timecode Connection

Reference Input

Tri-Sync or Black Burst.

Supported Codecs

AVC-Intra, AVCHD, Canon XF MPEG2, Digital SLR, DV-NTSC, DV-PAL, DVCPRO50, DVCPROHD, DPX, HDV, XDCAM EX, XDCAM HD, XDCAM HD422, DNxHD, DNxHR, Apple ProRes 4444, Apple ProRes 422 HQ, Apple ProRes 422, Apple ProRes LT, Apple ProRes 422 Proxy, Uncompressed 8-bit 4:2:2, Uncompressed 10‑bit 4:2:2.

Software

Software Included

Media Express, Disk Speed Test, LiveKey, Blackmagic Desktop Video Utility and Blackmagic driver on Mac OS X and Windows. Media Express, Blackmagic Desktop Video Utility and Blackmagic driver on Linux.

Internal Software Upgrade

Firmware built into software driver. Software driver loads upgrades at system start or via updater software.

Video Standards

SD Video Standards

525i59.94 NTSC, 625i50 PAL

HD Video Standards

720p50, 720p59.94, 720p60
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30, 1080p50, 1080p59.94, 1080p60
1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30
1080i50, 1080i59.94, 1080i60

2K Video Standards

2K DCI 23.98p, 2K DCI 24p, 2K DCI 25p, 2K DCI 23.98PsF, 2K DCI 24PsF, 2K DCI 25PsF

Ultra HD Video Standards

4K Video Standards

SDI Compliance

SMPTE 259M, SMPTE 292M, SMPTE 296M, SMPTE 372M and SMPTE 425M A/B.

SDI Metadata Support

RP 188/SMPTE 12M-2 and closed captioning.

Audio Sampling

Television rate of 48kHz and 24 bit.

SDI Video Sampling

Color Space

HDMI Resolution

Pixel for pixel HD resolution input from connected device.

Multiple Rate support

SDI and HDMI video connections are switchable between standard definition and high definition. SDI switches between 270 Mb/s, 1.5 Gb/s and 3 Gb/s.

Hardware Frame Buffer

v210 (10 bit YUV), 2vuy (8 bit YUV), ARGB, BGRA (8 bit RGB), r210 (10 bit RGB), R12B,R12L (12 bit RGB).
Color Precision
8, 10, 12-bit RGB 4:4:4 up to 1080p30, and 8, 10-bit YUV 4:2:2 in all standards.

Computer Capture

1 x Thunderbolt™ 3 for Mac and Windows. Powers from Thunderbolt host computer, includes Blackmagic Desktop Video SDK.

Control

Built in Control Panel

None. Supports Teranex Mini Smart Panel with 2.2 inch color display for video preview, audio meters and status.
Device Control
1 x RS-422 deck control.

รหัสสินค้า	SKU-00452
หมวดหมู่	I/O For Thunderbolt
ราคา	0.00 บาท
สถานะสินค้า	พร้อมส่ง
อัพเดทล่าสุด	16 ก.ย. 2560
จำนวน	ชิ้น

หน้าที่เข้าชม	1,431,308 ครั้ง
เปิดร้าน	28 พ.ค. 2557
ร้านค้าอัพเดท	5 ก.ย. 2568

UltraStudio HD Mini Thunderbolt3 HD capture and playback

รายละเอียดสินค้า

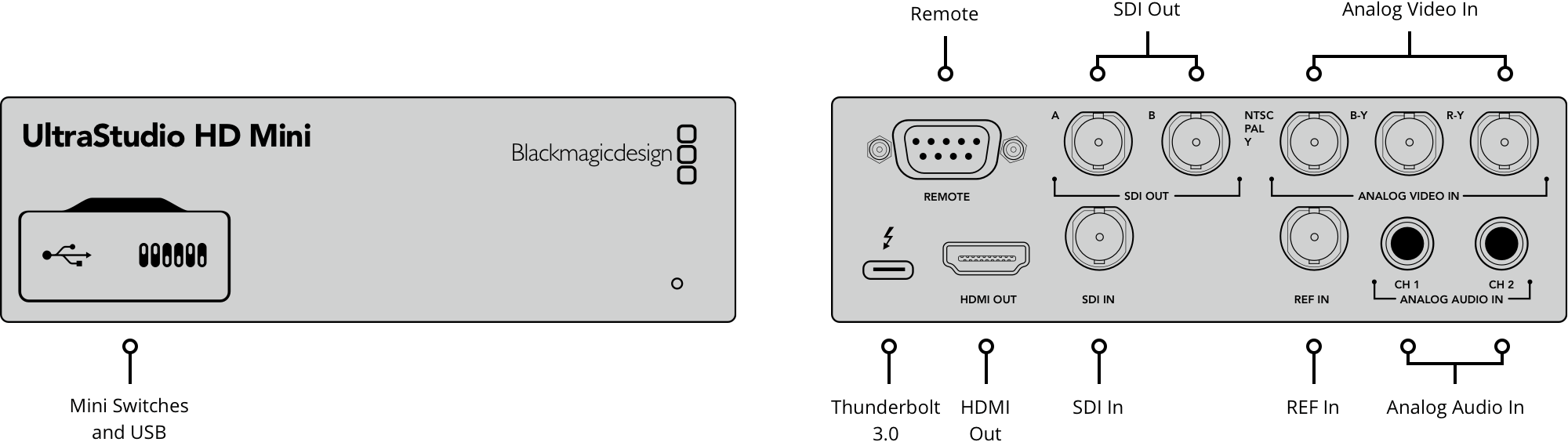

Connections

SDI Video Inputs

SDI Video Outputs
