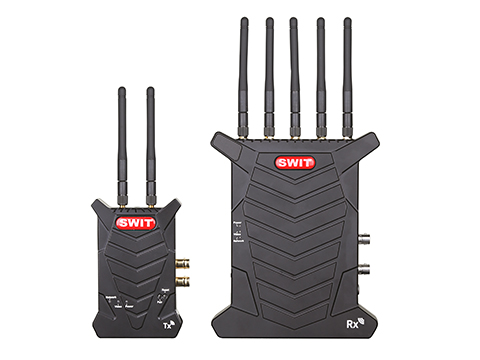

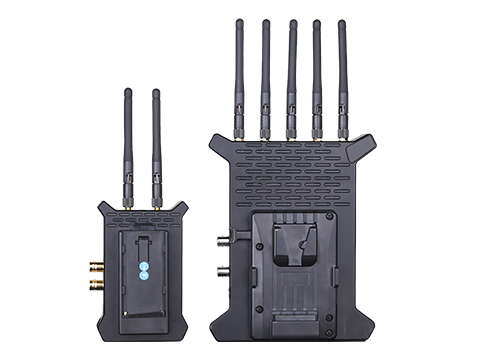

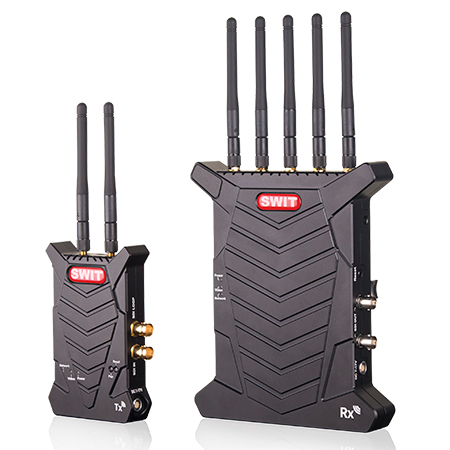

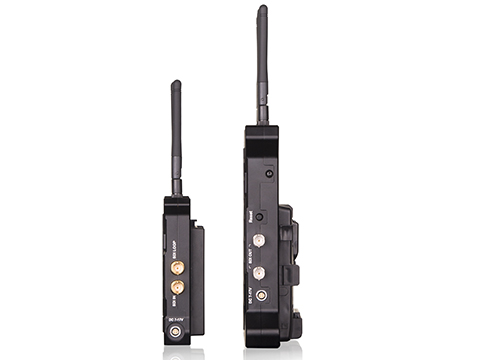

SWIT CW-S300 SDI 300m Video Wireless System

SWIT CW-S300
SDI 300m Video Wireless System
CW-S300 wireless system is based on WHDI wireless technology, 5.1-5.9GHz license free bands, DFS comply, , supports uncompressed 3G/HD-SDI to transmit 300 meters (Line-of-Sight) distance, and less than 1 millisecond latency. The system is pure hardware connection, plug and play, which is widely used in director monitoring, drone, ropeway camera, steadicam etc.

Input & Output
The Transmitter (Tx) has 2 omni antennas, supports
1x 3G/HD-SDI input
1x 3G/HD-SDI loop output
1x 7-17V 4-pin LEMO DC input

The Receiver (Rx) has 5 omni antennas, supports
2x 3G/HD-SDI output
1x 7-17V 4-pin LEMO DC input

SDI formats:
1080p60, 1080p59.94, 1080p50
1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30;
1080psf23.98, 1080psf24, 1080psf25, 1080psf29.97, 1080psf30;
1080i60, 1080i59.94, 1080i50;
720p60, 720p59.94, 720p5

TECH SPECS

CW-S300 standard package includes:
1x Transmitter (Various DV plates types option)
1x Receiver (V-mount or Gold mount option)
9x Antennas (2 for Transmitter, 5 for Receiver and 2 for back-up)
1x Articulating arm trestle (Cold shoe and 1/4”)
1x D-tap to 4-pin LEMO DC cable – 0.6m
1x D-tap to 4-pin LEMO DC cable – 1m
1x AC-DC adaptor
1x Carrying case (for everything)
