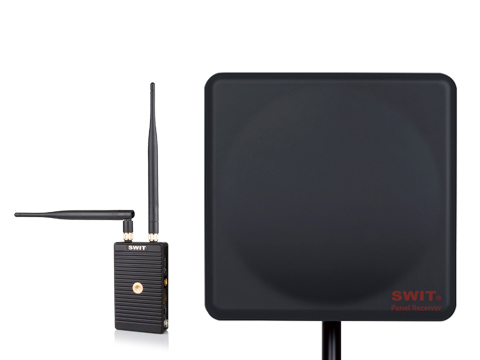

SWIT S-4914P SDI/HDMI Wireless Transmission System

•  WHDI (MIMO/OFDM) technology
•  5.1-5.9GHz license-free frequency
•  Uncompressed 3G/HD/SD-SDI and HDMI
•  1000meters (Line-of-Sight) distance
•  Less than 1 millisecond latency
•  Less than 63mW radio power
•  14dBi Panel Antenna build-in Receiver
•  2-ch SDI/HDMI embedded audio transmission
•  Support 3-4 pairs working in one location
•  Multicast - 1 transmitter to multi receivers
•  Mini Transmitter with various DV plates selection
•  All-metal housing, durable
•  Pure hardware connection; Plug and Play

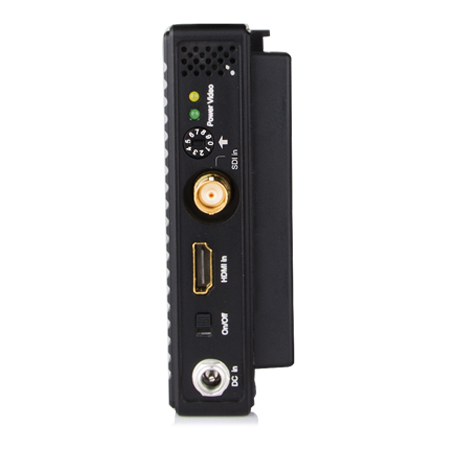

The Transmitter

The Transmitter has 2 omni antennas, signal interfaces are:
 - 1x 3G/HD/SD-SDI input
 - 1x HDMI 1.3 input
(If both SDI and HDMI are connected, the system transmits SDI as priority.)
 - 1x 6-17V DC input

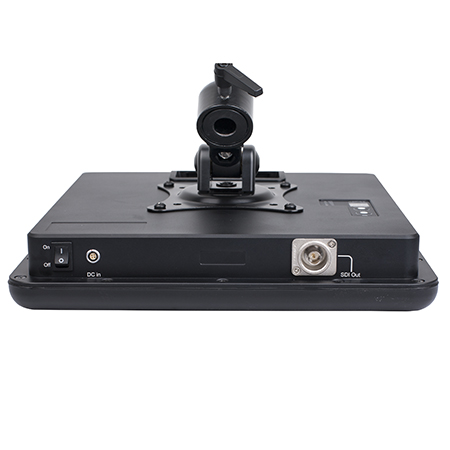

Panel Receiver

The Panel Receiver adopts 14dBi high Gain Panel Antenna and build-in wireless receiver design, to set up by lighting tripod.
The Panel Receiver interfaces are:
 - 1x 3G/HD/SD-SDI output
 - 1x 7-36V 4pin LEMO DC input

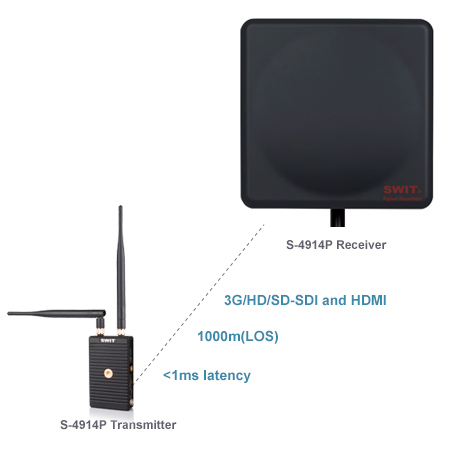

1000meters Transmission

In Line-of-Sight, S-4914P supports non-compressed 3G/HD/SD-SDI and HDMI 1000 meters (3300 feet) transmission, with less than 1 millisecond latency.

(1) Set the Transmitter antennas at different angles to extend the transmission distance and achieve stable transmission quality.
(2) Set the Panel Receiver as high as possible, and the panel surface aimed at the transmitter direction.
(3) Avoid walls, trees, water and any blockage as best as you can.

Power Supply and Set-up

Transmitter: Small size designed, equipped with various DV battery plates for selection:

You can also power the transmitter via 5.5/2.1mm pole tap DC-IN, input voltage 6.5-17V.
Receiver: Provides VESA bracket to set up on lighting tripod, and power via 4-pin LEMO DC-IN, 7-36V. The package also provides V-mount or Gold mount battery plate with clamp, to install battery on lighting tripod.
