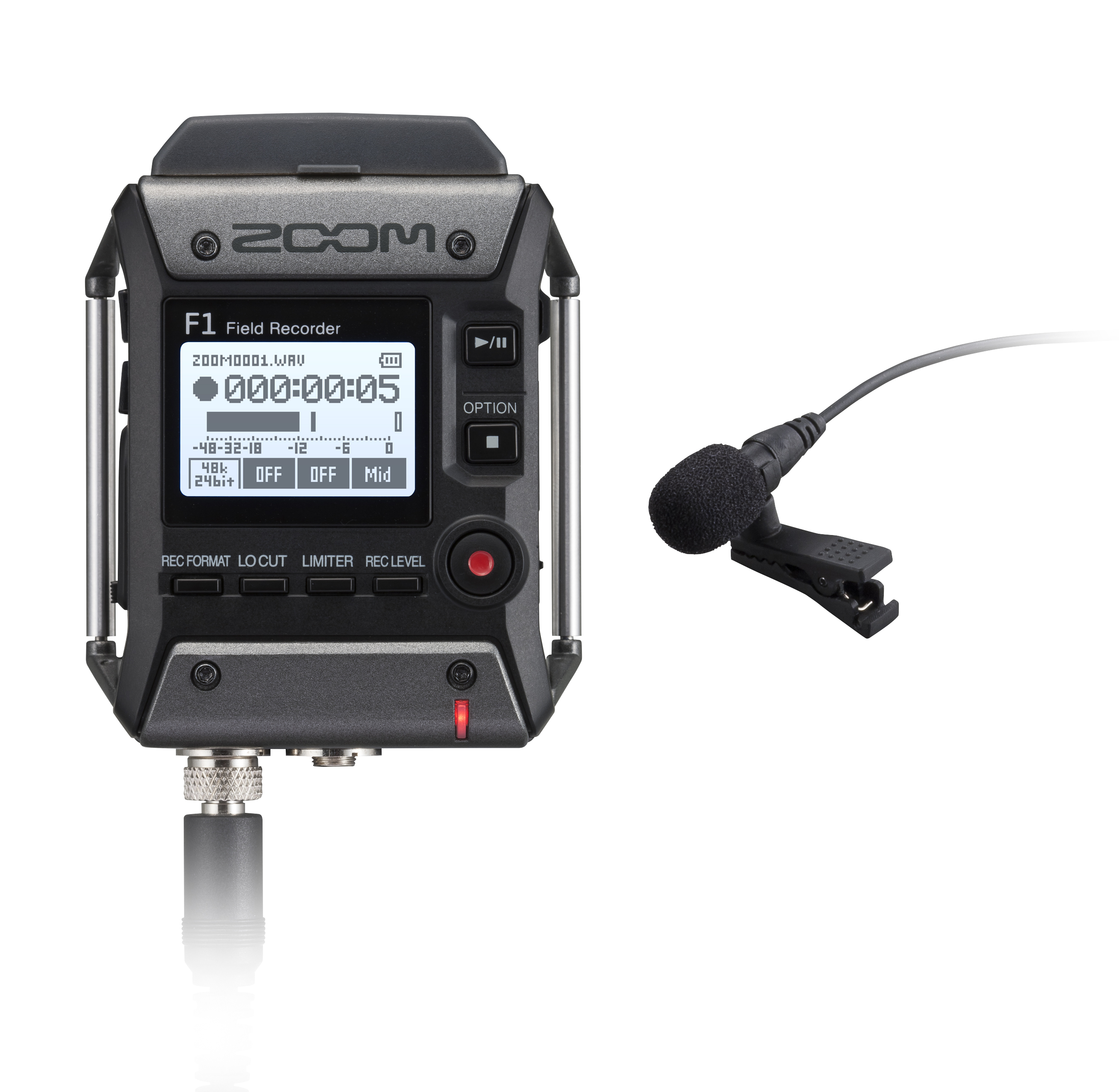

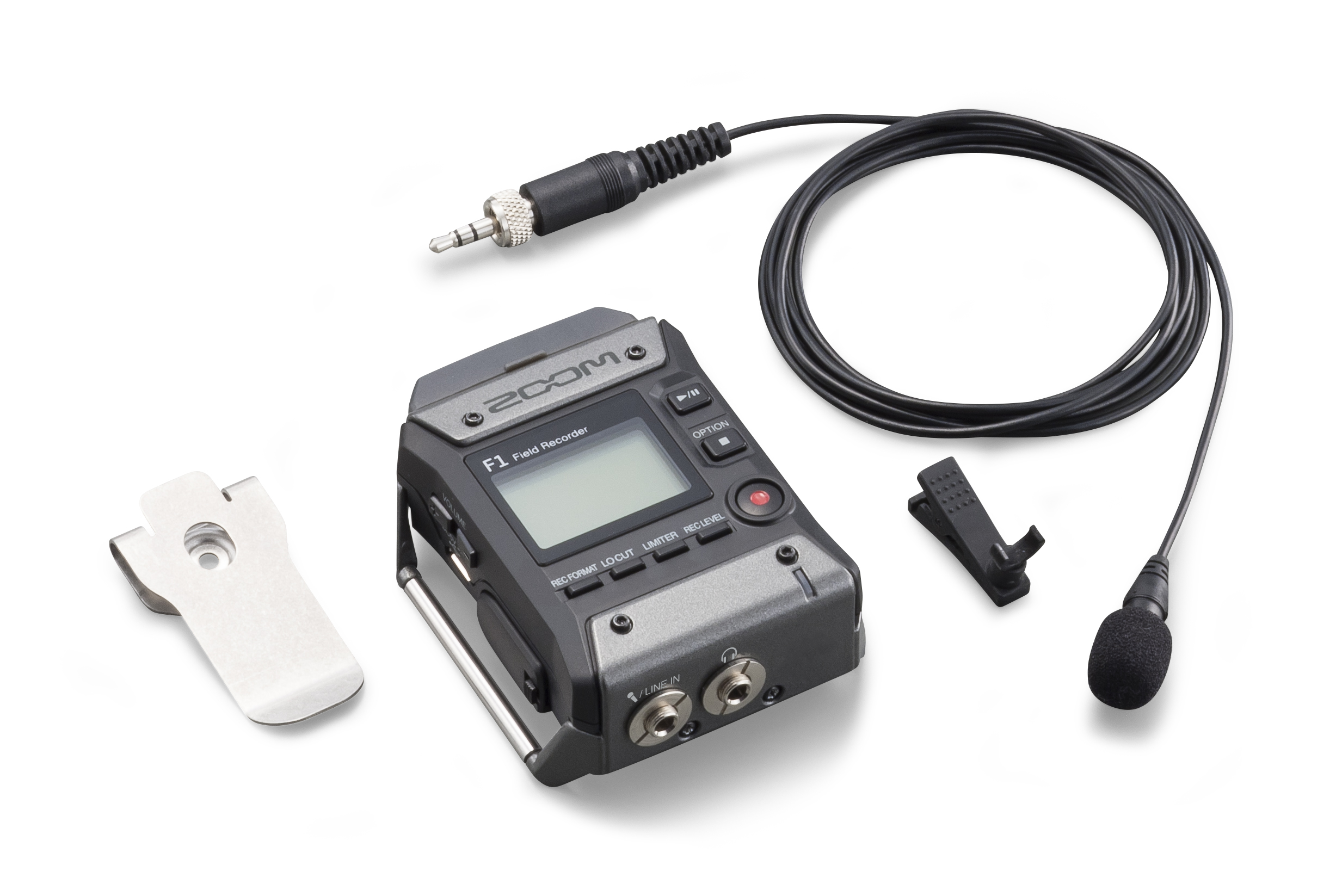

ZOOM F1-LP Field Recorder + Lavalier Mic

• Two-channel audio recorder
• Capture audio at weddings, interviews, and more
• Includes LMF-1 omnidirectional lavalier microphone
• Lightweight and low-profile design—attaches to belts and waistbands, or fits inside pockets without being seen
• Compatible with all Zoom microphone capsules
• Supports up to 24-bit/96 kHz audio
• Broadcast WAV format (BWF)—files are automatically time-stamped
• Multiple MP3 formats
• One-touch button controls
• 1.25" monochromatic LCD display can be read under bright light
• Record Hold function to avoid accidental operation of buttons
• Stereo 1/8" mic/line input jack with plug-in power (2.5V)
• Stereo 1/8" phone/line output jack with dedicated volume control
• Built-in limiter and auto level control to avoid clipping
• Low-cut filter
• Pre-Record function
• Tone generator for calibrating audio levels between the F1 and a DSLR video camera without the need for an attenuation cable
• Sound marker function outputs quick tone for syncing audio and video
• Records directly to microSD and microSDHC cards up to 32 GB
• Micro-USB port for data exchange to and from computer
• Use as an audio interface to record directly to your computer or iOS device
• Runs on two standard AAA alkaline, Lithium, or NiMH rechargeable batteries, or AD-17 AC adapter (available separately)
• Up to 10 hours of operation with alkaline batteries (when using lavalier)
• Includes windscreen, belt clip, mic clip

microSD/microSDHC cards
(Class 4 or higher, up to 32 GB)

WAV
44.1 kHz/16-bit, 48 kHz/16-bit, 48 kHz/24-bit, 96 kHz/24-bit

MP3
48 kbps, 128 kbps, 192 kbps, 256 kbps, 320 kbps
Mono/stereo ID3v1 tags supported

1.25" monochrome LCD

Input gain: −12 dB – +36 dB
Input impedance: 2 kΩ or more

Plug: 3.5 mm stereo mini (with screw lock)
Directionality: Omnidirectional
Sensitivity: -32 dB/1 Pa at 1kHz
Maximum sound pressure input: 115 dB spl
Cable length: 160 cm

Connector: 3.5 mm stereo mini (with screw lock)
Maximum output level: 11 mW + 11 mW (into 32 Ω load)

microUSB
Mass storage operation: USB 2.0 High Speed
Audio interface operation: USB class compliant
44.1kHz/16-bit, 48kHz/16-bit, 2-in/2-out
Transfer method: asynchronous

2 AAA batteries (alkaline, NiMH or lithium)
AC adapter (ZOOM AD-17): DC 5V/1A

Lavalier mic (48 kHz/24-bit, mono, plug-in power on):
Alkaline batteries: about 10 hours
NiMH batteries 750 mAh): about 9 hours
Lithium batteries: about 16 hours
*The above values are approximate.

64 mm (W) x 79.8 mm (D) x 33.3 mm (H)

120 g (without batteries)
