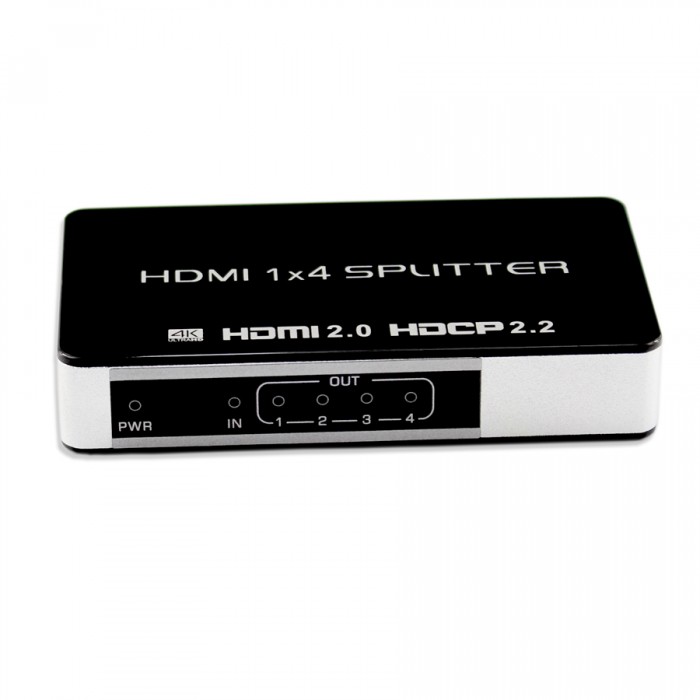

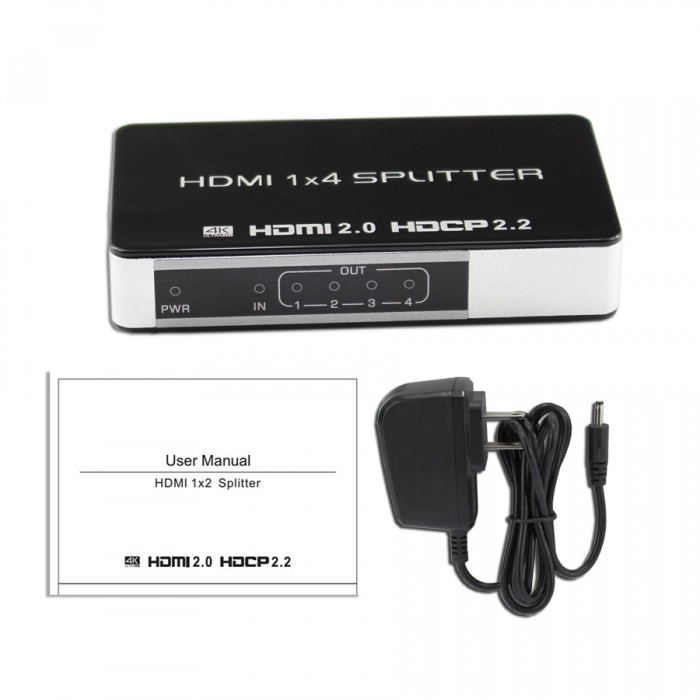

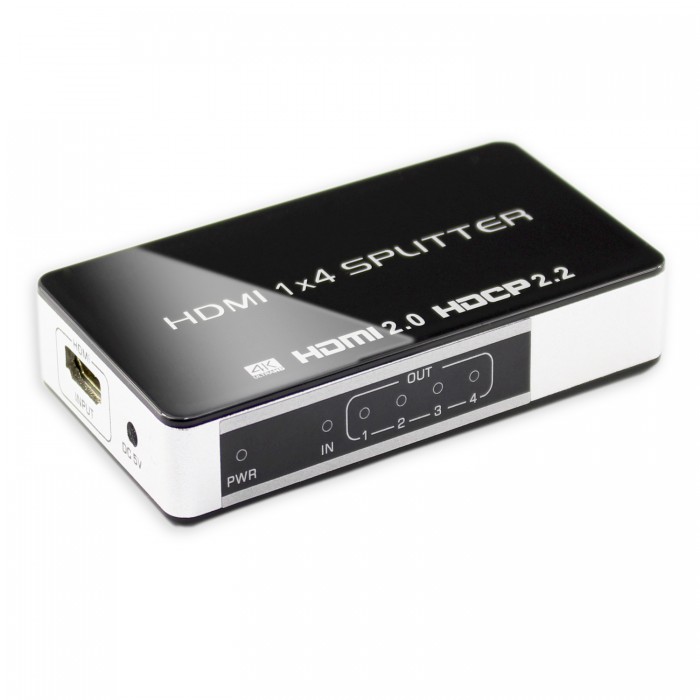

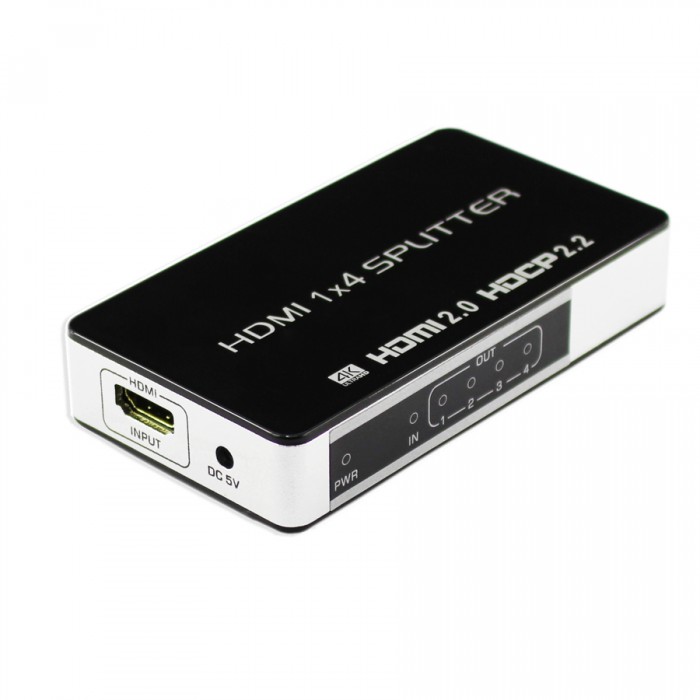

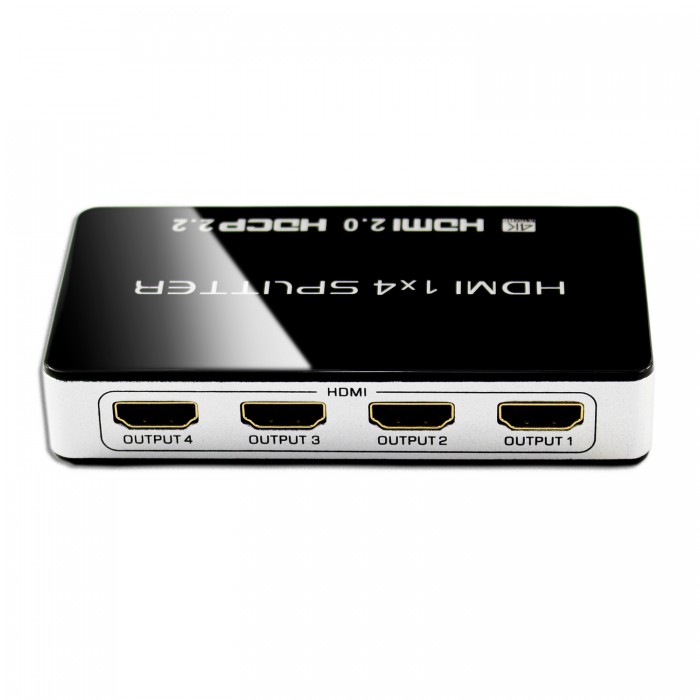

1x4 HDMI 2.0v splitter 4Kx2K@60H/HDCP2.2/YCbCr:4:4:4

Features

◆ Fully HDMI2.0 Specification compliant. It is applicable to source device and high definition display terminal

device such as Blu-ray Players HDTV which have HDMI interfaces or digital interfaces.

◆ On-chip HDMI Receiver and Transmitter core which are compliant with DVI 1.0,HDMI1.4 and HDMI 2.0

specification ON-chip HDCP RX/TX ciphers which are compliant with HDCP1.4/2.2 specification.

◆ Wide Frequency Range: 25MHz-600MHz.

◆ Supports high resolutions up to 4K×2K @60Hz including 480i, 480p, 576i, 576p,720p,1080i,1080p,2160p.

◆ Supports jitter Clean capability for more cascadable stages.

◆ Supports 12-bit Deep Full HD, Full 3D and 4k2k 60Hz video.

◆ Supports standard Audio,DSD Audio and HD(HBR)Audio.

◆ Supports 1 DVI/HDMI input port and 2 DVI/HDMI output ports.

◆ Supports conversion of HDMI signalling to DVI/HDMI signalling.

◆ Supports HDCP 1.4 to HDCP2.2 conversion.

◆ Supports HDCP 2.2 to HDCP1.4 conversion.

◆ Supports on-chip 512 byte E-DDC EDID RAM for input port.

◆ Supports hot plug-play.

◆ Cascadable to make more than 4 output ports.

◆ Provide companion HDCP 2.2 Controller(EPF025R)with integrated HDCP keys.

◆ LED indicate signal and power mode.

◆ Power supply(please refer to technical parameter).

Tech Specs

HDMI version…………………………………………….……………………......................HDMI 2.0, HDCP 2.2

HDMI resolution …………………...................24/50/60fps/480i/480p/576i/576p/720p/1080i/1080p/2160p

Supports video color format ....………………...……..….…...................24bit/deep color 30bit, 36bit, 48bit

Supports audio format……..................DTS-HD/Dolby-trueHD/LPCM7.1/DTS/Dolby-AC3/DSD HD(HBR)

Max bandwidth……………………………….…….......………............……….………………………….600MHz

Max baud rate…………………….………………….….…………....................………………………..18.0Gbps

Input/Output TMDS signal ………….…………………………..…...................…….....0.5~1.5Volts p-p(TTL)

Input/Output DDC signal …………………………………………….....................……...…….5Volts p-p (TTL)

Input cable distance..…... ……………………….………………….........≤15m AWG26 HDMI standard cable

Output cable distance…………………………….………......................≤20m AWG26 HDMI standard cable

Max working current………………………………..…………...................……………………………...1200mA

Power adapter format Input..…………….............................AC100V-240V (50/60Hz) ; Output: DC 5V/2A

Operating Temperature range……..………...................…….…….……………………….…… (-15 to +55℃)

Operating Humidity range………………………….….………...................…5 to 90%RH (No Condensation)

 Dimension (L x W x H) ………………………….….………...................…            110x60x20(mm)

Weight……...............................................................................................................................105g
