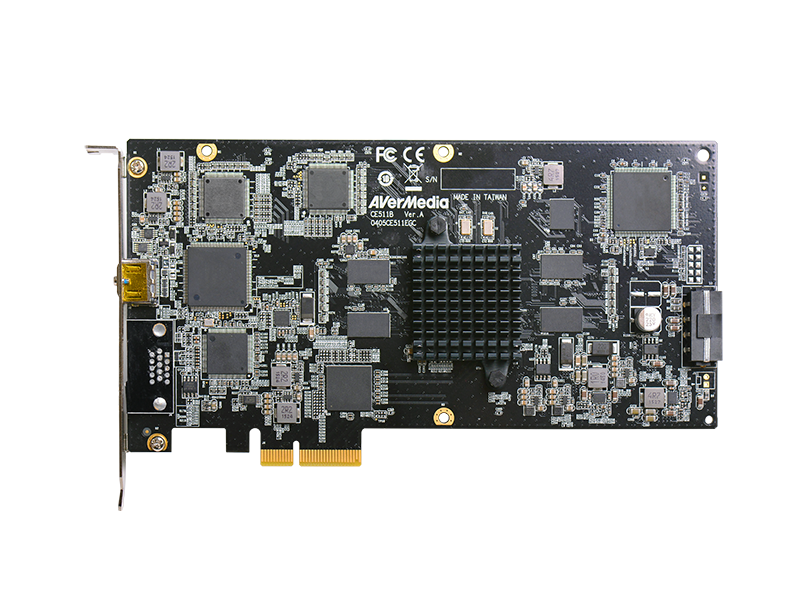

AVerMedia CE511-HN
4K HDMI 2.0 PCIe Frame Grabber
จำหน่ายการ์ดแคปเจอร์ AverMedia รองรับสัญญาณ 4K HDMI
Features
  • 3840 x 2160p, 60 fps video streams
  • HDMI input
  • PCIe Gen 2 x4
  • Windows DirectShow compatible
  • Specifically designed SDK
  • Application: video conferencing, inspection, digital signage

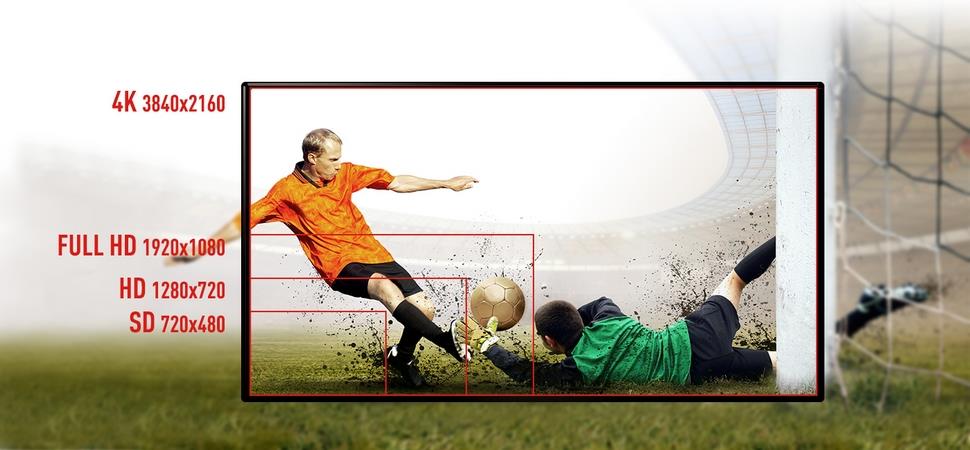

Real-time 4K video capturing
4K is becoming a more popular video standard. At 4 times larger than FHD resolution, 4K video contains more then 8 million pixels to provide a more true-to-life viewing experience. This new revolution in resolution will bring new video quality capturing requirements; thus, the CE511-HN 4K capture card is designed to transmit astounding 4K lossless video data through its PCIe Gen2 x4 data bus. With a 3840 x 2160 ultra high video resolution, the CE511-HN can record even the smallest of details.

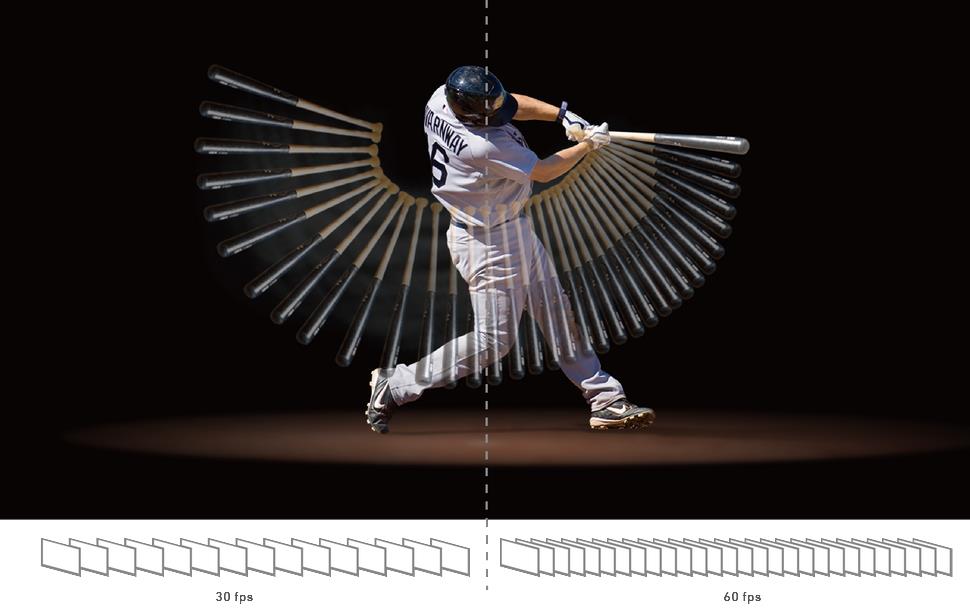

Remarkable 60 frames per second
The most common consumer recording devices today support higher recording frame rates as do more professional recording devices, such as those used for medical imaging and industrial surveillance. At 60 frames per second, you can improve the quality of a wide range of media recorded for businesses, universities, broadcasting, and manufacturing facilities, providing a more lifelike and smooth video playback experience.

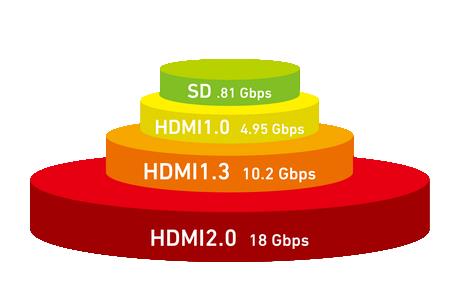

HDMI 2.0
HDMI 2.0 is more about bandwidth than a new resolution standard. Being able to provide more bandwidth is what enables HDMI 2.0 devices to transfer data at up to 18 Gbps, almost twice as much as the 10.2 Gbps possible with the previous standard HDMI 1.4.

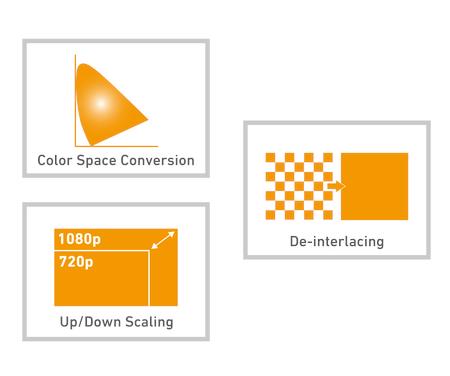

Hardware scaling, de-interlacing, and color space conversion
AVerMedia hardware-based video engine technology implements the most useful video processing functions, including scaling, de-interlacing, and color space conversion. This can significantly help you reduce the computing burden on software and hardware, which allows you to focus on other important parts of your application.

Host Interface PCIe Gen2 x4
Audio Interface HDMI
Audio Format  PCM
Audio Sampling Rate 32KHz, 44.1KHZ, 48KHz
Connector Type HDMI Type A
Input Interface HDMI
Video Format  YUV 4:2:2
Color Depth  8-bit
Channel No.  1 Ch (HDMI 2.0)
Max. Input Resolution 3840 x 2160 60fps
Max. Recording Resolution 3840 x 2160 60fps
Input Video Resolution

(* It's progressive signal if there is no 'i'.)
640x480, 702x576, 720x400, 720x480, 720x576, 800x600, 1024x768, 1152x864, 1152x900,
1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1366x768, 1400x1050,
1440x480, 1440x576, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200,3840x2160

Notes:

There are two options for frame rate:
(1) Default frame rate 50 or 60 fps
(2) Frame rate, range 5~60.
Capture Video format

(* Capture format won't be interlaced.)
HDMI:
640x480, 720x400, 720x480, 720x576, 800x600, 1024x768, 1152x864, 1152x900,
1280x720, 1280x768, 1280x800, 1280x960, 1280x1024, 1360x768, 1400x1050, 1440x480,
1440x576, 1440x900, 1600x900, 1600x1200, 1680x1050, 1920x1080, 1920x1200, 3840x2160

Notes:

There are two options for frame rate:
(1) Default frame rate 50 or 60 fps
(2) Frame rate, range 5~60.


Customazible resolution service: (horizontal pixel < 3840, vertical line < 2160).
Output width must be divisibled by 4.
Encoding mode Software Encoding
Multi-Card Support Yes
Supported OS Windows 7/8.1/10 (32/64 bits)*
Form Factor PCIe High Profile
Dimensions (L x W) 200 x 110 mm
Power Consumption 12W
Power Requirements Molex 4 pin peripheral power connector
Operating Temperature 0°C ~ 40°C
Operating Humidity 5% - 80% Relative Humidity
Safety Certification CCC / FCC / CE
