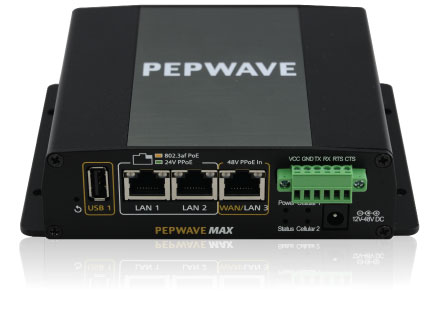

PEPWAVE MAX HD2 Mini Compact Dual 4G LTE Mobile Router

Software

• Pepwave MAX Firmware

USB 3G/4G LTE Modem Support

WAN

• Support for PPPoE, Static IP, DHCP
• WAN Link Health Check
• Bandwidth Allowance Monitor
• USB 3G/4G LTE Modem Support
• IPv6 Support
• Support for Dynamic DNS services

LAN

• DHCP Server for LAN Clients
• Extended DHCP Option
• DHCP Reservation
• DNS Proxy for LAN Clients
• VLAN on LAN Support

Load Balancing

• Intelligent Failover
• Session Persistence
• Per-Service Load Distribution
• Multiple Algorithms
• Weighted
• Enforced
• Persistence
• Priority
• Overflow
• Least Used
• Lowest Latency

Global Positioning System

• Integrated GPS
• Device Location Map
• Location Tracking Data
• GPS eXchange Format (GPX)
• Up to Seven Days
• Fleet Management with InControl 2

Complete VPN Solution

• PepVPN/SpeedFusion Hot Failover/SpeedFusion Bandwidth Bonding
• Site-to-Site VPN
• Bandwidth Aggregation
• Hot Failover
• 256-bit AES Encryption
• Pre-shared Key Authentication
• Dynamic Routing
• X.509 Certificate Support
• PPTP VPN Server
• RADIUS, LDAP Authentication
• IPsec VPN (Network-to-Network) 5
• X.509 Certificate Support

Networking

• NAT and IP Forwarding
• Static Routes
• Port Forwarding
• Many to One, One to One NAT
• NAT Pool
• SIP ALG, H.323 ALG
• UPnP, NAT-PMP
• WINS Server
• VRRP HA support

Security

• Stateful Firewall
• DoS Prevention
• Web Blocking

Advanced QoS

• User Groups
• Bandwidth Reservation
• Individual Bandwidth Limit
• Application Prioritization
• By User Groups
• SIP, HTTPS, VPN QoS
• Custom Application QoS

AP Controller

• AP Controller Support
• Wi-Fi Usage Statistics

Captive Portal Support

• Support for Wired and Wireless LAN Clients
• Support RADIUS Authentication
• Time and Usage Quotas on Open Access Mode
• Built-in Customizable Splash Page

Device Management

• Web Administrative Interface
• Command Line Interface
• InControl Cloud Management
• Email Notification
• Active Client and Session Lists
• Bandwidth Usage Statistics
• Syslog Service
• SNMP v1, v2c and v3

Package Content

• MAX HD2 Mini
• 12V2A Power Supply
• 1x GPS Active Antenna
• 4x 2dBi 4G LTE Antennas

Certifications

• FCC, CE, RoHS
• Shock and Vibration Resistance – EN 61373:1999 IEC 61373:1999
• RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)
