AJA HD10AVA - Analog Video and Audio to SD/HD-SDI

AJA HD10AVA  Analog Video and Audio to SD/HD-SDI

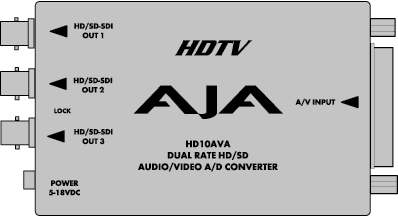

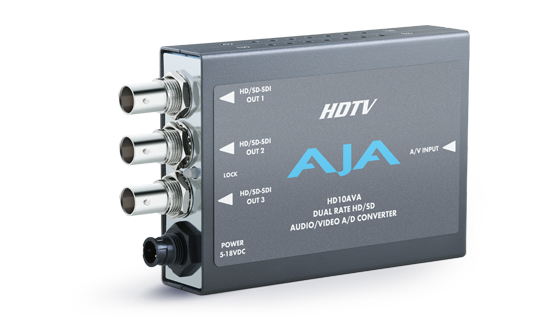

        HD10AVA is a miniature, high-quality, audio/video, HD/SD A/D converter. The HD10AVA automatically detects the video input format and embeds the audio inputs in the SD/HD-SDI outputs. The HD10AVA is useful for adding an SD/HD-SDI audio/video output to tape decks or any professional video equipment with analog outputs. The HD10AVA is especially useful for adding HD-SDI outputs to most HDV cameras or decks by using the component outputs of such devices. The HD10AVA uses a breakout cable for audio/video inputs and provides 3 SD-HD-SDI outputs on BNC.

Features

• High-quality SD/HD audio/video A/D converter
• SD component, composite or Y/C video input
• HD analog component video input
• Four channel balanced analog audio input
• 3 SD/HD-SDI with embedded audio outputs
• 12-bit video, 24-bit audio A/Ds
• Automatic multi-standard
• External dip switch configuration
• +5 to 18V DC, 5 Watts, Power Supply Required (included with purchase)

 Tech Spect
