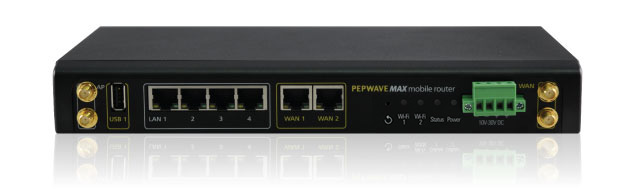

Pepwave MAX 700 Quad USB Rugged Mobile Router

Advanced QoS

• User Groups
• Bandwidth Reservation
• Individual Bandwidth Limit
• Application Prioritization
• By User Groups
• SIP, HTTPS, VPN QoS
• Custom Application QoS

Device Management

• Web Administrative Interface
• Command Line Interface
• InControl Cloud Management
• Email Notification
• Active Client and Session Lists
• Bandwidth Usage Statistics
• Syslog Service
• SNMP v1, v2c and v3

Package Content

• MAX 700
• 12V3A Power Supply
• 4x 5dBi Wi-Fi Antennas with Magnetic Base
• 1 Pair of Mounting Brackets

Certifications

• FCC, CE, RoHS
• Shock and Vibration Resistance – EN 61373:1999 IEC 61373:1999
• RF Port Lighting Immunity – ITU-T K.20 (+/- 1.5 kV)

Model	MAX On-The-Go	MAX 700
Product Code	OTG-U4	GN2-R
Ethernet WAN Ports	1 (FE)	2 (GE)
Ethernet LAN Ports	1 (FE)	4 (GE)
USB WAN Modem Port	4	4
Wi-Fi WAN 1	*
Wi-Fi AP 1
Wi-Fi Standard	802.11a/n or /b/g/n 150Mbps	802.11ac/a/b/g/n 866Mbps 802.11a/b/g/n 300Mbps
Transmit Power (2.4GHz)	20dBm	24dBm
Transmit Power (5GHz)	20dBm	22dBm
Simultaneous Dual-Band
Recommended Users 2	25	150
Router Throughput 3	100Mbps	400Mbps
Core Functionality
WAN as LAN
Web Blocking
Web Filtering Blacklists	Lite	Lite
VPN Functionality
PepVPN/SpeedFusion Hot Failover
SpeedFusion WAN Smoothing	#
SpeedFusion Bandwidth Bonding
Number of PepVPN SpeedFusion Peers	2	2/20 +
PepVPN/SpeedFusion Throughput (No Encryption)	40Mbps	100Mbps
PepVPN/SpeedFusion Throughput (256-bit AES)	20Mbps	60Mbps
Central Management
InControl Cloud Management
GPS Fleet Management
AP Controller Functionality
Manage Pepwave AP Series
Maximum Number of AP Supported		10
Hardware Features
Enclosure	Low-Profile, All-Purpose	Indoor Metal
PoE Output		Up to four 802.3af PoE Outputs^
Terminal Block Power Connector for Mobile/Vehicular Deployment
Dimensions (Height x Width x Depth)	1.2 x 4.3 x 4.3 inches 30 x 110 x 110 mm	1.6 x 10.2 x 5.7 inches 39.5 x 260 x 143 mm
Weight	0.43 pounds 195 grams	2.65 pounds 1.2 kg
Operations
AC Adapter	AC Input 100V-240V DC Output 12V, 2A	AC Input 100V - 240V  DC Output 12V, 3A
Power Input	DC 12V - 48V 2A	DC 12V - 48V DC, 3A
Terminal Block		DC 12V - 48V DC, 3A
Power Consumption	9W (without modems) 20W (max.)	28W (max.)
Operating Temperature	-14° – 149°F  -10° – 65°C	-40° – 149°F  -40° – 65°C
Humidity	15% – 95% (non-condensing)
Certifications
FCC, CE, RoHS
Certifications – Rolling Stock
EN 61373:1999 IEC 61373:1999 Shock and Vibration Resistance
Warranty	1-Year Limited Warranty

1The frequency range for 802.11b/g/n Wi-Fi and 802.11a/n Wi-Fi are 2412−2472 MHz and 5180−5825 MHz respectively.
2 Recommendation for sizing purposes only. No software restrictions applied.
3 Router Throughput is valid only for currently shipping devices running Firmware 7.0.1 or later. Router Throughtput is based on Ethernet frame sizes of 1280 or 1518 bytes. Actual performance can vary across different networking environments.
* The MAX On-The-Go supports only one of 802.11b/g/n and 802.11a/n Wi-Fi at a time.
# Feature is available only on MAX-OTG-U4-SF.
+ The MAX 700 comes with 2 PepVPN/SpeedFusion peers by default. With an optional add-on, it supports up to 20 peers.
^ Optional PoE Activation Kit is required to activate 802.3af PoE Output.
