Saramonic UWMIC15 (RX15+TX15) 16-Ch Digital UHF Wireless Lavalier Microphone Systemจำหน่ายไมโครโฟนไร้สาย UWMIC15 แบบคลิปหนีบปกเสื้อ
The Saramonic UWMIC15 UHF Wireless Lavalier Microphone System provides stable, interference free audio in portable, compact and low cost package. This system is a perfect fit for DSLR videography, field recording and interviews, broadcast TV, ENG, providing dependable audio broadcasting and recording.

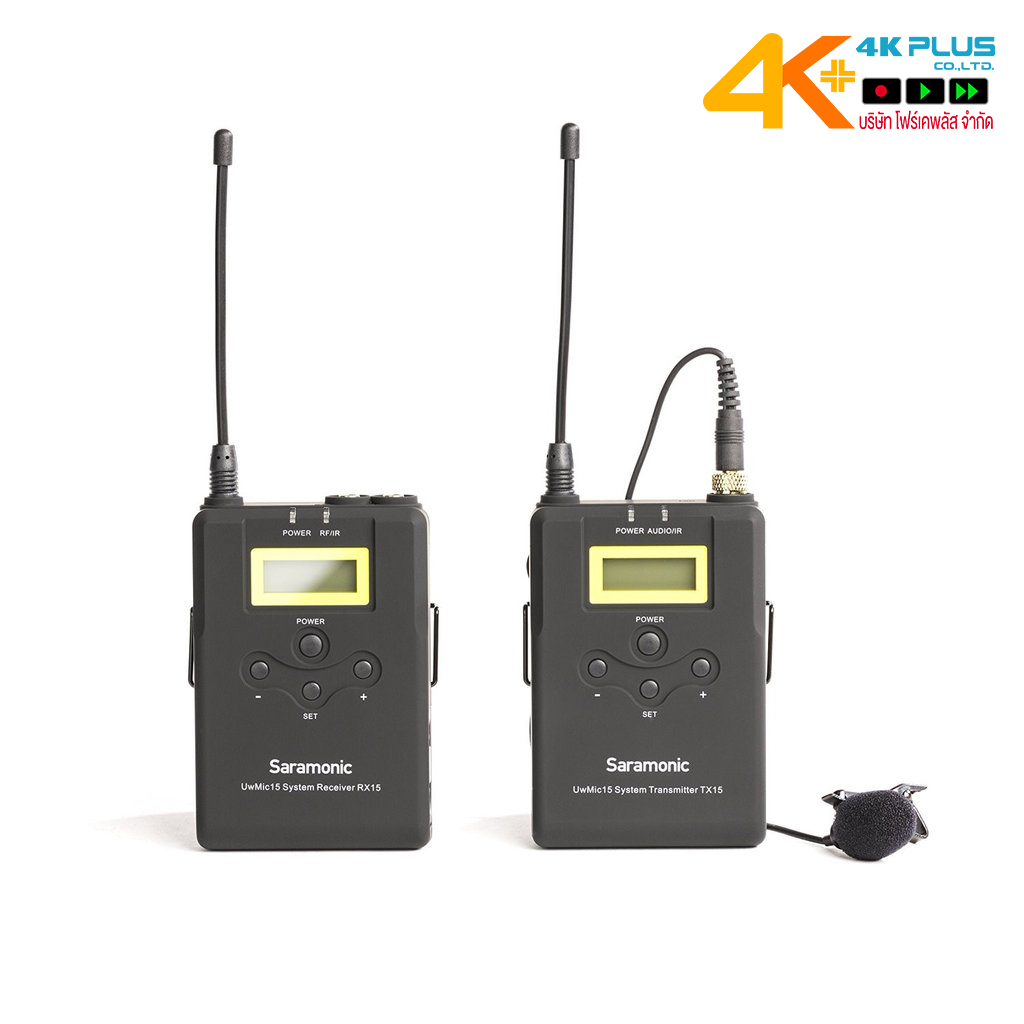

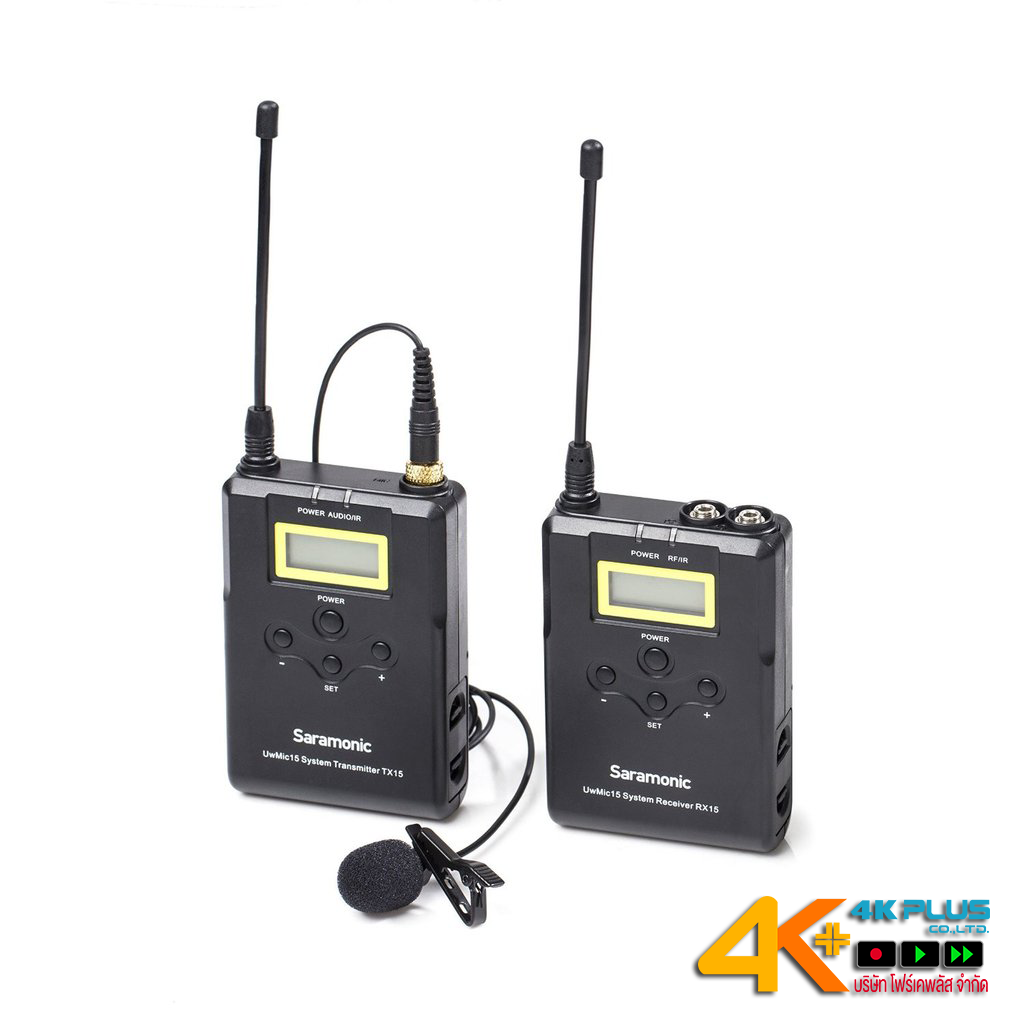

The system includes a camera-mountable, wireless receiver, wireless body-pack transmitter and clip-on lavalier mic.
Receiver

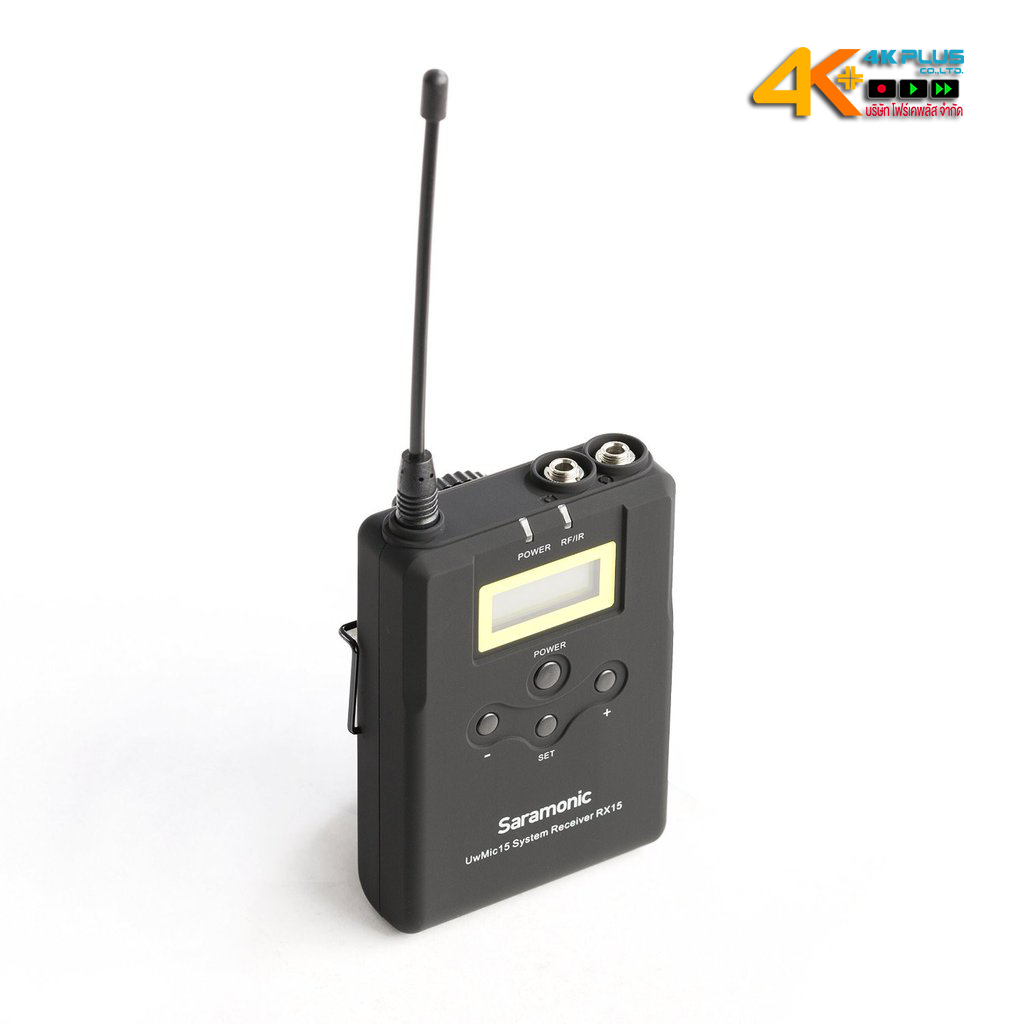

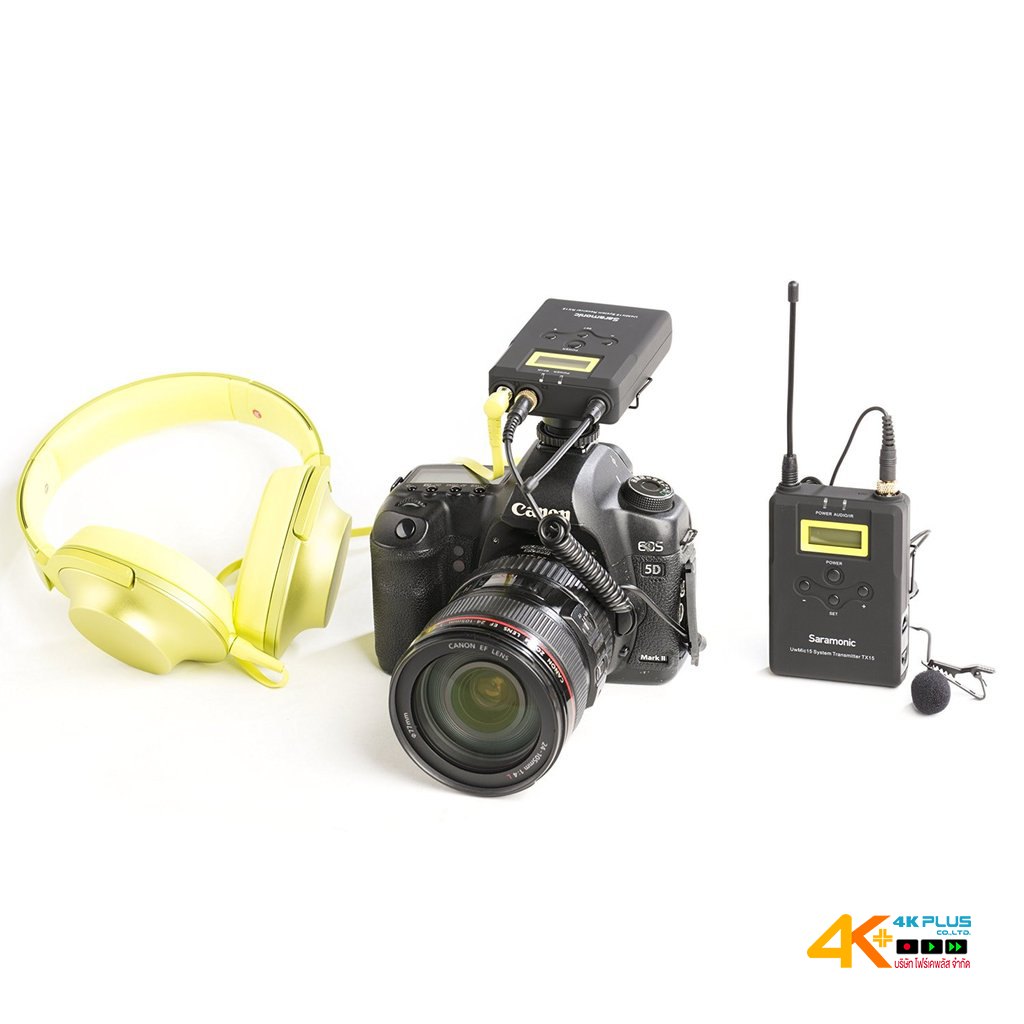

The Saramonic UwMic15-RX15 is a camera-mountable integrated wireless receiver. It features an easy-to-read LCD display and infrared synchronization between transmitter and receiver.
Equipped with an auto-scan function, the RX15 can automatically search for an available transmission frequency. The headphone jack enables real-time monitoring or the receiver via headphones, especially useful for cameras that lack a monitor output.
Transmitter

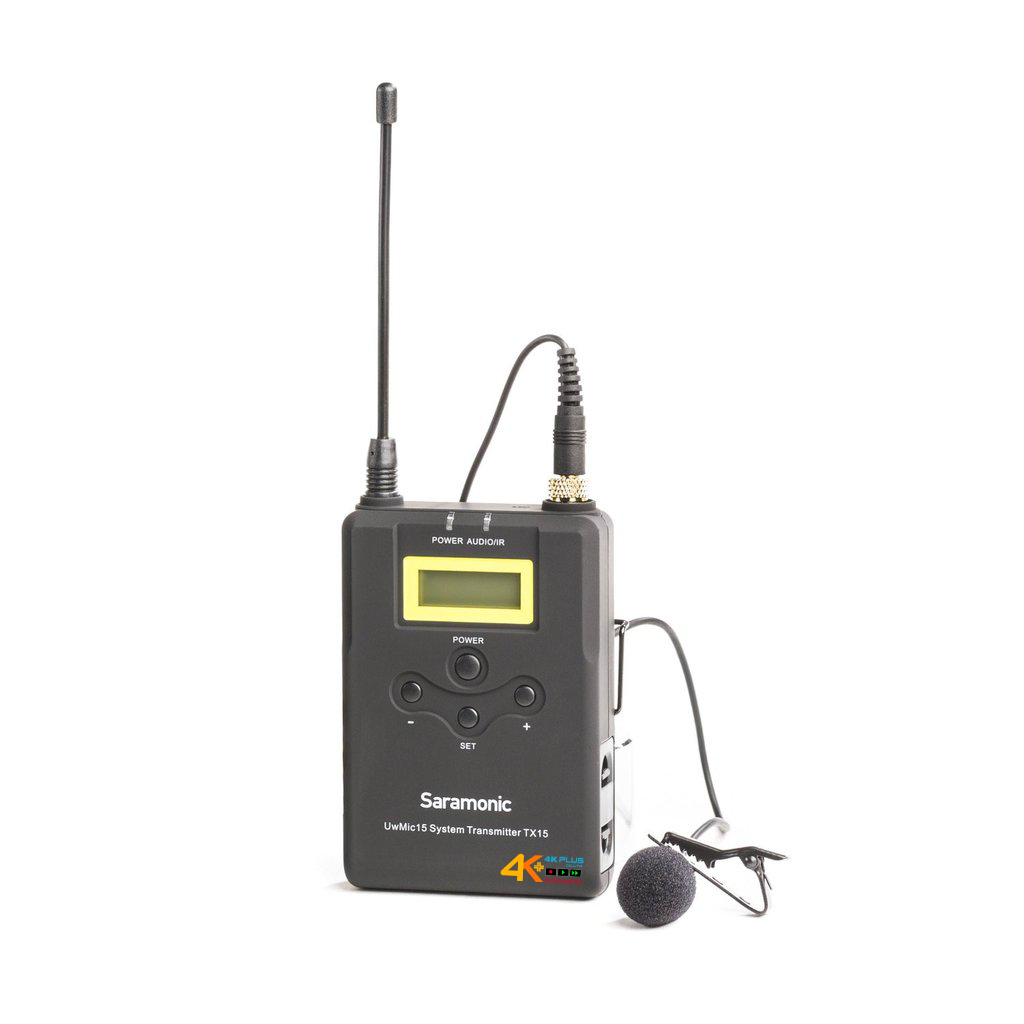

This compact transmitter employs a crystal-controlled PLL synthesizer. It is equipped with a muting function and a BMP-type mic input. The RF power output can be switched among high, middle and low.
Features
- Reliable, broadcast-quality audio
- Wireless transmitter with lavalier microphone
- UHF Frequency Range: 555 MHz - 579 MHz; 16 selectable channels
- Operating Range: Over 330-feet (100m) in open areas or 200-feet (60m) with obstacles
- Easy-to-read LCD displays
TECH SPECS:
Channels:
16
Oscillator type:
PLL synthesizer
Output:
3.5mm mini jack
Antenna:
1/4 wire antenna
Audio output level:
-60 dBV
Headphone output level:
30mW (16 ohm)
Frequency Range:
555 MHz - 579 MHz
Sensitivity:
-95 dBm
Signal to noise ratio:
70 dB or more
Voice delay:
12 ms
Reference deviation:
+/- 5 kHz
Frequency response:
40 Hz to 18 kHz (+/- 3dB)
Distortion:
0.5% or less
Spur suppression:
-60 dB
Weight:
73g (w/out batteries)
Battery:
2 AA size batteries
Dimensions:
180 x 64 x 23 mm
