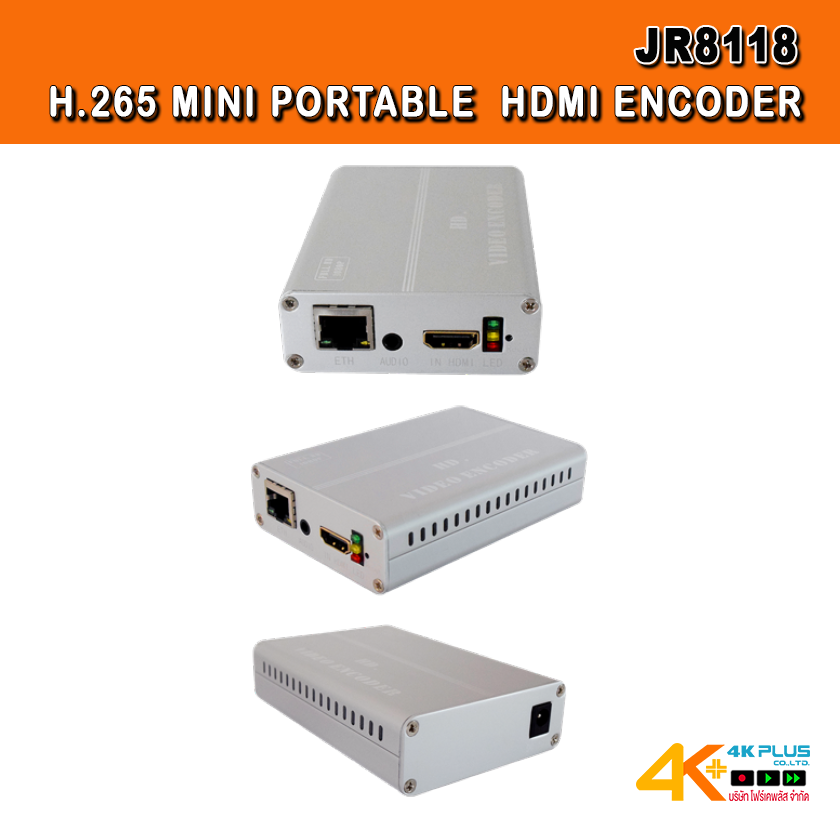

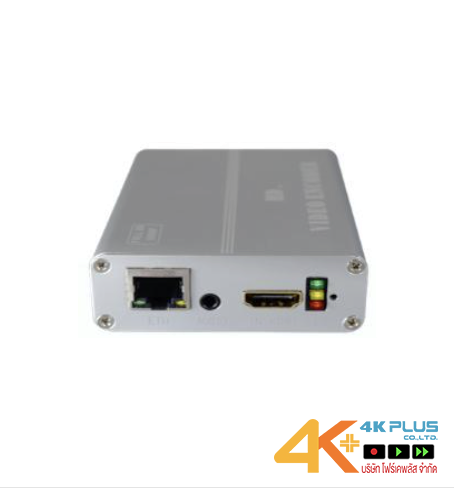

JR8118 HD HDMI H.265/H.264 Encoder for IP TV

Product performance:

HD resolution support 1920x1080/1680x1050/1280x720/1600x1200/960x540/720*576/ we and so on; 640*360~1920*1080 (can be customized)

Support HDMI input, the latest H.265 architecture

Support WINDOWS and LINUX operating system

Support a computer display using multiple devices at the same time

Support RTSP/RTP/RTMP, HTTP, UDP unicast and multicast protocol (RTMP added support for the user and password function)

The main and auxiliary support multi protocol multi stream function, the main and auxiliary flow 264265 respectively

The encoding level: 1, 2, 3, 4 and 5 (the higher the level of code flow volatility is larger)

The coding standard baseline profile / main PROFILE/ high profile, MP3, AAC, sampling rate: 32000, 44100, encoded audio bit rate: 48K, 64K, 96k, 128K, 160K, 192K, 256K.

The rate control of CBR/VBR 16KBIT/S~12MBIT/S

The video package: A mode: FFMPEG mode: VLC, B

The transmission mode: TCP, UDP, 1000M (RJ45 duplex network)

Support English web access, WEB change password, supports a wide range of network remote management (WEB)

Support] English OSD, support the OSD rolling, superimposed images, support to add a company logo letters and symbols can be anywhere on the screen display; can be adjusted coordinates: 1920x1080; font size adjust resolution available range: 8 to 72 interval.

Support DHCP automatic access to IP, supports a key reduction and upgrade and remote maintenance.

The image setting: contrast, brightness, hue, saturation, sharpness, noise detection and filtering

Support internal and external support left and right channel,Support audio gain, can be individually adjusted volume size

Support no video signal encoding

set up compeletly withimmediately effect, no need to restart

Support recovery of the default configuration
