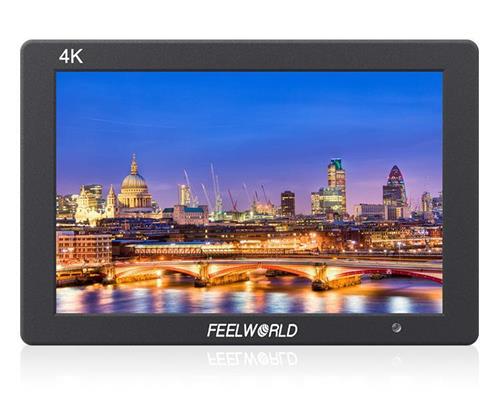

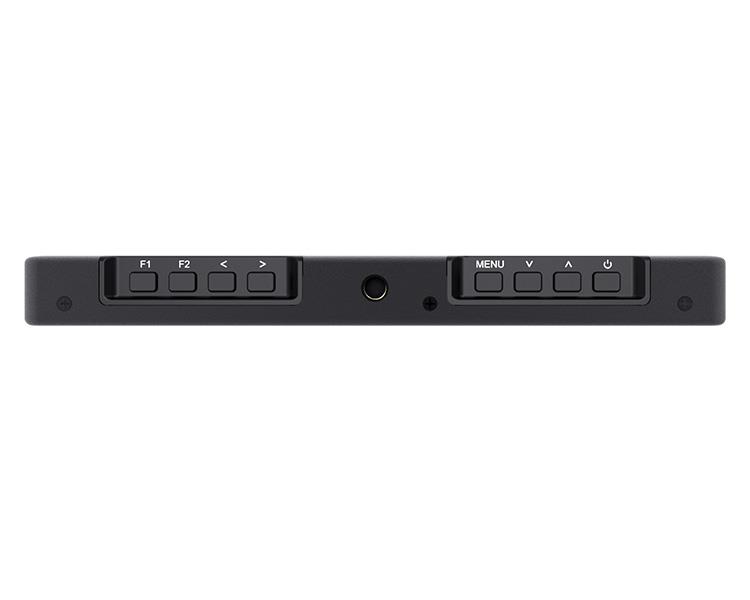

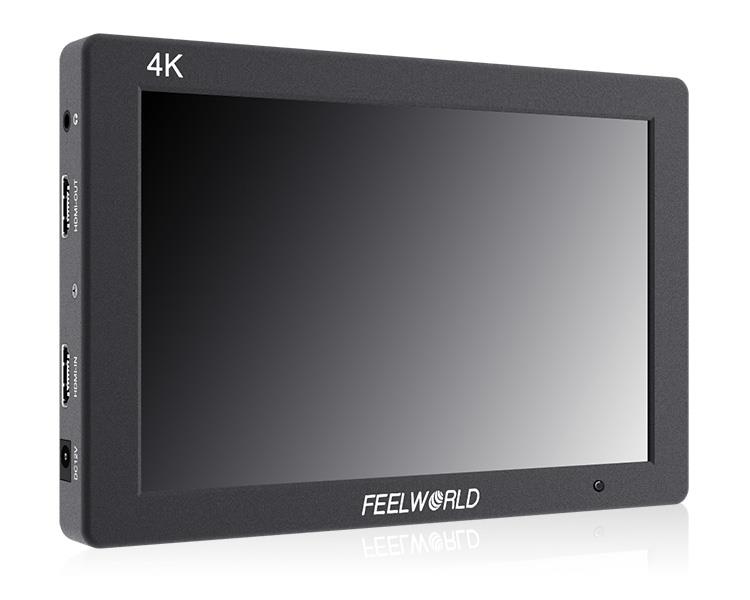

FEELWORLD T7 วิดีโอมอนิเตอร์ขนาด 7 นิ้ว 4K HDMI In/Out Features1. High Resolution: Full HD 1920x12002. High Contrast: 1200:13. High Brightness: 450cd/m²4. 160°wide viewing angles IPS Panel5. Ultra thin design 18mm thickness6. Histogram7. Peaking Focus Assist (Red,Green,Blue three colors optional highlight over parts of the image in focus)8. False Colors9. Zebra Exposure10. Nine Grid11. Embedded Audio Meter12. Camera Mode13. Zoom (4x,9x,16x)14. Anamorphic Mode (1.3x,2.0x,2.0x mag)15. Pixel to Pixel16. Center Marker17. Safe Area (80%,85%,90%,93%,96%,2.35:1)18. Ratio marker (4:3,13:9,14:9,15:9,16:9,1.85:1,2.35:1)19. Marker Color (Red,Green,Blue,White,Black)20. Check Field (Red/Green/Blue/Mono)21. Image Flip (H, V, H/V)22. Image Freeze23. Zoom All24. U/D & L/R Zoom25. Color Temperature Adjustment
Tech Specs
Display Spec.
Model |
T7 |
Screen Size |
7" IPS |
Resolution |
1920x1200 pixels |
Pixel Pitch |
0.07875 (H) x 0.07875 (W) (mm) |
Aspect Ratio |
16:10 |
Brightness |
450cd/m² |
Contrast Ratio |
1200:1 |
Backlight |
LED |
Viewing Angle |
80°/80°(L/R) 80°/80°(U/D) |
Input
Output
Audio
Audio |
Stereo Headphone, Speaker |
HDMI Input/ Output Support Format
480i/576i/480p/576p |
1080i (60/59.94/50) |
720p (60/59.94/50/30/29/25/24/23.98) |
1080p (60/59.94/50/30/29.97/25/24/24sF/23.98/ 23.98sF) |
4K UHD 3840×2160p (30/29.97/25/24/23.98Hz), 4096×2160p (24Hz)
|
General
Input Voltage |
DC7~24V |
Power Consumption |
≤8W |
Working Temperature |
-20°C~55°C |
Storage Temperature |
-30°C~65°C |
Install Way |
1/4"-20 Thread Socket (top, bottom) |

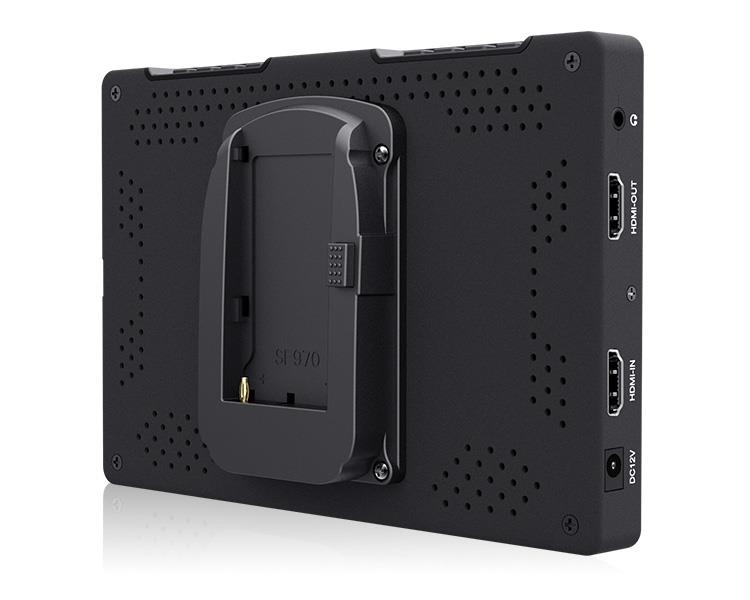

Battery Plate |
F970 (Standard); D28S/D54, LP-E6, U60 (Optional) |
Unit Size |
180Lx120Hx18D (mm) |
Unit Weight |
320g/350g (With F970 Plate) |
