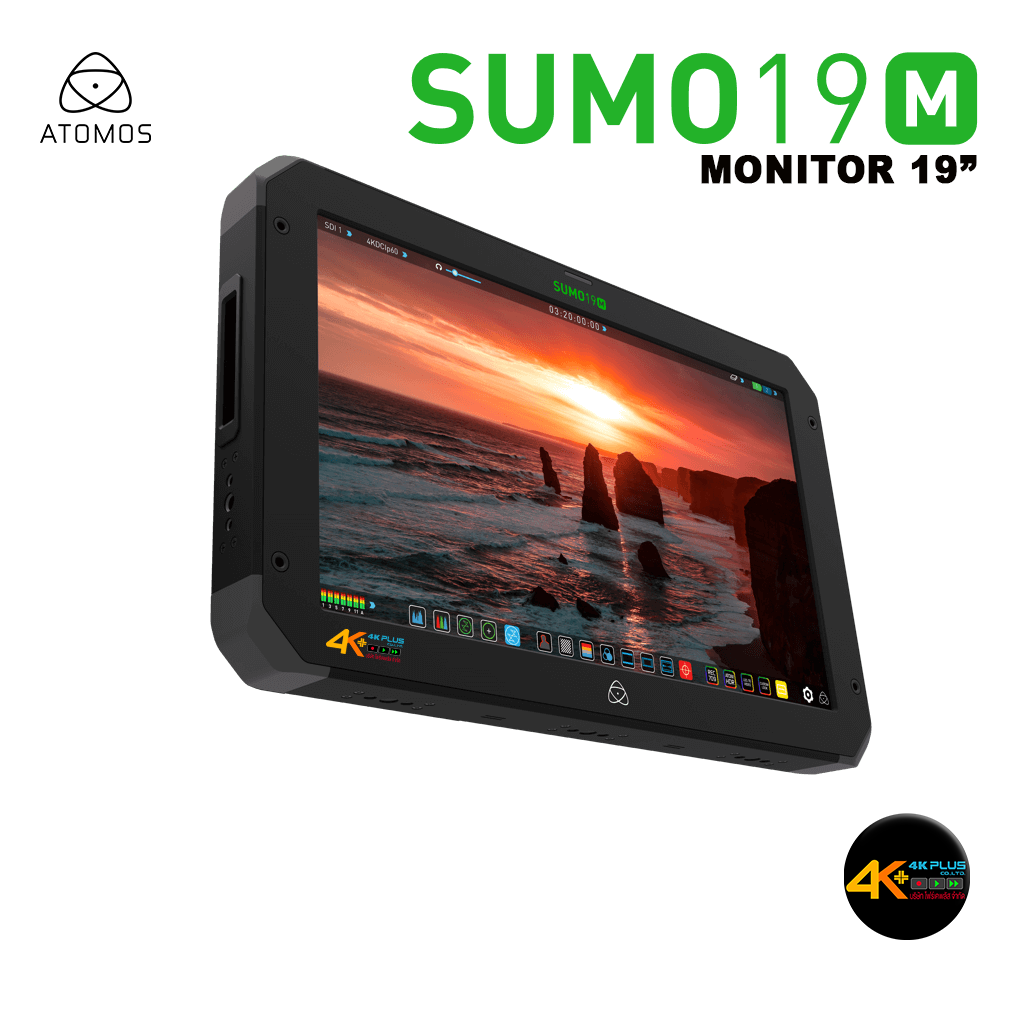

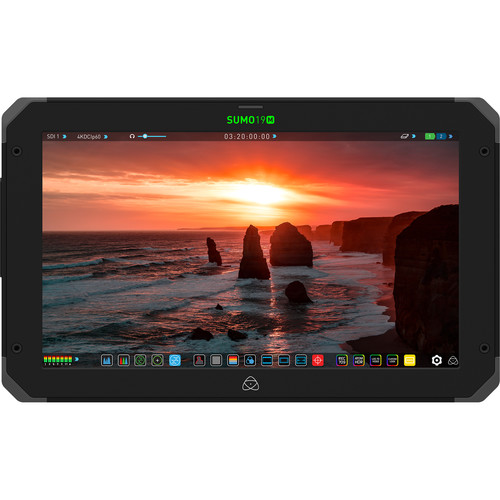

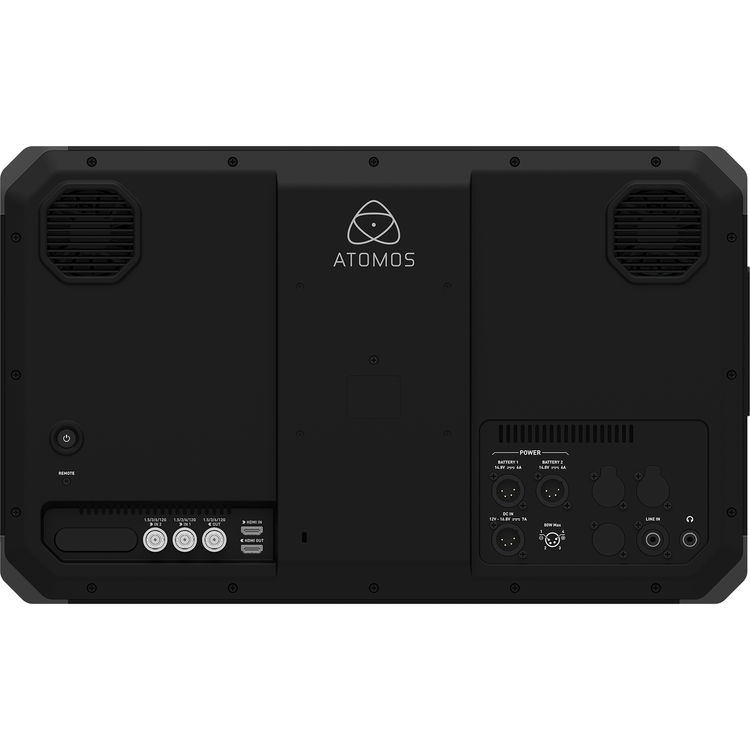

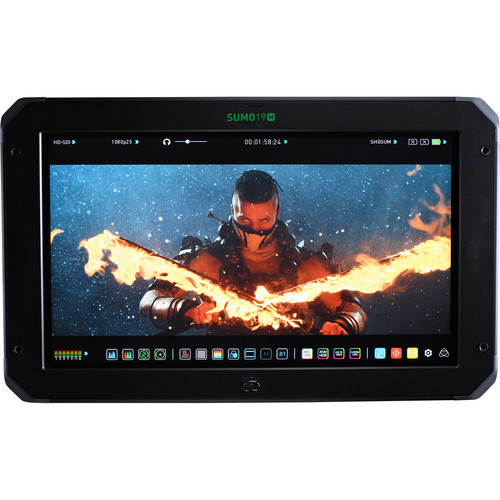

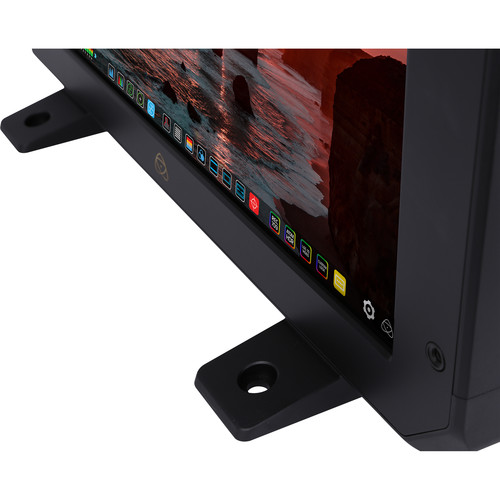

Name: ATOMOS SUMO19M 19" HDR/High-Brightness Monitor จอมอนิเตอร์ 19 นิ้ว ทัชสกรีน
SKU: SUMO19M
Availability: PreOrder

Weight
Without batteries, media & stand	5.35kg / 11.8lb
With stand	5.9kg / 13.0lb
Dimensions (W x H x D mm)	504 x 310 x 63mm, 19.8" x 12.2" x 2.5" (without stand) 504 x 330 x 180mm, 19.8" x 13" x 7.1" (with stand)
Construction	Aluminium alloy chassis with built in armor protection
Mounting Points	1/4-20 screw; 4 x top, 4 x bottom, 2 x side 3/8-16 screw; 2 x top, 2 x bottom, 1 x side VESA mount rear

Power
Operating power	75W
Compatible batteries	V-Lock / Anton Bauer via XLR terminal (optional mounting plates available) 95Wh or larger recommended.
Input voltage (battery)	14.4V nominal
Battery time	Depends on Watt Hours specification of battery used
DC In	1 x DC in (12 - 16.8V)
Continuous power * Patent pending	Primary-secondary battery system. Change batteries without losing power Loop batteries continuously

Touchscreen
Size	19”
Resolution	1920 x 1200
PPI	120
Aspect ratio	16:9 native
Color Gamut	REC709 HDTV
Look up table (LUT) support	3D LUT (.cube format)
Anamorphic de-squeeze	2x, 1.5x, 1.33x, Panasonic 8:3
Technology	SuperAtom IPS panel (capacitive touch), calibration to Rec.709 with optional calibration unit

HDR
AtomHDR	Yes
Supported Log formats	Sony SLog2 / SLog3, Canon CLog / CLog 2, Arri Log C, Panasonic Vlog, JVC JLog, Red LogFilm
Supported Gamuts	Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / BT2020 / DCI P3 / DCI P3+ Panasonic V Gamut Arri Alexa Wide Gamut
Bit depth	10-bit (8+2 FRC)
Brightness	1200nit (+/- 10% @ center)
HDR input (PQ/HLG) HDR output (PQ/HLG)	Yes / Yes Yes / Yes

Video Input/Loop Out
HDMI	1 x HDMI (2.0)
SDI	2 x 4K-SDI 12G/6G or HD-SDI 3G/1.5G
Signal	Uncompressed true 10-bit or 8-bit 422 (camera dependent)

Video Output (Play Out)
HDMI	1 x HDMI (2.0)
SDI	1x 4K-SDI 12G/6G or HD-SDI 3G/1.5G
Signal	Uncompressed true 10-bit or 8-bit 422 (playback file dependent)

Supported Loop Out Formats
HDMI to HDMI	720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120 2160p 24/25/30/50/60
SDI to SDI	720p 50/60, 1080i 50/60 1080pSF 24/25/30 1080p 24/25/30/50/60/100/120 2160p 24/25/30/50/60

Video Signal Conversion
HDMI to SDI	720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200/240 2160p 24/25/30/50/60
SDI to HDMI	720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120/200/240 2160p 24/25/30/50/60

Supported Codecs & Frame Rates (Record & Playback)
Raw Record	N/A
Raw to ProRes / DNxHR	N/A
Video to ProRes / DNxHR (DNx utilizes a .MOV wrapper)	N/A

Onboard Processing
Pulldown removal	N/A
4K UHD downscale for HD monitoring	Yes - Loop-out (Not available in RAW)

Audio In/Out (48kHz PCM Audio)
HDMI	2 or 8ch 24-bit, camera dependent
SDI	12ch 48kHz 24-bit
Audio	Line in / Mic in / Headphone out 2ch 48kHz 24-bit
Headphone Out	3.5mm
Built-in Speakers	No

Playback
Playlist / Genlock / LTC	No / No / No
CDNG (Recorded content)	No
ProRes (Recorded content)	No
DNxHR / DNxHD (recorded content)	No

Recording
Pre-roll record	No
Custom timelapse	No
Meta data tagging	No
Supported media	2.5” SSD/HDD. Visit atomos.com/drives for list of tested and approved drives
Master caddy case	Master Caddy II (included) 75mm x 105mm x 12mm
Master caddy dock	2.5” SATA to USB 2.0/3.0
Supported applications	Supported Applications FCPX/FCP7+ / Media Composer 5.0+ / Premiere 5.5+ EDIUS 6.0+ / Vegas Pro 10+ / Lightworks / Autodesk Smoke 2015
XML support	No
Accessories included	SUMO19M unit, 1x Master Caddy II, 1x BattWing mount- ing bracket with 4x screws, 2x Desktop Feet with 4x 1/4” Mounting screws, AC power supply
Optional extras	Sunhood, VESA battery adapter plate, Atomos HDMI cable, X-Rite i1DisplayPro calibration
