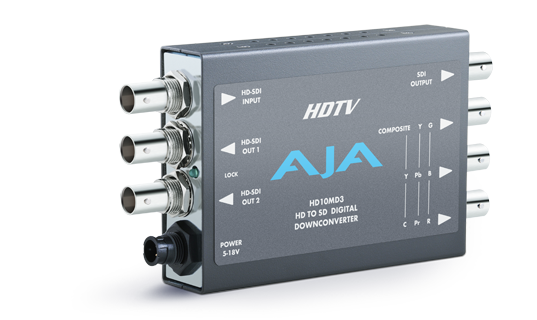

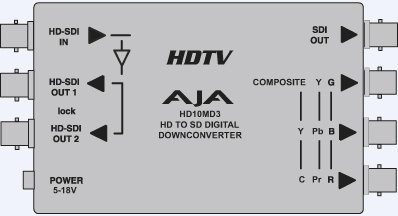

AJA HD10MD3
HD miniature digital down-converter

            HD10MD3 is a miniature digital down-converter for converting HD-SDI video to standard definition SDI and analog component/composite video. The HD10MD3 uses a full 10-bit data path and multi-point interpolation to produce broadcast quality down-converted video. In addition, the HD10MD3 converts either 1080p24 or 1080p24sf to 59.94 Hz output video using the standard 3:2 pulldown technique. The output can be formatted for either 4:3 or 16:9 standard definition monitors. Four-channel input embedded HD-SDI audio is passed to the SDI output.

Features

• Low Cost Digital HD Down-converter
• Dual rate HD-SDI/SDI Input
• HD-SDI/SDI Outputs
• Multi-Standard Input Including 1080p24/sf
• 10-bit Data Path, Multi-Point Interpolation
• Configurable for 16:9 or 4:3 Output
• 4:3 Safe-Zone Graticule
• Dipswitch User Configuration
• +5 to 18V DC, 6.5 Watts, Power Supply Required (included with purchase)
