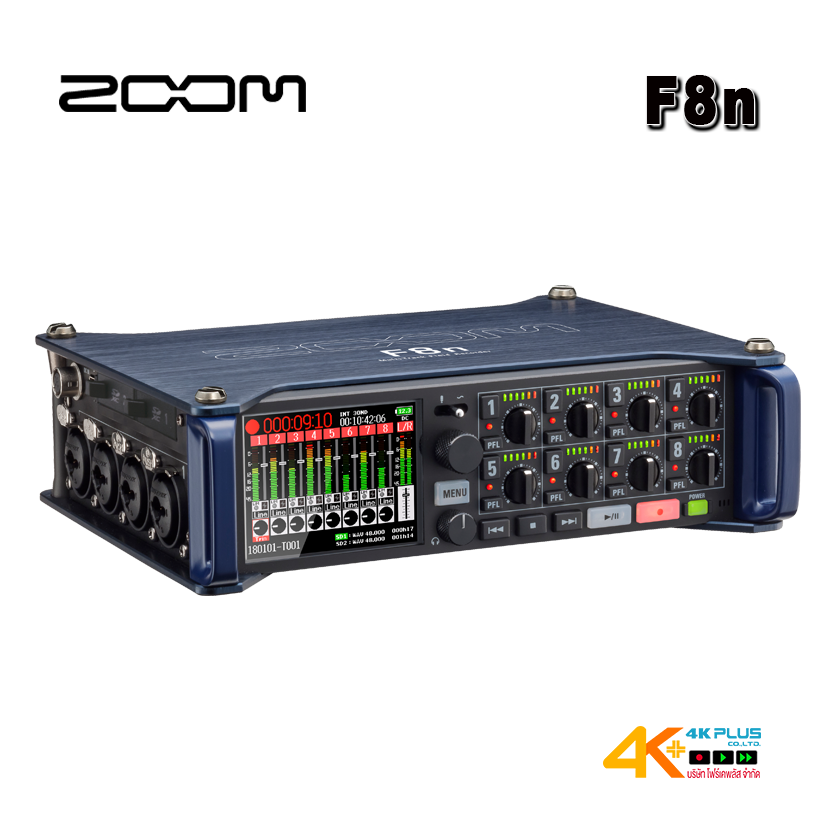

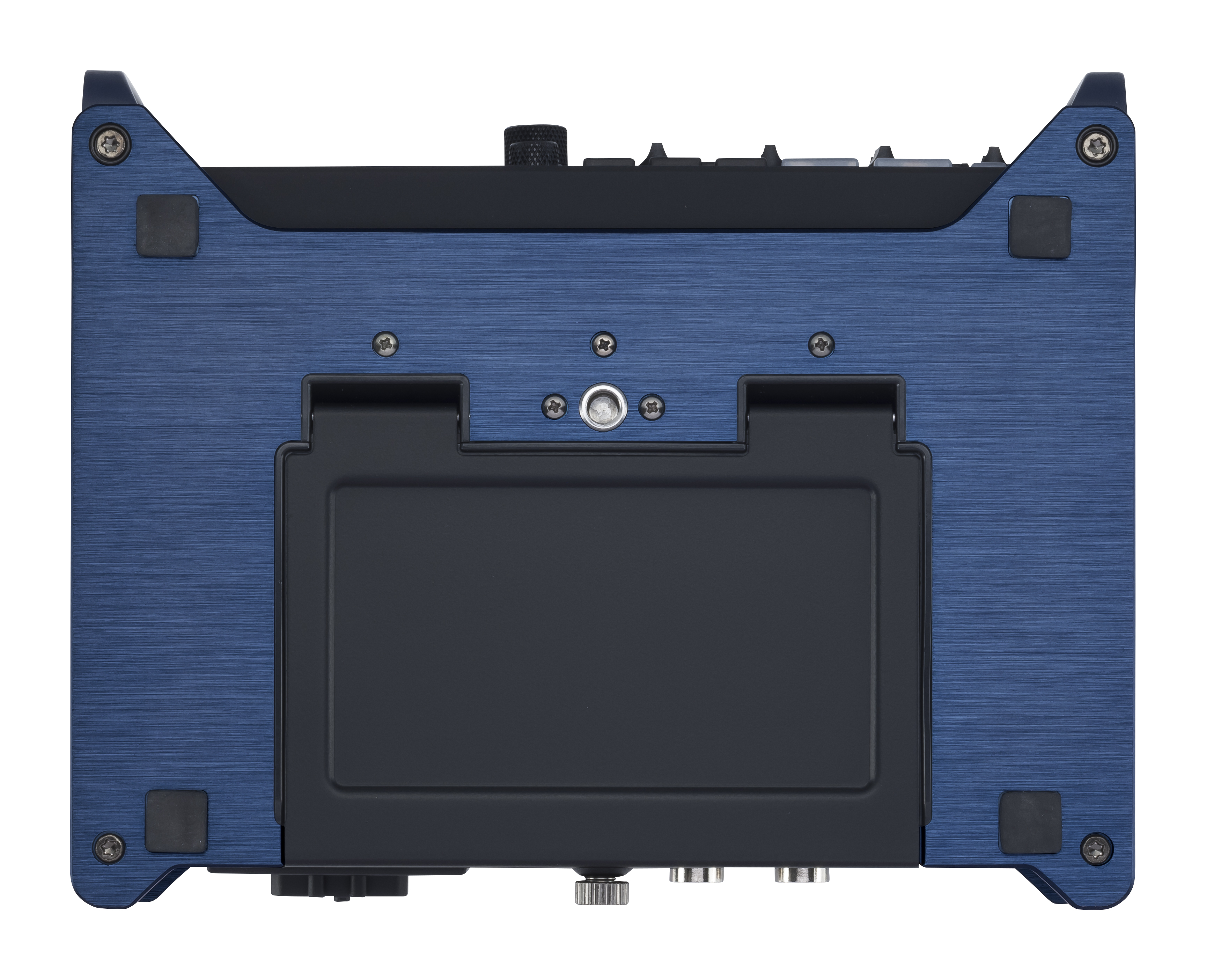

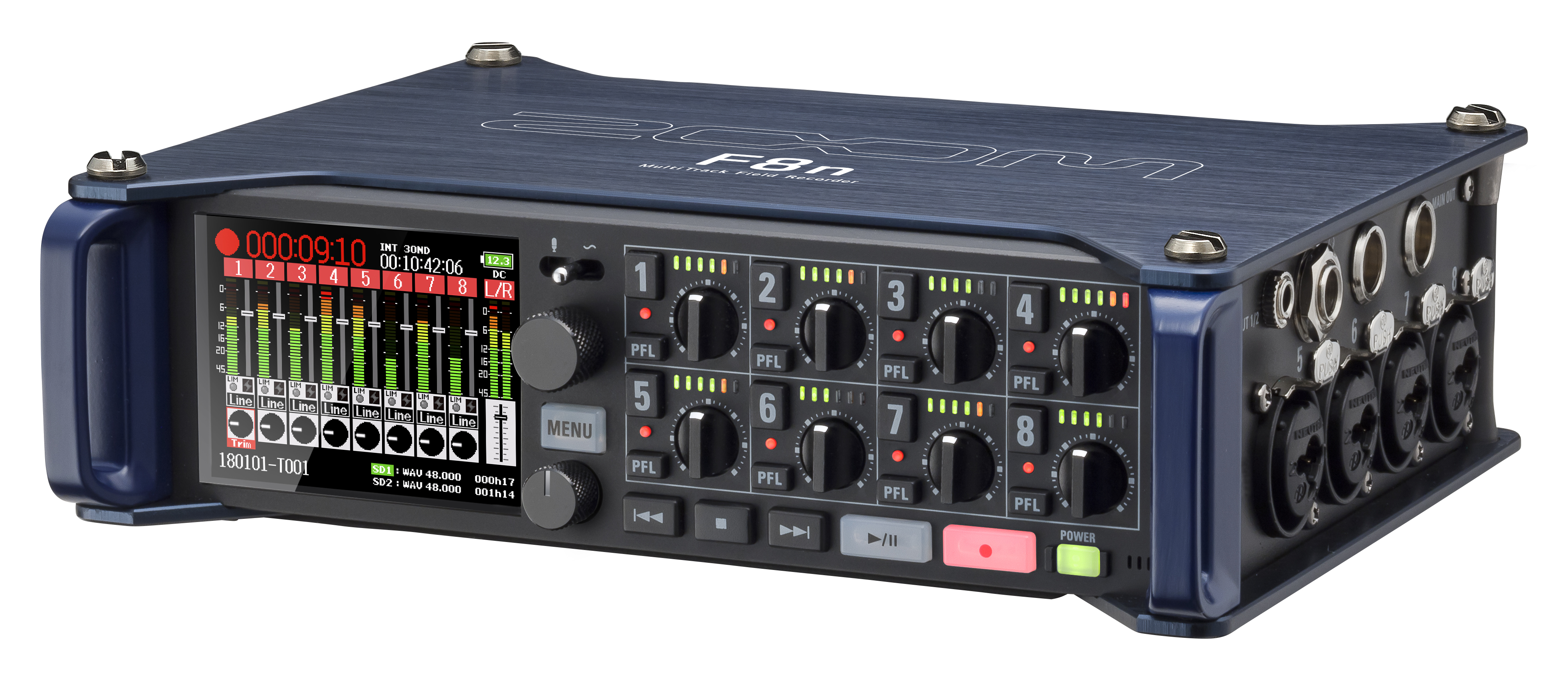

ZOOM F8n Multi-Track Field Recorder เครื่องบันทึกเสียงแบบพกพา
| รหัสสินค้า | F8N |
| หมวดหมู่ | Sound Other & Accessories |
| ราคา | 34,400.00 บาท |
| VAT7% | ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7% |
| สถานะสินค้า | Pre-Order |
| อัพเดทล่าสุด | 13 ก.พ. 2562 |
| จำนวน | ชิ้น |
รายละเอียดสินค้า
When developing the F8n, it was our mission to provide every sound professional with the tools to create something exceptional. With features such as Advanced Look-Ahead Hybrid Limiters, Zoom AutoMix™, and mic/line options for both XLR and TRS inputs, the F8n is the next generation of professional field recording.
Features
- 8-channel/10-track field audio recorder/mixer

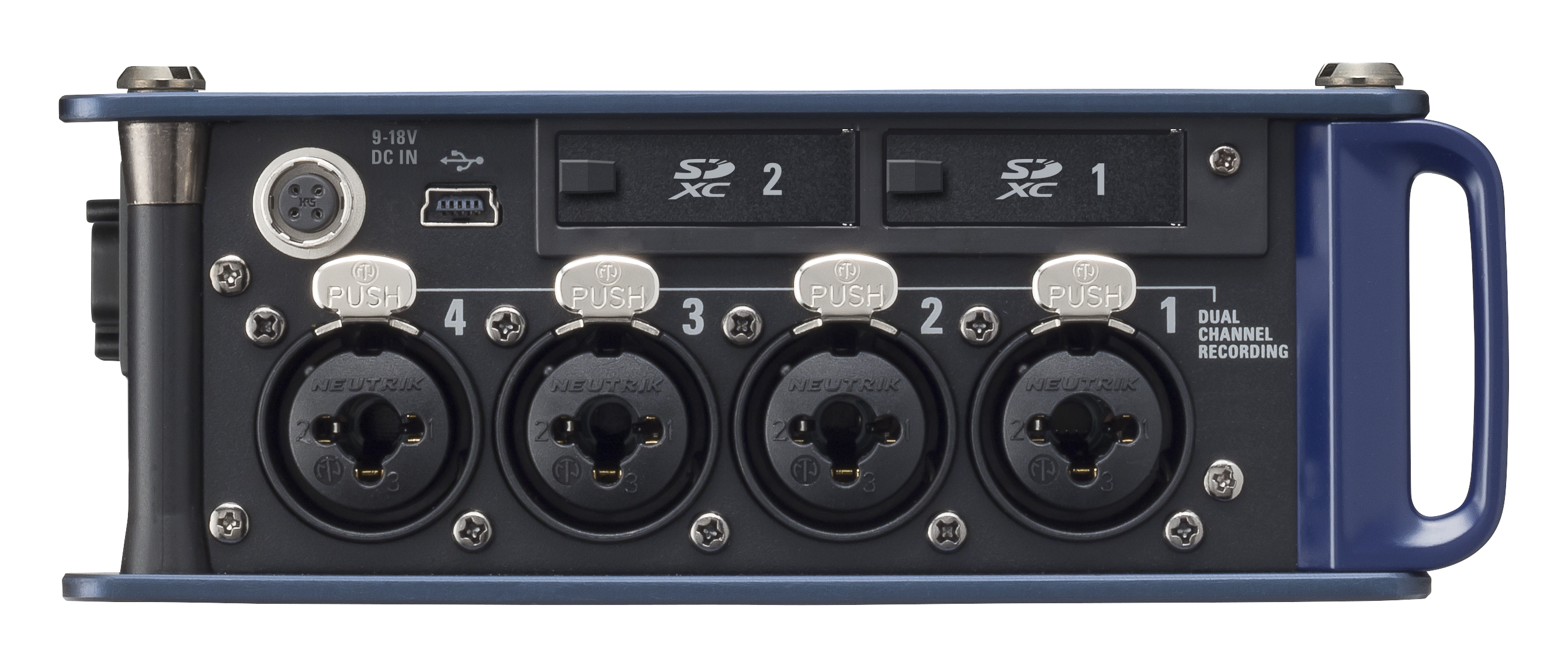

- 8 discrete inputs with locking Neutrik XLR/TRS combo connectors
- Compact and lightweight aluminum chassis, weighing just
2 pounds (without batteries) - High quality mic preamps with up to 75 dB gain and less than -127 dBu EIN
- Switchable +4dB inputs with mic/line options for both XLR and TRS
- Advanced Look-Ahead Hybrid Limiters
- Zoom AutoMix™ software
- Support for up to 24-bit/192 kHz recording, and 44.1 kHz, plus 47.952 kHz/48.048 kHz for HD video compatibility;
16-/24-bit resolution - Accurate Time Code (0.2 ppm when on and up to 0.2 ppm when powered off) I/O on standard BNC connectors; dropframe/non-drop formats with Jam Sync
- Three different power supply options: 8x AA batteries, external DC battery pack with Hirose connector, or 12V AC adapter (AA’s and DC battery pack not included)

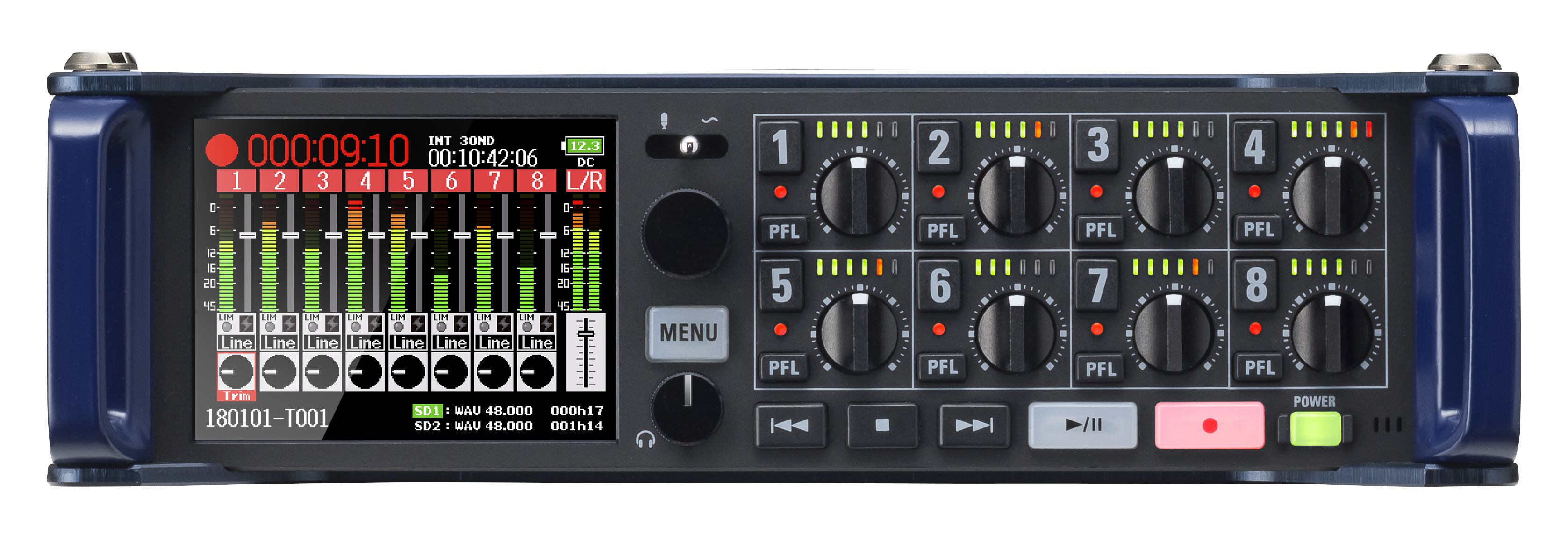

- Dedicated gain control knob, 6-segment LED level meter, and PFL/Solo switch for each channel
- High pass filter, phase invert, and Mid-Side decoder
- Input delay of up to 30 msec per channel / output delay of up to 10 frames per output
- Compatible with Zoom microphone capsules; optional extender cable enables remote positioning

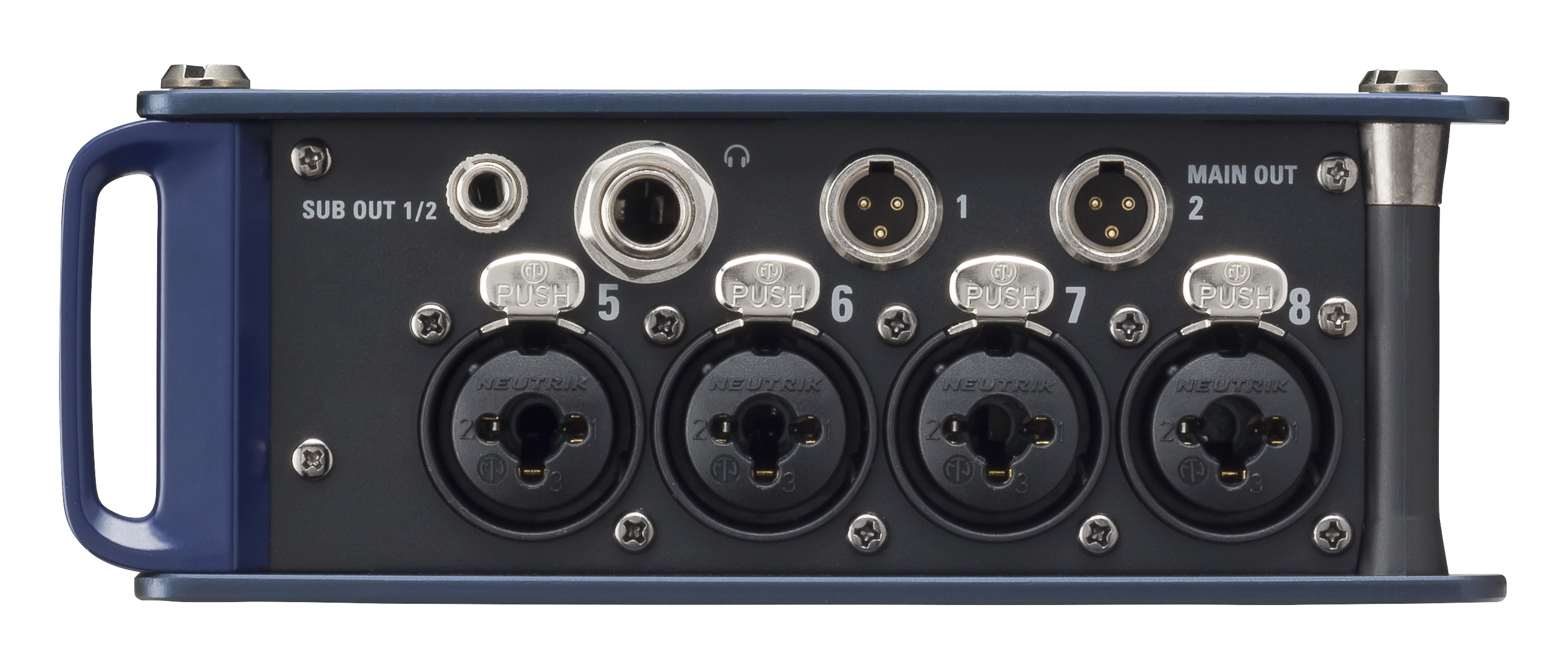

- Dual mini-XLR (TA3) balanced Main Outs plus ⅛" stereo mini-jack Sub Out
- Dedicated headphone output (100 mW) with front panel volume control
- 2.4" full-color backlit LCD with monochromatic mode
- Dedicated PFL display with viewable trim settings
- Dual SD/SDHC/SDXC card slots, up to 512 GB each
- Records in BWF-compliant WAV or MP3 file formats
- Support for extensive metadata (BWF and iXML); input time, date, project, scene number, etc.
- Built-in slate mic/slate tone with front panel switch
- Use as an 8-in/4-out USB audio interface (@ 96 kHz)
- Free Zoom F8 Control App for iOS allows wireless remote control, file renaming, and metadata entry
Tech Specs
| RECORDING MEDIA | |
|---|---|
| Dual SD card slots supports:: |
16MB–2GB SD cards, 4GB–32GB SDHC cards and 64GB–512GB SDXC cards |
| INPUTS 1-8 | |
| Connectors: |
XLR/TRS combo jacks (XLR: 2 hot, TRS: TIP hot) |
| INPUT SOURCE SET TO MIC | |
| Input gain: |
+10 – +75 dB |
| Input impedance: |
2 kΩ |
| Maximum input level: |
+14 dBu (at 0 dBFS, limiter ON) |
| Phantom power: |
+24/+48V 10mA maximum for each channel |
| INPUT SOURCE SET TO LINE | |
| Input gain: |
-10 – +55 dB |
| Input impedance: |
2.6 kΩ |
| Maximum input level: |
+24 dBu (at 0 dBFS, limiter ON) |
| INPUTS: ADDITIONAL INFO | |
| Equivalent input noise: |
−127 dBu or less (A-weighted, +75dB input gain, 150Ω input) |
| Frequency characteristics: |
10 Hz – 80 kHz +0.5dB/−1dB (192kHz sampling rate) |
| A/D dynamic range: |
120 dB typ (−60dBFS input, A-weighted) |
| Crosstalk: |
−90 dB or less (between adjacent channels, 1kHz) |
| MIC IN: |
ZOOM mic capsule input (use disables Inputs 1/2) |
| SLATE MIC: |
Built-in mic for voice memos can be assigned to tracks freely |
| OUTPUTS : MAIN OUT 1/2 | |
| Connectors: |
TA3 connectors, balanced output (2: hot) |
| Output impedance: |
150 Ω or less |
| Reference output level: |
−10 dBV (normal output level), +4 dBu (Output Level: Line), 1 kHz, 600Ω load |
| Maximum output level: |
+10 dBV (normal output level), +24 dBu (Output Level: Line), 1 kHz, 600Ω load |
| OUTPUTS: SUB OUT 1/2 | |
| Connector: |
3.5mm stereo mini unbalanced output jack |
| Output impedance: |
100 Ω or less |
| Reference output level: |
−10 dBV (normal output level), −40 dBV (mic output level), 1 kHz, 10kΩ load |
| Maximum output level: |
+10 dBV (normal output level), -20 dBV (mic output level), 1 kHz, 10kΩ load |
| HEADPHONE | |
| Connector: |
1/4" unbalanced stereo output jack |
| Output impedance: |
15 Ω or less |
| Maximum output level: |
100mW + 100mW (32Ω load) |
| D/A | |
| D/A dynamic range: |
106 dB typ (−60dBFS input, A-weighted) |
| RECORDING FORMATS: WHEN WAV SELECTED | |
| Supported formats: |
44.1/47.952/48/48.048/88.2/96/192kHz, 16/24-bit, mono/stereo//2-10ch poly, BWF and iXML |
| Maximum simultaneous recording tracks: |
10 (8 inputs + stereo mix) |
| RECORDING FORMATS: WHEN MP3 SELECTED | |
| Supported formats: |
128/192/320kbps, 44.1/48kHz, ID3v1 tags |
| Maximum simultaneous recording tracks: |
2 |
| RECORDING TIME | |
| Using a 32GB card: |
30:51:00 (48 kHz/24-bit stereo WAV) |
| TIME CODE | |
| Connector: |
BNC |
| Modes: |
Off, Int Free Run, Int Record Run, Int RTC Run, Ext, Ext Auto Rec (audio clock can be synchronized to timecode) |
| Frame rates: |
23.976ND, 24ND, 25ND, 29.97ND, 29.97D, 30ND, 30D |
| Precision: |
±0.2 ppm |
| Supported input levels: |
0.2 – 5.0 Vpp |
| Input impedance: |
4.6 kΩ |
| Output level: |
3.3 Vpp |
| Output impedance: |
50 Ω or less |
| POWER SUPPLIES | |
| Batteries: |
8 AA |
| AC adapter: |
AC adapter: AD-19 DC12V 2A (center plus) |
| External DC power supply: |
HIROSE HR10A-7R-4S 4-pin connector |
| Power consumption: |
15 W |
| CONTINUOUS RECORDING TIME WHEN RECORDING 2 CHANNELS AT 48KHZ/16-BIT TO SD1 WITH MAIN/SUB OUT OFF, TIME CODE OFF, LED/LCD BRIGHTNESS 5, 32Ω HEAD- PHONES, PHANTOM OFF | |
| Alkaline batteries: |
6 hours or more |
| NiMH (2450 mAh): |
8.5 hours or more |
| Lithium batteries: |
12 hours or more |
| CONTINUOUS RECORDING TIME WHEN RECORDING 8 CHANNELS AT 48KHZ/24-BIT TO SD1 WITH MAIN/SUB OUT OFF, TIME CODE OFF, LED/LCD BRIGHTNESS 5, 32Ω HEAD- PHONES, PHANTOM OFF | |
| Alkaline batteries: |
3.5 hours or more |
| NiMH (2450 mAh): |
6 hours or more |
| Lithium batteries: |
8 hours or more |
| CONTINUOUS RECORDING TIME WHEN RECORDING 8 CHANNELS AT 192KHZ/24-BIT TO SD1 WITH MAIN/SUB OUT ON, TIME CODE INT FREE RUN, LED/LCD BRIGHTNESS 60, 32Ω HEADPHONES, PHANTOM 48V | |
| Alkaline batteries: |
1 hour or more |
| NiMH (2450 mAh): |
2 hours or more |
| Lithium batteries: |
3 hours or more |
| DISPLAY | |
| 2.4" full-color LCD: |
320x240 |
| USB: MASS STORAGE OPERATION | |
| Class: |
USB 2.0 High Speed |
| USB: MULTI TRACK AUDIO INTERFACE OPERATION (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC) | |
| Class: |
USB 2.0 High Speed |
| Specifications: |
44.1/48/88.2/96kHz sampling rate, 16/24-bit , 8 in/4 out |
| USB : STEREO MIX AUDIO INTERFACE OPERATION (NO DRIVER REQUIRED) | |
| Class: |
USB 2.0 Full Speed |
| Specifications: |
44.1/48kHz sampling rate, 16-bit , 2 in/2 out |
|
Note: iPad audio interface operation supported (Stereo Mix mode only) |
|
| AUDIO INTERFACE WITH REC. (DRIVER REQUIRED FOR WINDOWS, NOT REQUIRED FOR MAC) | |
| Class: |
USB 2.0 High Speed |
| Specifications: |
44.1/48 kHz sampling rate, 16/24-bit , 10 in/4 out |
| EXTERNAL DIMENSIONS | |
| Main unit: |
7.0 in. (W) × 5.5 in. (D) × 2.1 in. (H) 178.2 mm (W) × 140.3 mm (D) × 54.3 mm (H) |
| WEIGHT | |
| Main unit only: |
2.2 pounds (1000 g) |
