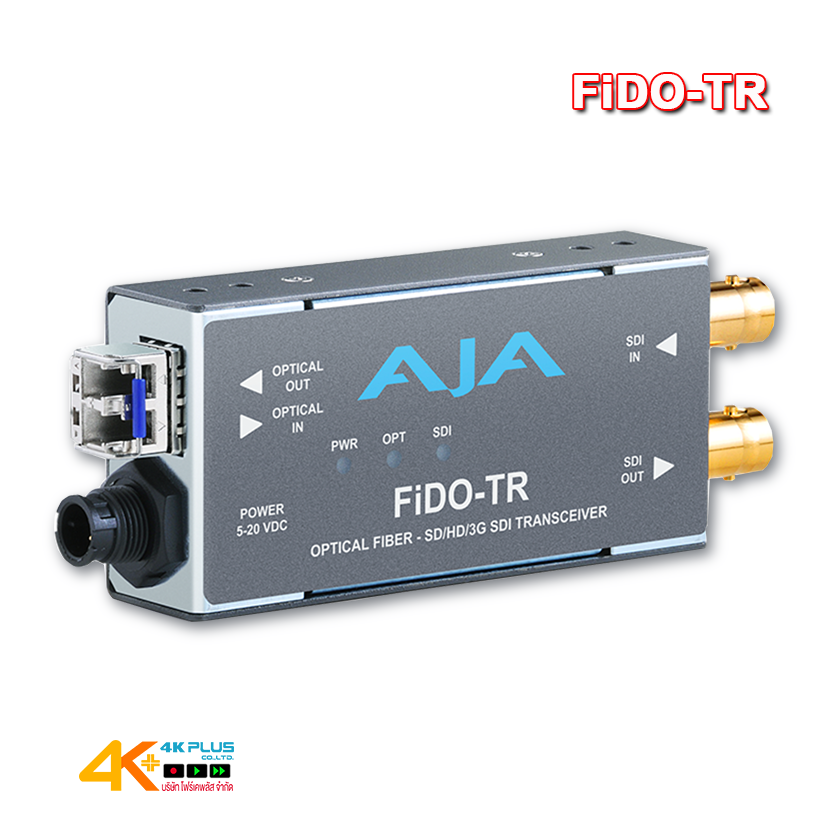

AJA FiDO-TR 1-Channel 3G-SDI/LC Single-Mode LC Fiber Transceiver

Video Formats

• 100 Mbps - 3 Gbps, format agnostic

Video Input Digital

• 1-Channel independent 3G-SDI, SMPTE-259/292/424
• 1-Channel Single Mode LC Fiber connector, SMPTE-297
• Nominal Wavelength: 1310 nm
• Optical Sensitivity: -18dBm (min)
• Optical Power: -7dBm (min), -2dBm (max)
• Overload Power: -3dBm (min)
• Extinction Ratio: 7.5dB (Typ)

Video Output Digital

• 1-Channel independent 3G-SDI, SMPTE-259/292/424
• 1-Channel Single Mode LC Fiber connector, SMPTE-297
• Nominal Wavelength: 1310 nm
• Optical Sensitivity: -18dBm (min)
• Optical Power: -7dBm (min), -2dBm (max)
• Extinction Ratio: 7.5dB (Typ)

Reclocking

• 270 Mbps, 1.483 Gbps, 1.485 Gbps, 2.966 Gbps, 2.970 Gbps - Auto Select
• All other rates are passed through and not reclocked

Size (w x d x h)

• 4.6" x 1.71 " x.85" (117 x 43.5 x 21.6mm)

Power

• 3 watts max
• Uses 5-20VDC power (AJA power supply model DWP-U-R1 included)

Environment

• Safe Operating Temperature: 0 to 40 degrees C (32 to 104 degrees F)
• Safe Storage Temperature (Power OFF): -40 to 60 degrees C (-40 to 140 degrees F)
• Operating Relative Humidity: 10-90% noncondensing
• Operating Altitude: <3,000 meters (<10,000 feet)
