Teradek VidiU Pro Stream Broadcast Quality HD Video

Teradek VidiU Pro Stream Broadcast Quality HD Video
Teradek VidiU Pro Stream Broadcast Quality HD VideoTeradek VidiU Pro Stream Broadcast Quality HD VideoTeradek VidiU Pro Stream Broadcast Quality HD VideoTeradek VidiU Pro Stream Broadcast Quality HD Video
รหัสสินค้า VidiU Pro
หมวดหมู่ Streaming Box / Encoder / Decoder
ราคา 38,600.00 บาท
VAT7% ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
สถานะสินค้า พร้อมส่ง
อัพเดทล่าสุด 24 ต.ค. 2561
จำนวน
ชิ้น
หยิบลงตะกร้า
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay

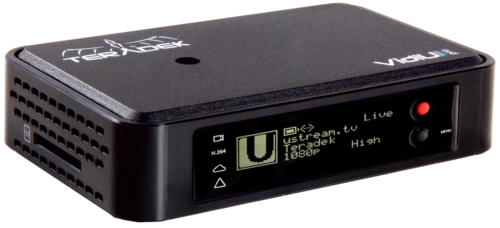

Teradek VidiU Pro
กล่องสตรีมมิ่ง ใช้ App ตั้งค่าการไลฟ์ได้เลย

Highlights

  • Stream Broadcast Quality HD Video
  • Deliver to Platforms and RTMP Addresses
  • Accepts Any HDMI Camera Source
  • Bluetooth Configuration via Tablet/Phone
  • Two Hour Internal Lithium-Ion Battery
  • Record to SD Card via Built-In SD Port
  • Get Max Bandwidth via Teradek ShareLink


The free VidiU app for iOS allows you to add a scoreboard or simple graphics on top of your live stream without interrupting the production. The app can also be used quick configuration and for monitoring your broadcast in real-time.

Tech Specs

Video -



Video Inputs

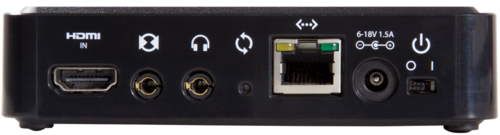

  • 1 x HDMI Type-A receptacle

Bonding -



Bonding

  • ShareLink

Supported Resolutions -



Supported Resolutions

  • 1080p 23.98/24/25/29.97/30
  • 1080i 50/59.94/60
  • 720p 50/59.94/60
  • 576i/p
  • 480i/p

Video Processing -



Video Compression

  • H.264, Baseline, Main Profiles

Supported Video Bitrate

  • 250 Kbps to 5 Mbps

Supported Video Bitrate Details

  • Full HD: 5.2 Mbit/s
  • HD+:3.0 Mbits/s
  • HD:2.2 Mbit/s
  • High: 1.4 Mbit/s
  • Medium: 796 Kbit/s
  • Low: 446 Kbit/s
  • Mobile: 273 Kbit/s

Supported Output Resolutions

  • 16:9 Widescreen:
  • Full HD: 1920 x 1080
  • HD+: 1280 x 720
  • HD: 1280 x 720
  • High: 960 x 540
  • Medium: 736 x 414
  • Low: 480 x 270
  • Mobile: 360 x 200
  • 4:3 Outputs:
  • Full HD: 1440 x 1080
  • HD: 960 x 720
  • High: 720 x 540
  • Medium: 560 x 414
  • Low: 368 x 270
  • Mobile: 272 x 200

Test Pattern Generator Support

  • None

Video Format Conversion Support

  • Built-in Video Scaler and DeInterlacer

Color Correction

  • None

Protocol Support -



Network Protocols

  • TCP/IP, UDP, HTTP, DHCP, NTP, SSL, IGMP

Supported Video Transport Protocols

  • RTMP

Software Or Platform Integration

  • Facebook, YouTube Live, Vimeo, Persicope, Twitch, Wowza, Ustream, and Livestream

Audio Processing -



Audio Compression

  • Audio compression: AAC-LC

Supported Audio Bitrate Details

  • HD: 256kbps
  • High: 192kbps
  • Medium: 128kbps
  • Low: 96kbps
  • Mobile: 48kbps

Inputs -



Audio Input

  • Embedded audio input, 2 Channel
  • Analog line or mic-in, 2 Channel

Outputs -



Audio Output

  • Headphone output, adjustable volume

Physical -



Dimensions

  • 4.7" W x 3" D x 1.2" H [119.38 x 76.2 x 30.48mm]

Weight

  • 6.7oz [198g]

Construction

  • ABS Plastic

Mountability

  • Can be mounted horizontally with
  • 1/4" 20 mounting holes

Interfaces -



Http

  • WebUI for Configuration and Control

Configuration Interfaces

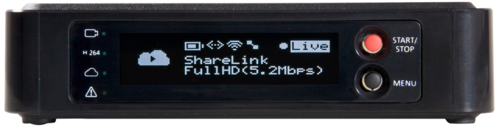

  • OLED display with joystick navigation buttons
  • Feature-rich WebUI for configuration and control

Switches

  • On/Off and reset switch

Recording Storage

  • SD/SDHC (class 6 and above) formatted FAT32
  • USB formatted FAT32

Mobile App

  • VidiU App for iOS and Android devices

Usb Interface Functionality

  • 1x Powered USB 2.0 host port

Network -



Ethernet

  • 10/100BASE-T

Wireless

  • WiFi: Dual Band MIMO 802.11 a/b/g/n

Usb

  • USB 3G/4G modem support

Rf Channel Selection

  • Auto with 3 modes: (2.4 or 5 Ghz), Auto (2.4 GHz only), Auto (5 Ghz only)
  • Configurable to specific channels

Power -



Power Input

  • 6-18V DC Barrel Adapter

Battery

  • Internal Rechargeable Lithium-ion Battery

Nominal Power Consumption

  • 4.5W (while charging: up to 10W)
