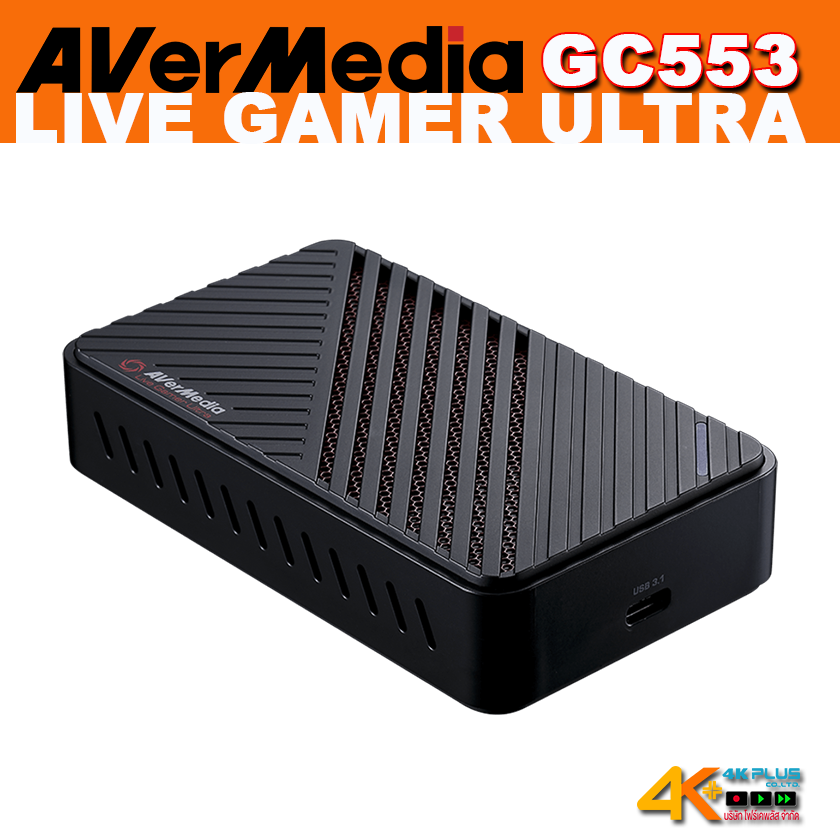

GC553 Avermedia Live Game Ultra แคสเกมระดับ 4K

4K High Dynamic Range Pass-through

Don’t give up 4K HDR content just to be able to record your gameplay. With 100% lag-free, 4Kp60 HDR video pass-through, the LGU allows you to enjoy mesmerizing 4K HDR gameplay and record at 4Kp30.

High Frame Rate Capture

With its high frame rate capture ability of up to 120 fps for Full HD signals, the LGU positions itself as the first external game capture device in the market to bring super smooth recordings to your archives.



Tech Specs

• Interface:USB 3.1 (Gen 1) Type C
• Video Input:HDMI 2.0
• Video Output (Pass-Through):HDMI 2.0
• Audio Input:HDMI 2.0
• Audio Output (Pass-Through):HDMI 2.0
• Max Pass-Through Resolutions:2160p60 HDR /1440p144 / 1080p240
• Max Record Resolutions:2160p30 / 1440p60 / 1080p120 / 1080p60 HDR
• Supported Resolutions (Video input):2160p, 1440p, 1080p, 1080i, 720p, 576p, 480p
• Record Format:MPEG 4 (H.264+AAC) or (H.265+AAC)*
• Dimension (W x D x H):112.6 x 66.2 x 26 mm (4.43 x 2.6 x 1.02 in)
• Weight:116 g (4.09 oz.)
Notes:
*H.265 Compression and HDR are supported by RECentral
1. LGU does not support viewing/recording/streaming of HDCP protected signals

System Requirements(For dedicated streaming PC)

Operating sytem: Windows® 10 x64 (Support UVC Protocol)For 4Kp30 or 1080p120 (4Kp60 HDR pass-through supported)
Desktop:Intel® Core™ i5-6XXX or above
NVIDIA® GeForce® GTX 1060 or above
8 GB RAM (Dual-channel)

Laptop:Intel Core i7-7700HQ or above
NVIDIA® GeForce® GTX1050 Ti or above
8 GB RAM (Dual-channel)

For 1080p60 (4Kp60 HDR pass-through supported)
Desktop:Intel® Core™ i5-4440 3.10 GHz or above
NVIDIA® GTX 660
4 GB RAM (8 GB recommended)

Laptop:Intel Core i7-4810MQ
NVIDIA® GeForce® GTX 870M or above
4 GB RAM (8GB Recommended)

Mac system requirement :
Operating system: MacOS High Sierra 10.13
Mac Thunderbolt 3 (USB‑C) Cable (0.8 m)

For 4Kp30 or 1080p120 (4Kp60 HDR pass-through supported)
iMac:3.6GHz quad-core Intel Core i7
Radeon Pro 555 with 2GB of VRAM
16GB of 2400MHz DDR4 memory

MacBook Pro:2.8GHz quad-core Intel Core i7
Radeon Pro 555X with 4GB of GDDR5 memory
16GB 2400MHz DDR4 memory

For 1080p60 (4Kp60 HDR pass-through supported) :

iMac:3.6GHz quad-core Intel Core i7
Radeon Pro 555 with 2GB of VRAM
16GB of 2400MHz DDR4 memory

MacBook Pro:2.6GHz quad-core Intel Core i7
Radeon Pro 450 with 2GB of GDDR5 memory
16GB of 2133MHz LPDDR3 onboard memory
Notes:
1. LGU does not support USB 2.0
2. LGU does not support USB 3.1 Gen 2
3. We strongly recommended to use Intel chipset.
4. For 4K, HDR or High frame rate recording only NVIDIA graphics card are supported.

What's in the box

• Live Gamer Ultra (GC553)
• HDMI 2.0 cable
• Type C to Type A Cable
• Quick guide
• CyberLink PowerDirector 15 Product Key Card* Notes:
*4K video editing software. Does not support HEVC encoded files or HDR editing. Please note that this version of PowerDirector 15 is not the retail version and some functionalities may be restricted or require paid upgrades.
