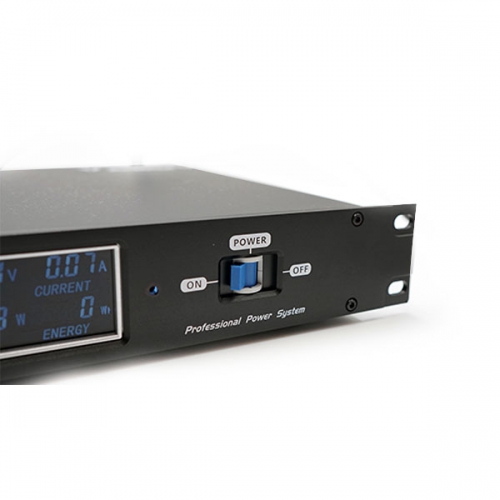

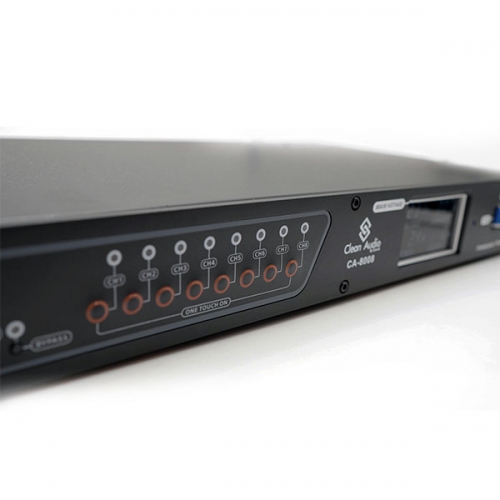

Clean Audio CA-8008 ปลั๊กรางกรองกระแสไฟไฟ้ 8 ช่อง

1. panel color: Aluminum black

2. power input condition (single phase 3 wire):AC90-260V 50-60HZ
    two phase (three wire: zero, fire, ground)

3. channel number: 8 way socket relay control

4. relay controlled output maximum withstand single power / total power (reactive power):
    2000W/6000W maximum withstand reactive power

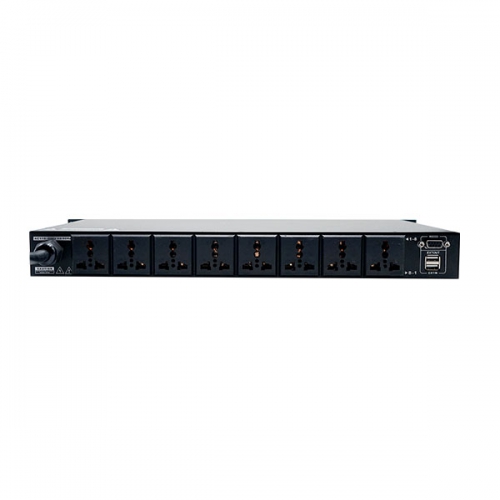

5. output power socket specifications: flame retardant ABS material, can withstand the maximum
    current of 13A copper material, standard universal socket

6. features: 1 in order to close the 2.PASS button to open the reverse control channel and full open
    3.COM access (command and control) or software control 4 time interval adjustable 5 free
    channels to close 6 ID:0-255 7 cascade folding machine control external control 8 overcurrent
    protection 9 channel independent closed panel

7. each switch interval time / time: default 1 second (set free by software)

8. output relay contact current: 30A 277VAC

9. circuit board specifications: double fiber board, the main power line with two bold thickening

10. power supply specification: built in switching power supply, suitable for global voltage
      AC90-260V 50-60HZ

11. main cable cable specifications: 3*4 square, a total length of 1.2 meters (with no power input plug)

12. open type: touch switch button

13. single way independent switch function: support panel independent control
      (software settings control)

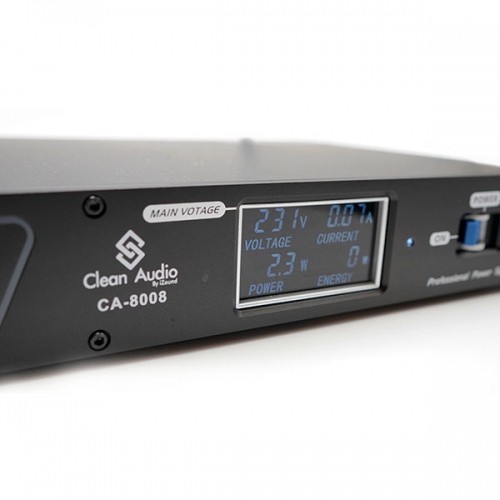

14. function display voltage display table type: large screen liquid crystal display voltmeter
      (blue or orange and white)

15 .cascade function: Yes

16. external control switch interface: RS232 COM interface

17. random control software and support for the central control function and the number of ID
     allocation: own command code and control software, support for central control, ID:0-255

18. power purification function (EMI professional power grid filter): no (can be matched with a single
      or each band filter)

19. short circuit over-current protection circuit breaker configuration: circuit breaker control over
      current protection ((40A short circuit protection))

20. body size: 480MM * 48MM * 210MM * (non-standard 1U)

21. single package size: length 560MM width 330MM * * high 105MM (imported leather box or color
      printing box)

22. the total number of total weight and outer packing size: 1 pieces of 5 sets of a total of 23KG, outer
      packing size: 575MM * 348MM * * 525MM

23. total weight (including packaging): 4.3KG
