XSW-D PORTABLE LAVALIER SET - Camera-Mount Digital Wireless Microphone System with Bodypack Transmitter and ME2-II Lav Mic (2.4 GHz)

XSW-D PORTABLE LAVALIER SET

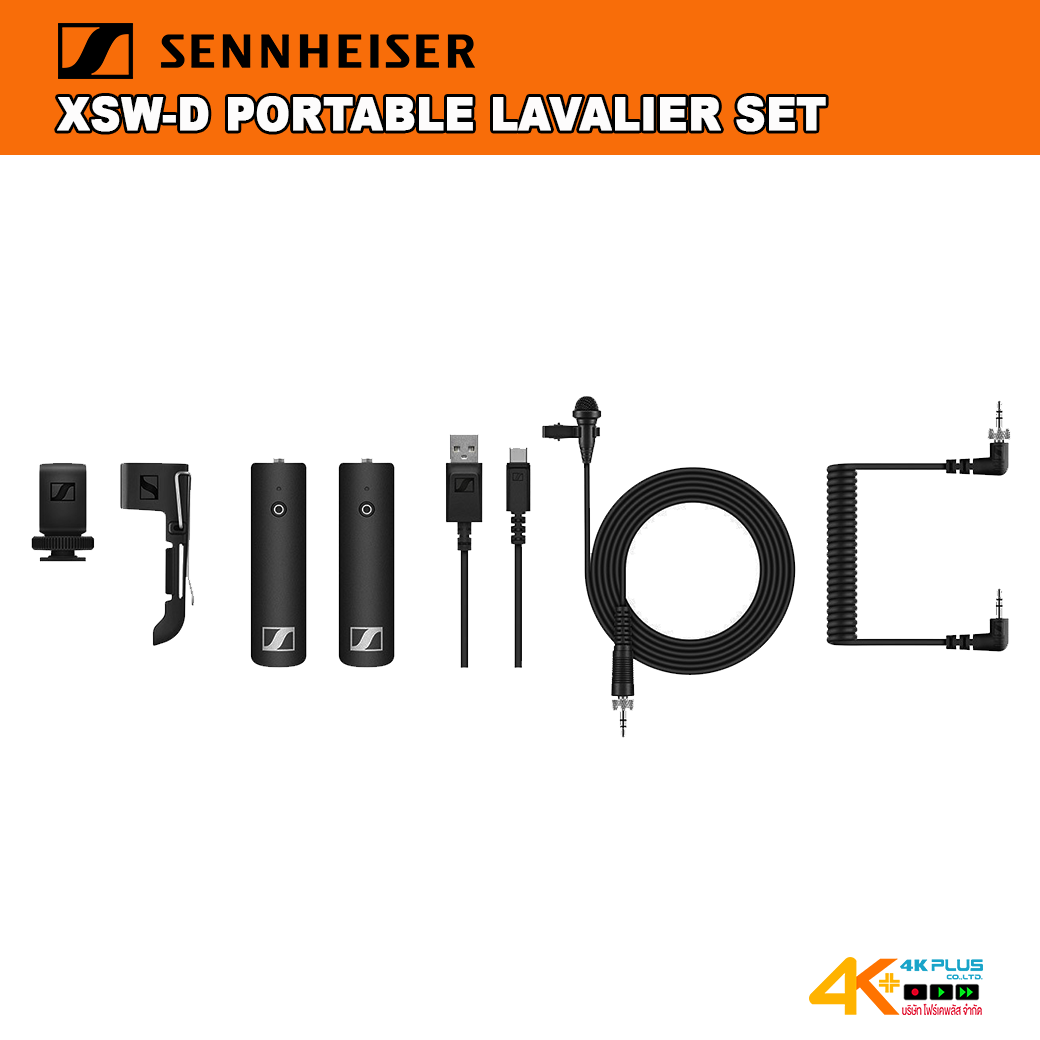

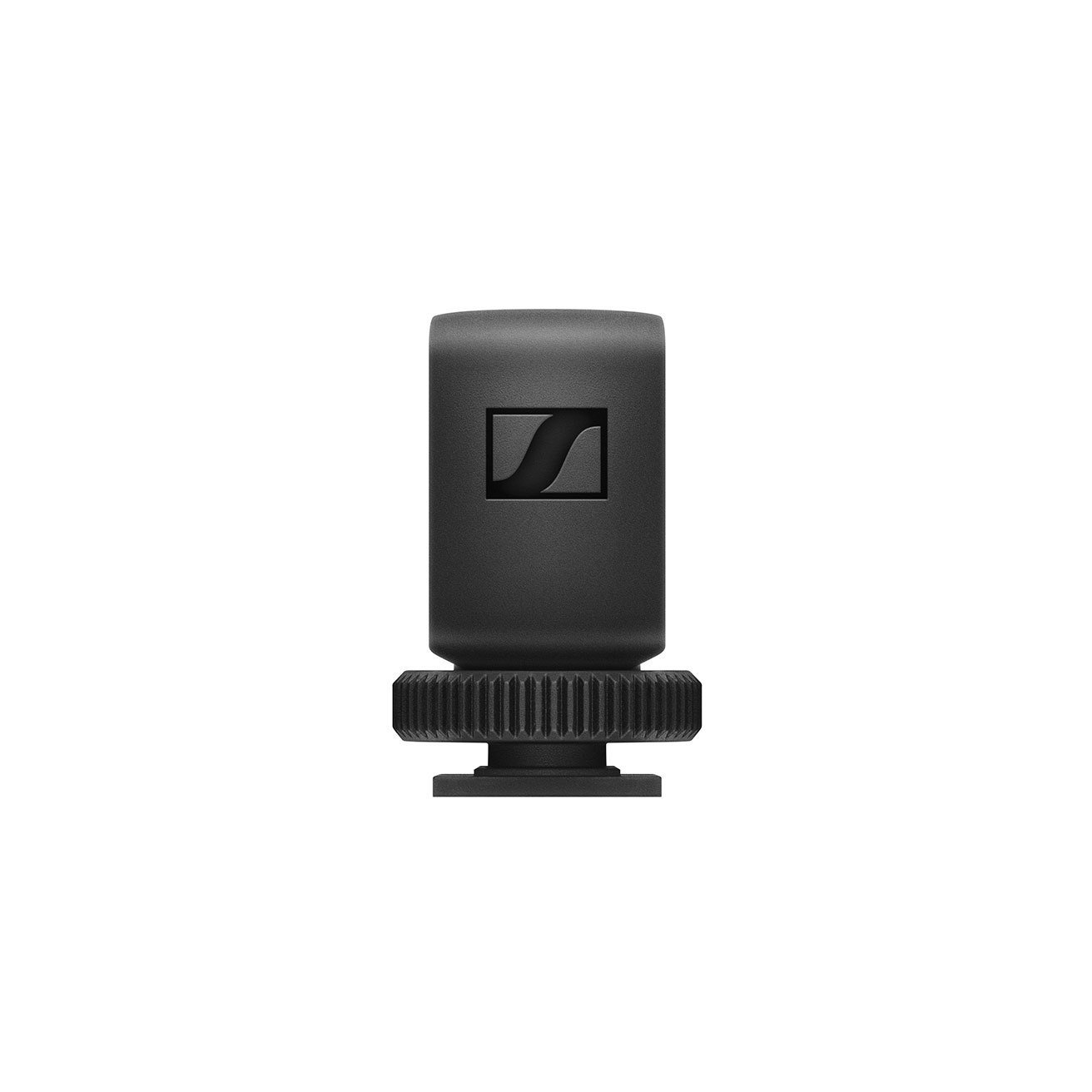

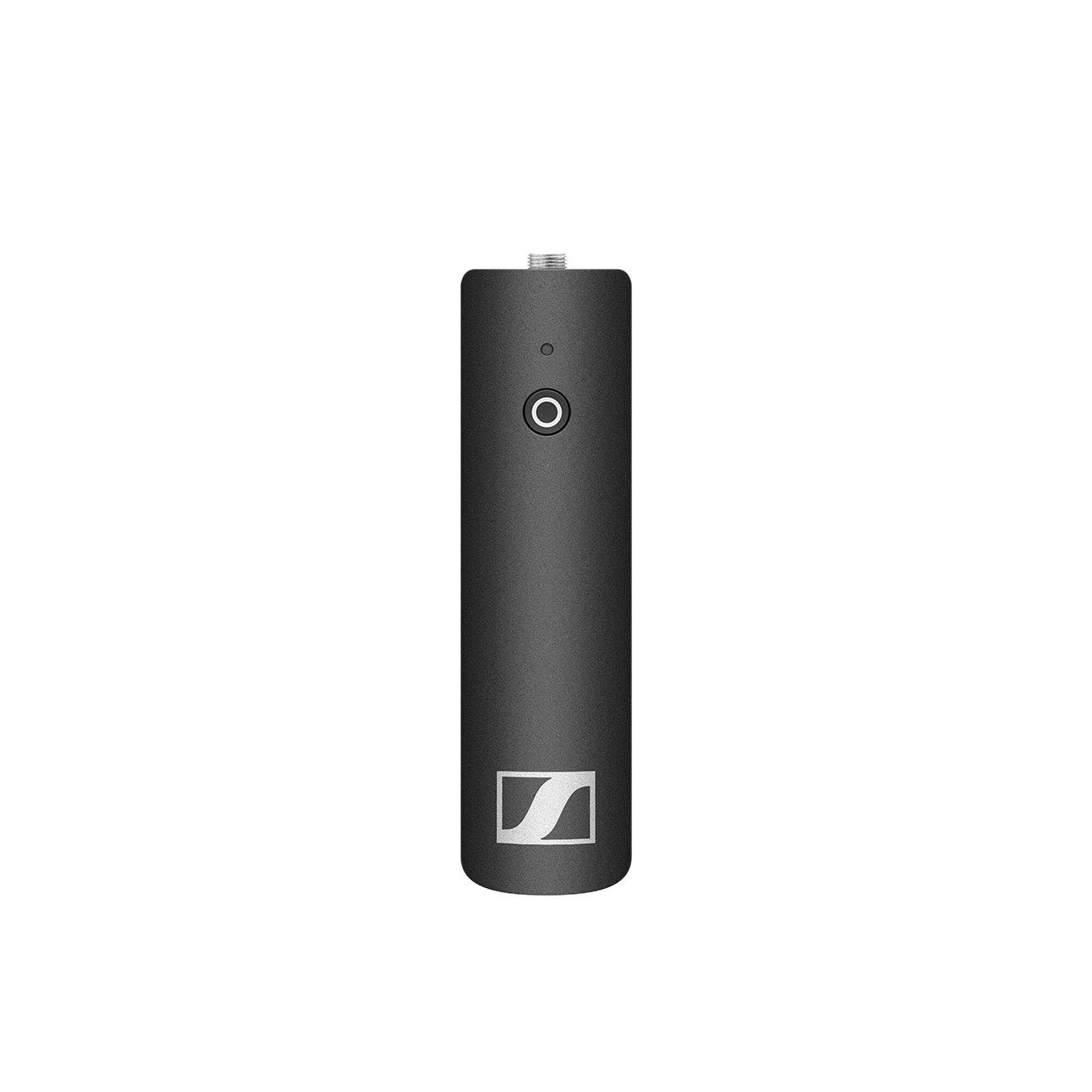

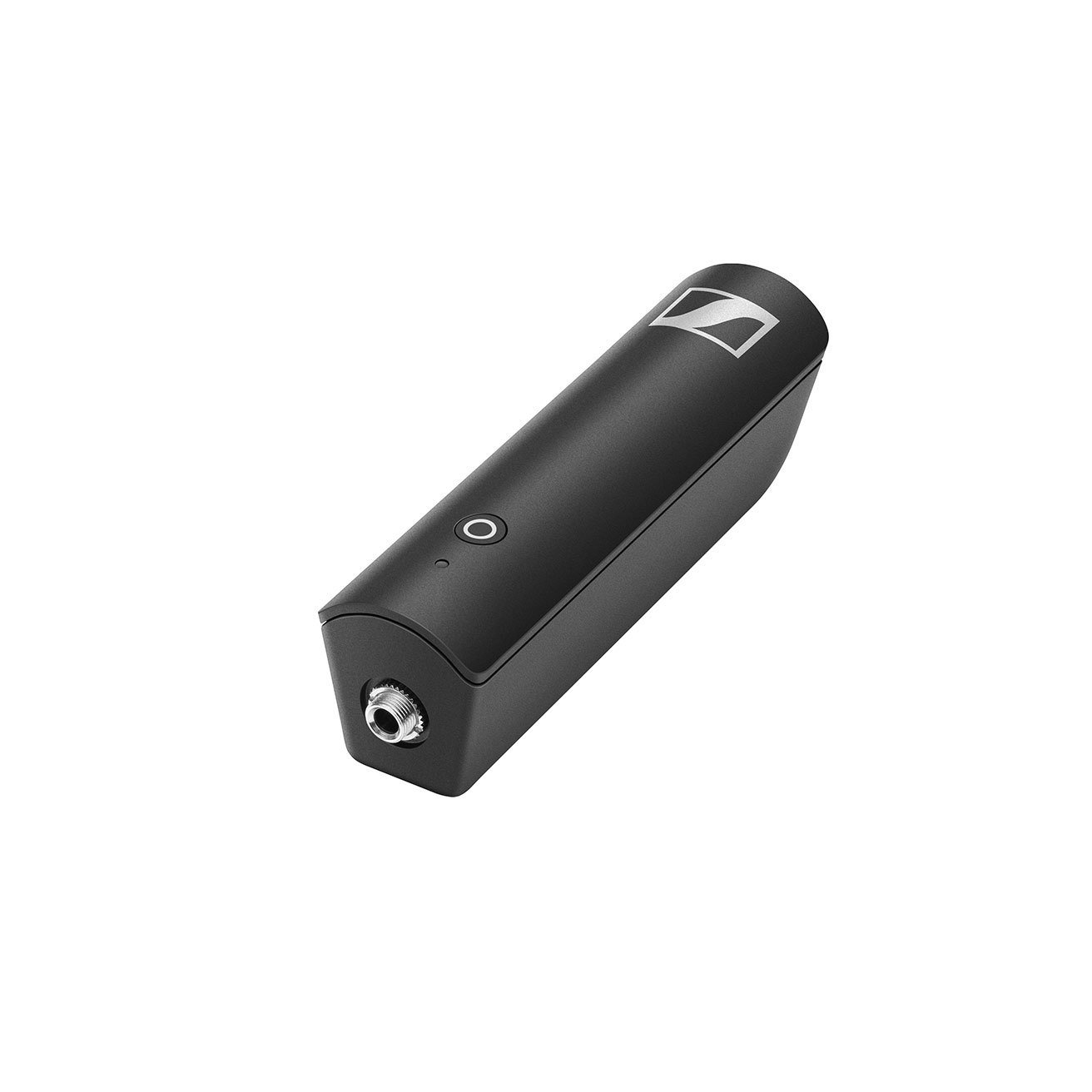

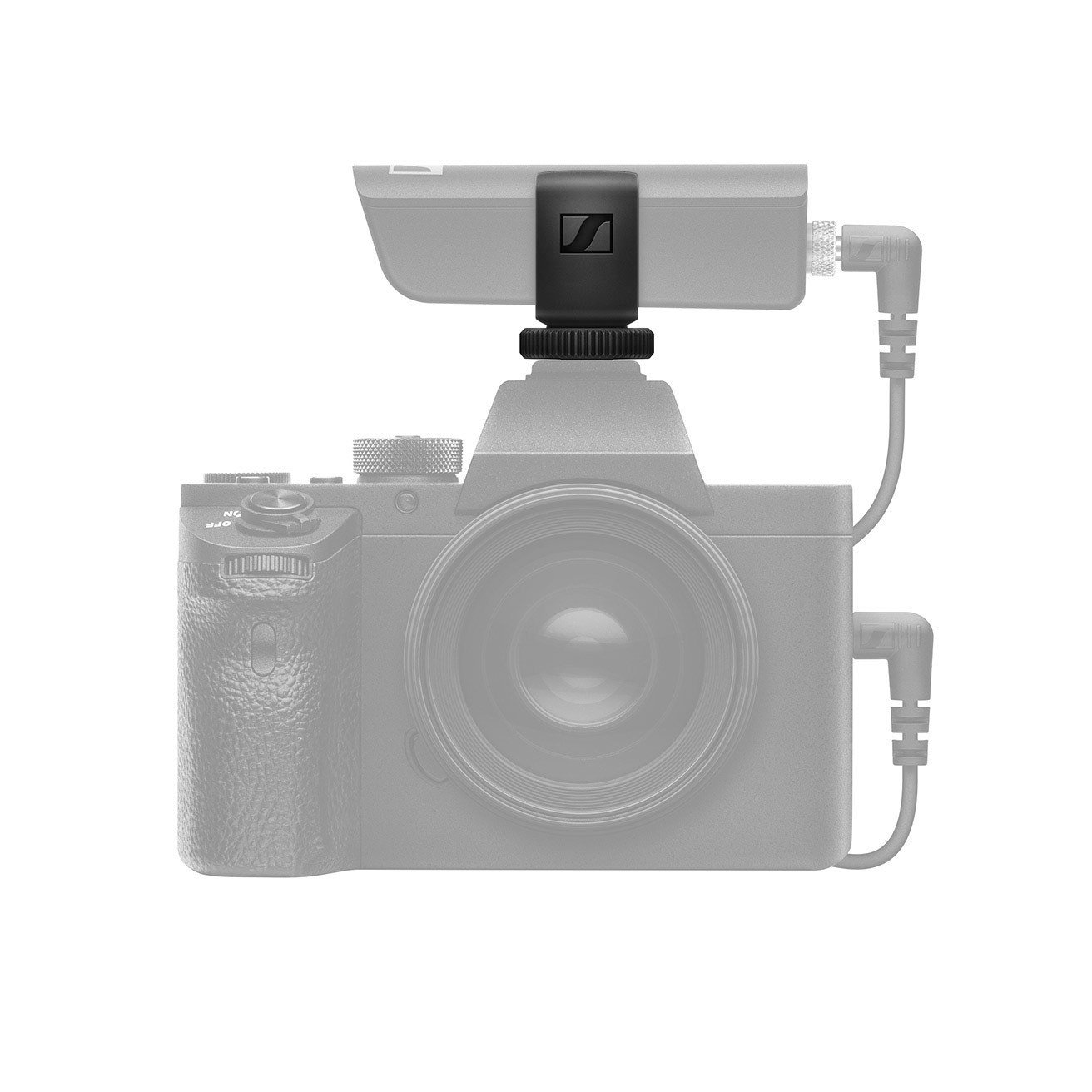

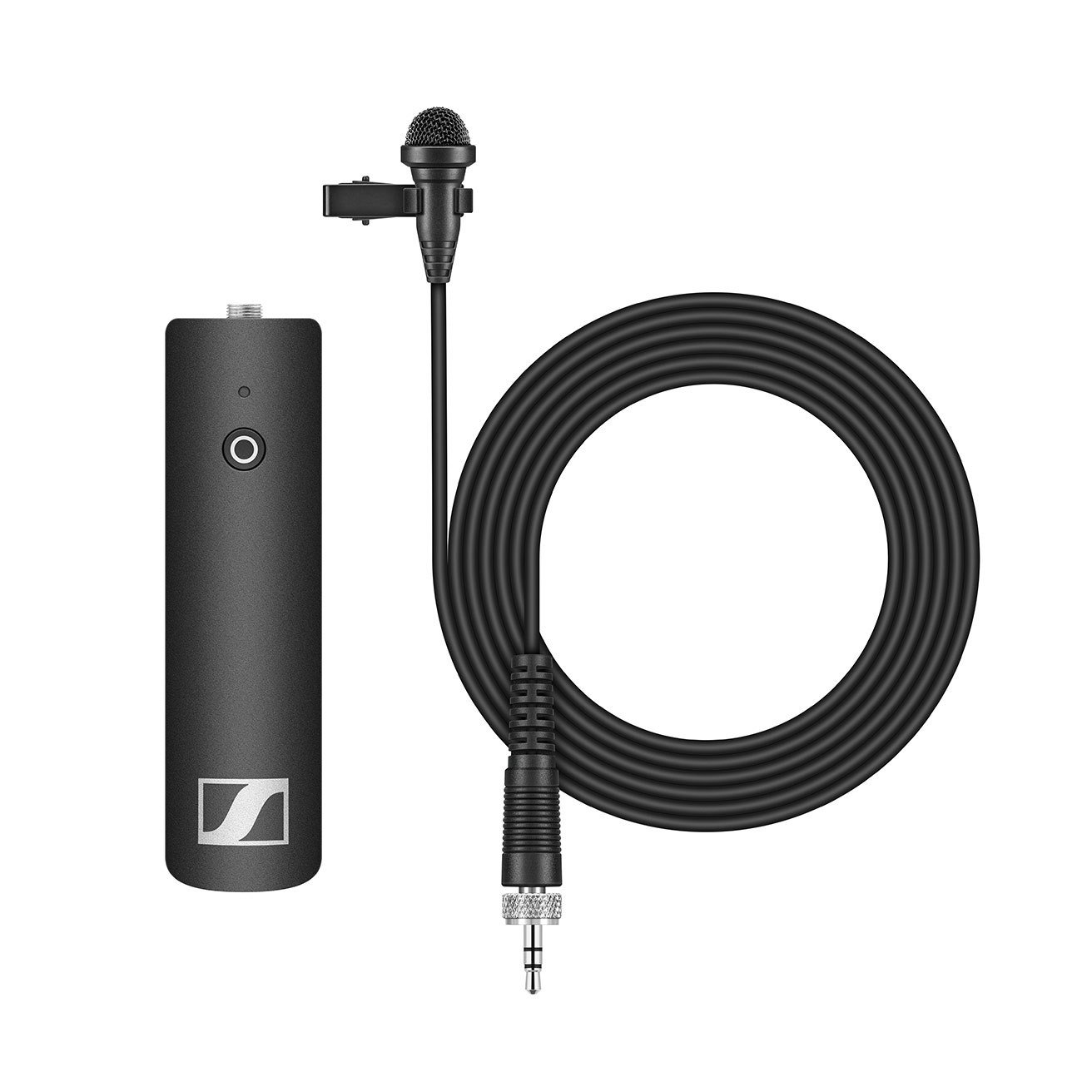

XS Wireless Digital Portable Lavalier Set. One-touch ease-of-use wireless audio set with XSW-D 3.5mm (1/8”) transmitter, XSW-D 3.5mm (1/8”) receiver, ME2-II clip-on lavalier mic, 3.5mm (1/8") coiled cable, cold shoe mount, belt clip
and USB-A to USB-C charging cable

Features

• One touch ease-of-use

• 2.4 GHz digital transmission for worldwide operation

• 75m range (250ft) in optimal conditions

• Up to 5 hours battery life on a single charge

• Switch between multiple transmitters linked to one receiver

• Configure any combination of transmitters and receivers

• Mute from either transmitter or receiver

• Dimensions

  XSW-D XLR FEMALE TX: approx. 102 x 24 x 28 mm

  XSW-D MINI JACK TX: approx. 86 x 24 x 28 mm

  XSW-D INSTRUMENT TX: approx. 122 x 24 x 28 mm

  XSW-D XLR MALE RX: approx. 109 x 24 x 28 mm

  XSW-D MINI JACK RX: approx. 86 x 24 x 28 mm

  XSW-D INSTRUMENT RX: approx. 122 x 24 x 28 mm

  XSW-D PEDALBOARD RX: approx. 130 x 82 x 51 mm

• THD, total harmonic distortion

  < 0.1 %

• Charging time

  typ. 3 h

• Audio output

  max. 12 dBu

• Operating temperature

  -10 °C to +55 °C (14 °F to 131 °F)

• Signal-to-noise ratio

  ≥ 106 dB

• Operating time

  up to 5 h

• Modulation

  GFSK with TDMA

• Battery Specification

  Li-Ion

• Capacity

  850 mAh

• Codecs

  aptX® Live

• Frequency range

  2,400 - 2,483.5MHz

• Max. Input voltage

  typ. 5.0 V

• Transmission power

  max. 10 mW

• Voltage

  3.7 V

• Operating relative humidity

  95 % (non-condensing)

• Latency

  < 4 ms

• Temperature Range

  0 °C - 60 °C (32 °F - 140 °F)

• Audio frequency response

  3.5 mm Jack/XLR: 80 - 18,000 Hz

  6.3 mm Jack: 10 - 18,000 Hz
