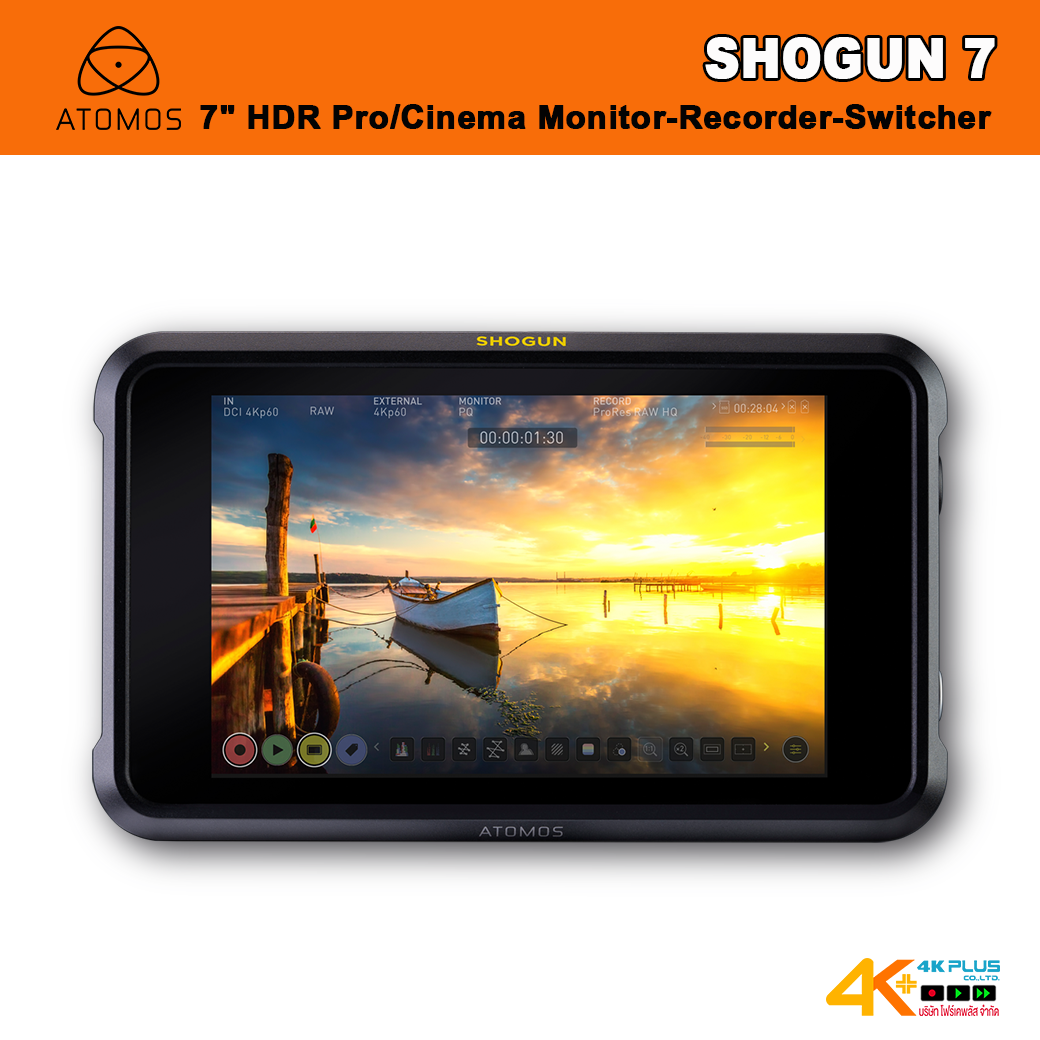

Atomos Shogun 7
7" HDR Pro/Cinema Monitor-Recorder-Switcher

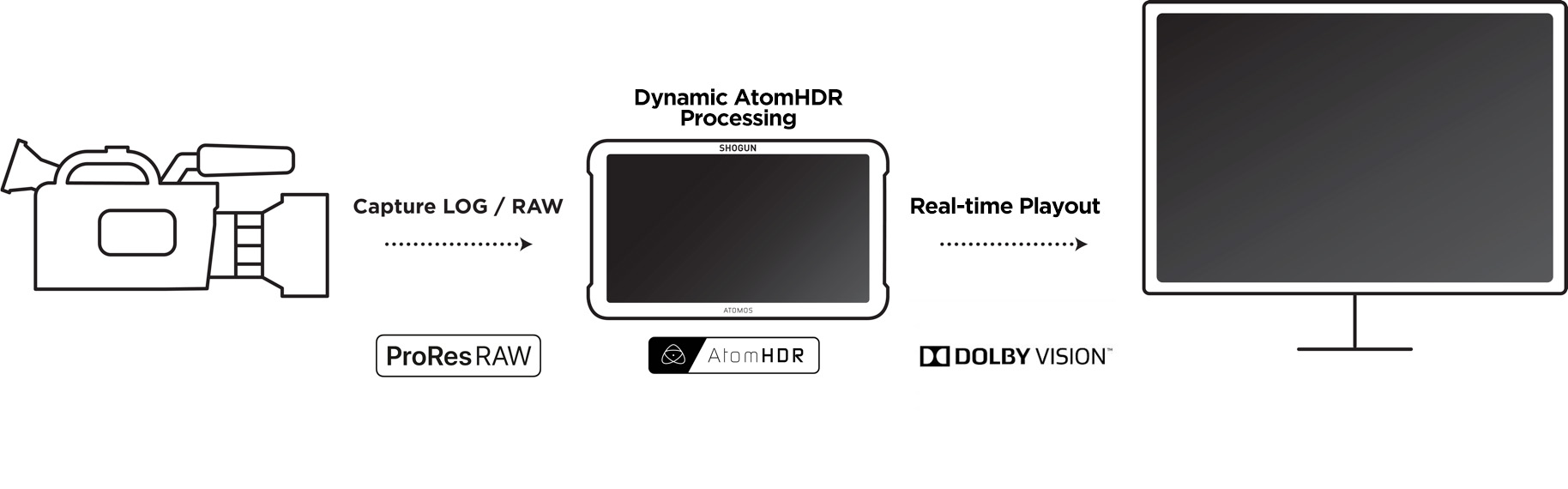

Atomos Shogun 7 is a precision HDR monitor-recorder-switcher designed for the film and video professional. It can be used as either a stand-alone field monitor, recorder and switcher for event, documentary and live in-the-field storytelling; or as a tool for large-scale on-set episodic TV, film and cinema productions where multiple crew members such as focus pullers, grips and cinematographers require a consistent visual reference across the field monitor ecosystem. Shogun 7's portable size lets you monitor, analyze and tag while on set; and check how your content will look in your audience’s home via real-time Dolby Vision output. With Shogun 7 you’re not locked into any format, camera manufacturer or pipeline. It is a completely flexible master recording and production station.
Weight
Without batteries & media 709g / 25oz.
Dimensions (W x H x D mm) 214 x 127 45mm
Construction Polycarbonate ABS
Mounting points 1/4”-20 screw mount. 1x top and 1x bottom
Power
Operating power 10 - 33W
Compatible batteries Atomos NP-F series and supporting accessories
Input voltage (battery) 6.2V to 16.8V
Battery time (based on 2 x 7.4V) 5200mAh - up to 1.5hrs (monitor & record 4K 30p)
  7800mAh - up to 2.2hrs (monitor & record 4K 30p)
DC In 1 x DC in (6.2 - 16.8V)
Touchscreen
Size 7.2”
Resolution 1920 x 1280
PPI 325
Aspect ratio 16:9 native
Color Gamut Up to Wide color gamut (105% DCI-P3)
Look up table (LUT) support 3D LUT (.cube format)
Anamorphic de-squeeze 2x, 1.5x, 1.33x
Technology Dynamic AtomHDR zoned backlight
IPS LCD
Dynamic AtomHDR Technology
Backlight Direct LED
Zones 360 direct backlight individual LEDs
LEDs Wide Color Calibrated D65 or D95
Bit depth 10-bit (8+2 FRC)
Color DCI-P3 105%
Brightness 1500nit (+/- 10%)
Control On the fly real-time brightness analysis for LED control
HDR Conversion Log/RAW to HLG or PQ
HDR Monitoring Technology
Gamma Sony SLog / SLog2 / SLog3 Canon CLog / CLog2 / Clog3 ARRI Log CEI160 / LogCEI200 / LogCEI250 / LogCEI320 / LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600 Panasonic Vlog JVC JLog1 RED Log3G10 / RED LogFilm FujiFilm F-log Nikon N-Log PQ10k HLG
Gamut Sony SGamut / SGamut3 / SGamut3.cine Canon Cinema / DCI P3 / DCI P3+ Nikon Bt2020 Panasonic V Gamut Arri Alexa Wide Gamut Rec709 / BT.2020 JVC RED WideGamut / RED DragonColor / DragonColor2 / RED Color2 / RED Color3 / RED Color4 /
Video Input/Loop Out
HDMI HDMI 1 x HDMI (2.0)
SDI Quad Link 4 x 3G/6G SDI*, 4 x 3G-SDI, 2x 12G single link SDI
Signal Uncompressed true 10-bit or 8-bit 422
(camera dependent)
Genlock Genlock input signal and output signal
Video Output (Play Out)
HDMI 1 x HDMI (2.0)
SDI 2x 4K-SDI 12G or HD-SDI 3G/6G
Signal Uncompressed true 10-bit or 8-bit 422
(playback file dependent)
Video Signal Conversion
HDMI to SDI -
SDI to HDMI -
Audio In/Out (48kHz PCM Audio)
HDMI 2 or 8ch 24-bit, camera dependent
SDI 12ch 48kHz 24-bit
Audio 2ch balanced XLR analogue in/out
Dynamic range >90dB
Max signal level +24dBu
Max analogue gain +52dB
48V Phantom Power for Mic
Headphone out 3.5mm 2ch.
Supported Codecs & Frame Rates (Record & Playback)
Raw to: ProRes RAW
ProRes
CinemaDNG
(CDNG up to 30p only)
Avid DNxHD
Sony^^
FS700, FS-5, FS-7, FS-7MkII		 4K DCI; 24/25/30/50/60p
4K UHD; not supported in camera
2K; 24/25/30/50/60/100/120/200/240p
1080; not supported in camera
Canon
C300MKII/C500 CDNG		 4K DCI; 24/25/30p
4K UHD; 24/25/30p
2K; not supported in camera
1080; not supported in camera
Panasonic
VaricamLT, EVA1		 5.7K DCI; 24/25/30p (EVA1 ProRes RAW only)
4K DCI; 24/25/30/50/60p
4K UHD; 24/25/30/50/60p
2K; 24/25/30/50/60/100/120/200/240p 1080; not supported in camera
Supported base resolution & FPS from cameras 4K DCI: 23.98/29.9/59.94p
4K UHD: 23.98/29.9/59.94p
2K DCI: 23.98/29.9/59.94p
1080p: 23.98/29.9/59.94p
Supported FPS & resolution from gaming consoles and graphic cards 1080p; 24/25/30/50/60/100/120
Onboard Processing
Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown)
60i > 24p (3:2 pulldown)
4K UHD downscale for HD monitoring Yes - Loop-out and playback (Not available in RAW)
Remote Start/Stop
HDMI Auto HDMI Trigger
Supported Protocols - Dolby Vision, Canon, Sony, Atomos Open Standard
SDI SDI trigger camera selectable
Other LANC control - Slave
Playback
Playlist / Genlock / LTC Yes / Yes / Yes
CDNG (Recorded content) No support
ProRes (Recorded content) All recorded files can playback. Playback in slow motion >= 100fps.
DNxHR / DNxHD (recorded content) All recorded files can playback. Playback in slow motion >= 100fps.
Recording
Pre-roll record Yes (HD 8s, 4K 2s)
Custom timelapse Yes*
Supported media 2.5” SSD/HDD compatibility depends on recording format, resolution and frame rate. Visit atomos.com/drives for list of tested and approved drives
Master caddy case Master Caddy II (included)
75mm x 105mm x 12mm
Master caddy dock 2.5” SATA to USB 2.0/3.0
Supported applications Final Cut Pro / Media Composer / Premiere Pro / After Effects / EDIUS / Vegas Pro / Lightworks / Autodesk Smoke
What's In The Box
Accessories included Shogun 7 unit, Master Caddy II x 1,
12V-3A AC power supply, Carry Case
Quick Start guide
Optional extras
Optional extras Accessory Kit: 2 x battery,
1 x charger, 1 x power supply, HPRC case,
USB dock, control cable, Dtap cable,
Master Caddy x 4, Power supply, Sun hood
Power Kit: 2 x battery,
1 x charger, 1 x power supply
Other: Atomos HDMI cable,
Breakout XLR cable, X-Rite i1DisplayPro calibration

All specifications correct when published, subject to E&OE.
24/30/60 frame rates also means 23.98/29.97/59.94 frame rates for all resolution
*Available in future firmware updates
^^ Optional unit (XDCA-FS7) needed for Raw output.”
