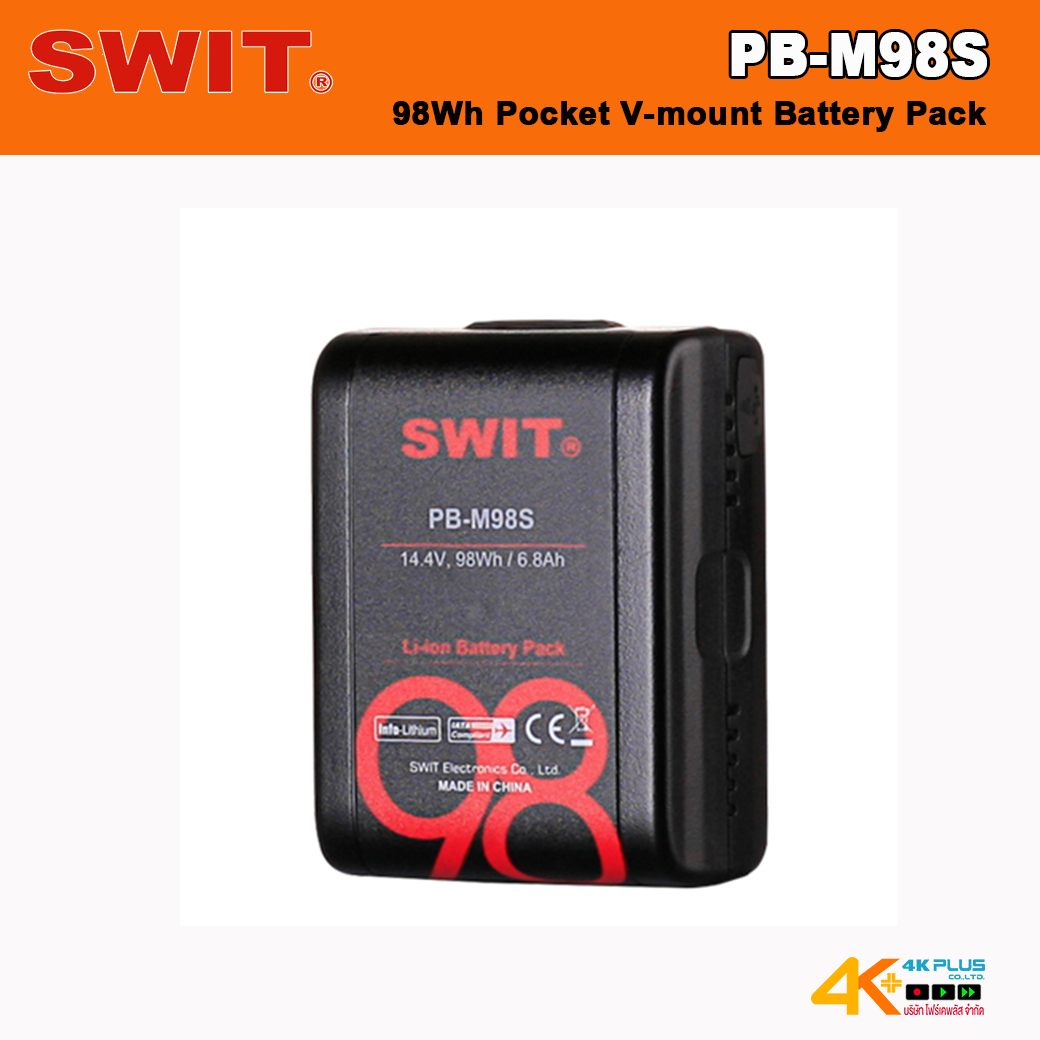

SWIT PB-M98S 14.4V 98Wh Pocket V-mount Battery Pack

Tiny V-mount battery

The brick size V-mount batteries are always too big and heavy for field shootings, especially the handheld stabilizers, focus puller monitor, portable LED panel, or small cameras.
PB-M98S Pocket V-mount battery is designed for the above applications!

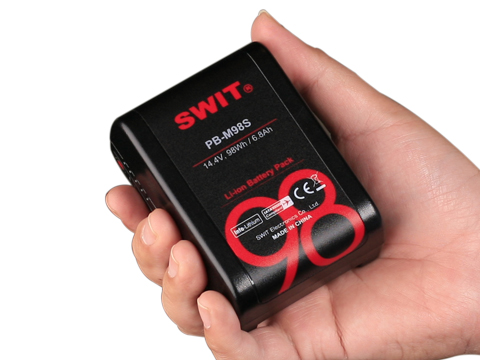

It’s only a DV battery size, with high capacity cells and still reaches 98Wh, and without any compromise on the DC sockets!

98Wh Fly Friendly

PB-M98S consists of 12pcs of high class 18650 battery cells, nominal voltage is 14.4V and reaches 98Wh / 6.6Ah high capacity. You can take this battery in carry-on luggage to board airplane.
The Max constant load is 100W, 8A.

Built-in D-tap and USB

The pocket size PB-M98S still has D-tap and USB sockets built-in.
The D-tap socket share 100W/8A load DC output with the V-mount pins, and support charging input by SWIT PC-U130B2 dual D-tap charger.
The USB socket outputs 5V/2A for smart phone fast charging.

5-LED Power Indicator

PB-M98S has 5-LEDs to indicator remaining power percentage. When remaining power is less than 10%, the last LED will flash automatically to remind changing battery.

SONY&RED Communication

PB-M98S can communicate with both SONY and RED cameras and display digital power info on camera viewfinder.

Wire-Free Internal Tech

PB-M98S has innovative “Wire-Free” internal technic. All the cells, D-tap, USB, power indicator devices are directly soldered onto PCB, no connecting wires, to reduce internal resistance effectively, and make the circuit stable, safe, and reliable.
