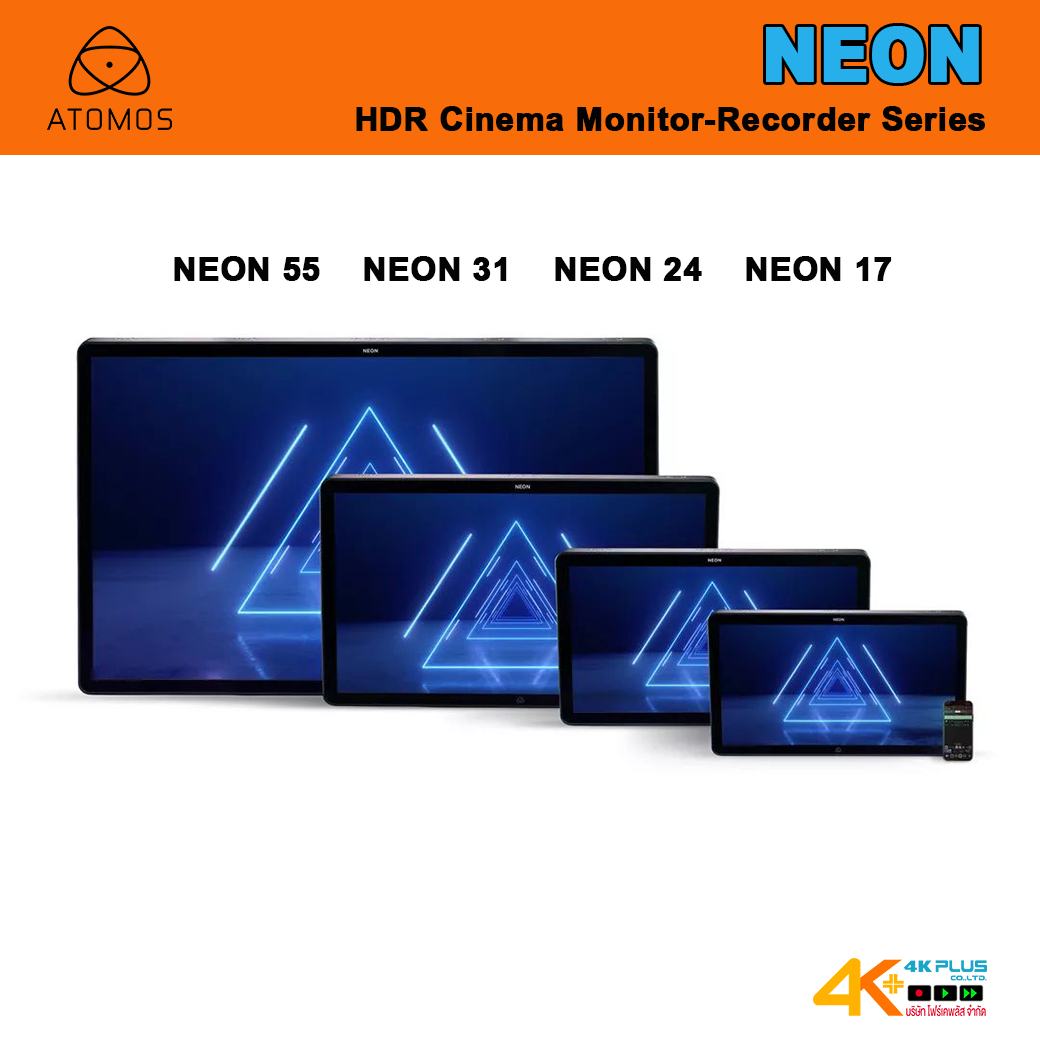

ATOMOS NEON HDR Cinema Monitor-Recorder Series

ATOMOS NEON HDR Cinema Monitor-Recorder Series
ATOMOS NEON HDR Cinema Monitor-Recorder SeriesATOMOS NEON HDR Cinema Monitor-Recorder Series
รหัสสินค้า ATOMOS NEON
หมวดหมู่ RECORDERS
ราคา 0.00 บาท
VAT7% ราคาสินค้ายังไม่รวมภาษีมูลค่าเพิ่ม 7%
สถานะสินค้า Pre-Order
อัพเดทล่าสุด 9 มิ.ย. 2562
เร็วๆนี้
หนังสือรับรองบริษัท
บุ๊คแบ๊งค์
คุ้มครองโดย LnwPay
Tags : จำหน่าย ATOMOS NEON, "ATOMOS NEON ขาย", ตัวแทนจำหน่าย NEON Monitor, ATOMOS NEON ราคา, จอมอนิเตอร์ Atomos, "NEON 55 ขาย", "neon 31 ขาย", "neon 24 ขาย", "neon 17 ขาย"

รายละเอียดสินค้า

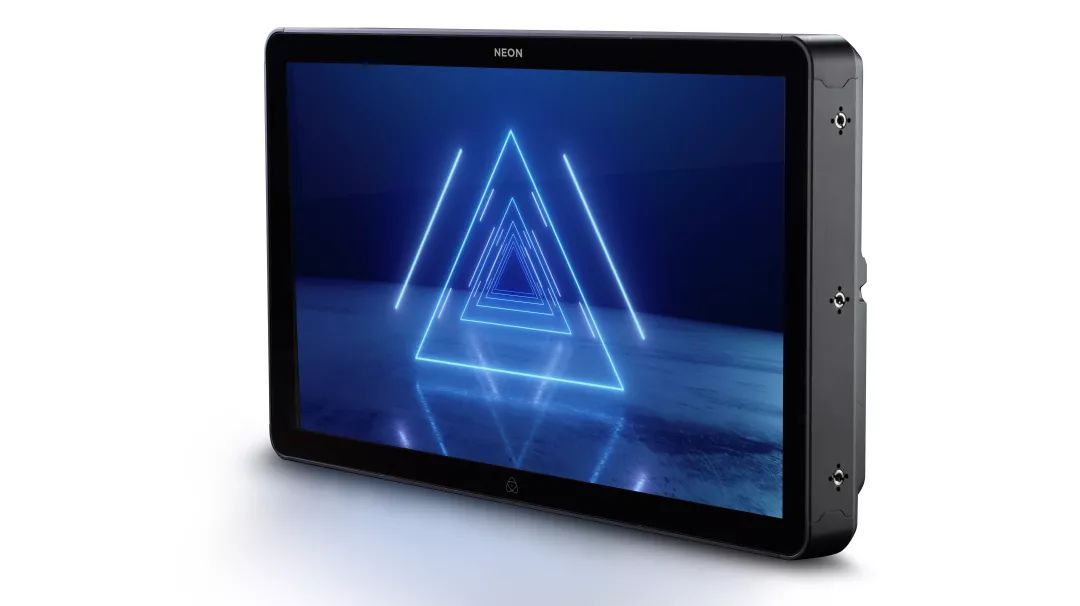

ATOMOS NEON Monitor-Recorder
ATOMOS NEON
HDR Cinema Monitor-Recorder for on-set and in-studio

Tech Specs
Weight
Weight: Neon Monitor
Neon17
Neon24
Neon31
Neon55
4.5kg / 9.92lb
8.6kg / 18.95lb
TBC
TBC
Weight: Master Control Unit 300g / 0.66lb
Dimensions: Neon Monitor
(W x H x D mm)
Neon17
Neon24
Neon31
Neon55

413 x 253 x 71.4mm
594 x 339.7 x 72.5mm
TBC
TBC
Dimensions: Master Control Unit
(W x H x D mm)
151 x 91.5 x 31mm
Construction Aluminium alloy chassis with ABS Polycarbonate back plate
Mounting points Full ARRI compatible, 3 Left, 3 Right, 7 Top, 7 Bottom VESA Mount.
Power
Operating power 10-22W TBC
Power Adaptor TBC
Touchscreen
Size
Neon17
Neon24
Neon31
Neon55
17"
24"
31"
55"
Resolution / PPI
Neon17
Neon24
Neon31
Neon55

2048 x 1080 / 142ppi
4096 x 2160 / 193ppi
4096 x 2160 / 147ppi
3840 x 2160 / 84ppi
Aspect ratio
Neon17
Neon24
Neon31
Neon55
17:9
17:9
17:9
16:9
Color Gamut DCI-P3 100% Coverage, D65 or D93 White Point, Calibrated
Look up table (LUT) support 1D/3D LUTs (.cube format)
Anamorphic de-squeeze 2x, 1.5x, 1.33x, Panasonic 4:3
Calibration Calibration to DCI-P3 with optional calibration unit
User Interface iOS App via Bluetooth, IR Remote control of focus peaking, exposure, calibration, zoom, waveform monitor, RGB monitor, vector scope
Dynamic AtomHDR Technology
Backlight Direct LED
Zones
Neon17
Neon24
Neon31
Neon55
128 direct backlight individual LEDs
512 direct backlight individual LEDs
512 direct backlight individual LEDs
512 direct backlight individual LEDs
LEDs Wide Color Calibrated D65 or D95
Bit depth True 10-bit
Color DCI-P3 100% coverage
Brightness 1000nit (+/- 10%)
Control Dynamic backlight control
HDR Conversion Log/RAW to HLG or PQ
HDR Monitoring Technology
HDR Monitoring Log/RAW to HLG or PQ
SDR Monitoring Native Rec.709, Log/RAW to Rec.709
Supported input Log/Gamma Sony SLog / SLog2 / SLog3
Canon CLog / CLog2 / Clog3
ARRI Log CEI160 / LogCEI200 / LogCEI250 /
LogCEI320 /
LogCEI400 / LogCEI500 / LogCEI640 / LogCEI800 / LogCEI1000 / LogCEI1280 / LogCEI1600
Panasonic Vlog
JVC JLog1
RED Log3G10 / RED LogFilm
FujiFilm F-log
PQ1000 up to PQ10,000
HLG
Supported input Log/Gamut Sony SGamut / SGamut3 / SGamut3.cine
Canon Cinema / DCI P3 / DCI P3+
Nikon NLog
Panasonic V Gamut
Arri Alexa Wide Gamut
Rec709 / BT.2020
JVC
RED WideGamut / RED DragonColor / DragonColor2 /
RED Color2 / RED Color3 / RED Color4 /
Supported input RAW/Gamma Sony SLog / SLog2 / SLog3
Canon CLog / CLog2 / Clog3
Panasonic Vlog
Supported input RAW/Gamut Sony SGamut / SGamut3 / SGamut3.cine
Canon Cinema / DCI P3 / DCI P3+
Nikon NLog
Panasonic V Gamut
Video Output Rec.709, HLG, PQ, LUT
Video Input/Loop Out
HDMI 1 x HDMI 2.0b
SDI
SDI Expansion Module required		 2 x configurable BNC
Signal Up to uncompressed true 10-bit
Video Output (Play Out)
HDMI 1 x HDMI 2.0b
SDI
SDI Expansion Module required		 2 x configurable BNC
Signal Up to uncompressed true 10-bit
Video Signal Conversion
HDMI to HDMI 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 4kUHD/4kDCI 24/25/30/50/60
SDI to SDI
SDI Expansion Module required		 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 4kUHD/4kDCI 24/25/30/50/60
HDMI to SDI
Note: No simultaneous HDMI out possible		 720p 50/60, 1080i 50/60, 1080p 24/25/30/50/60/100/120, 4kUHD/4kDCI 24/25/30/50/60
Dolby Vision Tunnelling Selectable on HDMI

Supported Codecs & Frame Rates (Record & Playback)
Video to ProRes / DNxHR Apple ProRes RAW, ProRes HQ, 422, LT AVID DNx, HQX, HQ, SQ, LB, Cinema DNG RAW
Resolution / Frame rate 4K DCI / UHD 24/25/30/50/60p 2K 24/25/30/50/60/100/120p 1080p 24/25/30/50/60/100/120/200/240p 1080i 50/60i, 720p 50/60p
Onboard Processing
Pulldown removal 24/25/30pSF > 24/25/30p (2:2 pulldown) 60i > 24p (3:2 pulldown)
4K DCI > UHD Yes - Loop-out and playback
4K UHD downscaling Yes - Loop-out and playback
HDMI 2 or 8ch 24-bit, camera dependent
SDI
SDI Expansion Module required		 12ch 48kHz 24-bit
Audio Line in / Mic in
Headphone out 3.5mm Headphone out 2ch 48kHz 24-bit
Built-in speakers No
Remote Start/Stop
HDMI Auto HDMI Trigger
Supported Protocols - Canon, Sony
Atomos Open Standard - Panasonic, Nikon, Olympus, Fuji, Leica
SDI SDI trigger camera selectable
Genlock / LTC Yes – Bluetooth / iOS App
Serial Control LANC control - Slave RS232
Playback
Playback Features Jog control, slow motion, scheduled, tag-based scheduling
Recording
Pre-roll record HD 8s, 4K 2s
Project Metadata AtomOS on unit and iOS App input
Supported media Support for AtomX SSDmini and MasterCaddy II with 2.5” SSD/HDD. Please visit atomos.com/drives for list of approved drives.
Master caddy dock 2.5” SATA to USB 2.0/3.0/USB-C 3.1
Supported applications All popular NLE applications, 3D applications
XML support FCPX XML native, FCPX/Adobe limited supported with 3rd party conversion tools
What's In The Box
Included Neon Series Unit, Master Control Unit, IR Remote,
Master Caddy II x 1, 12V-3A AC power supply,
AtomX SDI Expansion Module, Feet,
Quick Start Guide
Road Case (for 17", 24" & 31" models)
Optional extras
Optional extras Atomos HDMI cables, Master Caddy Dock, X-Rite, i1DisplayPro calibration

All specifications correct when published, subject to E&OE.
24/30/60 frame rates also means 23.98/29.97/59.94 frame rates for all resolution
*Available in future firmware updates
^^ Optional unit (XDCA-FS7) needed for Raw output.”
