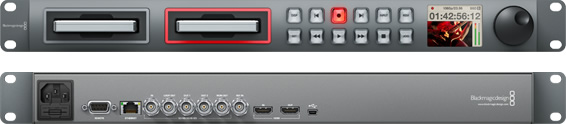

Blackmagic HyperDeck Studio เครื่องบันทึกวิดีโอ HD

BlackmagicDesign HyperDeck Studio

        SSD video recorder  HyperDeck Studio records and plays back uncompressed QuickTime, compressed Apple ProRes 422 (HQ), ProRes 422, ProRes 422 (LT), ProRes 422 (Proxy) or compressed Avid DNxHD MXF files. HyperDeck Studio has a familiar deck style user interface, removable SSD disks and serial control for a 21st century broadcast deck.

Tech Specs

SDI Video Input : 1 x 10-bit SD/HD/3G-SDI switchable.

SDI Video Output : 2 x 10-bit SD/HD/3G-SDI switchable.

SDI Video Output : 1 x 10-bit SD/HD/3G-SDI switchable Loop Output.

SDI Video Output : 1 x 10-bit SD/HD/3G-SDI switchable Monitor Output.

HDMI Video Input : 1 x HDMI type A connector

HDMI Video Output  : 1 x HDMI type A connector

SD Format Support

625/25 PAL and 525/29.97 NTSC. 480p60 and 576p50 via HDMI only.

HD Format Support

720p50, 720p59.94, 720p60, 1080i50, 1080i59.94, 1080i60, 1080PsF23.98, 1080PsF24, 1080PsF25, 1080PsF29.97, 1080PsF30, 1080p23.98, 1080p24, 1080p25, 1080p29.97, 1080p30.
